EdgeCore 4610-54T-O-AC-B Open Networking Datacenter Switch AS4610-54T, 48 x 100/1000BASE-T

Your rating:
Average rating
product review for EdgeCore 4610-54T-O-AC-B Open Networking Datacenter Switch AS4610-54T, 48 x 100/1000BASE-T
( 0 / 5 ) 0 ratings
EdgeCore 4610-54T-O-AC-B
This image may differ from the desired article.

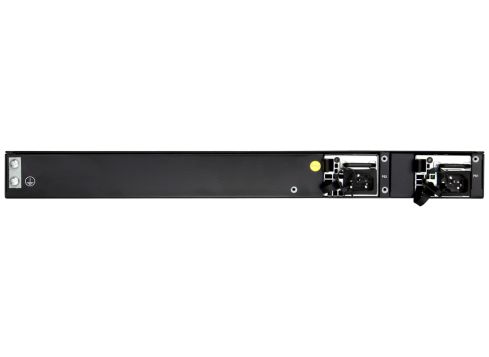

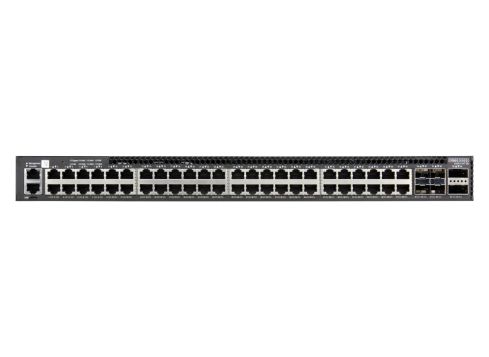

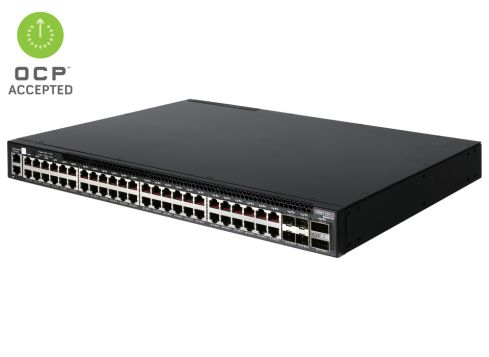

EdgeCore 4610-54T-O-AC-BEdgeCore 4610-54T-O-AC-BEdgeCore 4610-54T-O-AC-B
2.277,00 EUR
( 2.709,63 EUR incl. VAT )
≈ £1,896.74  |  ≈ $2,497.87
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x EdgeCore 4610-54T-O-AC-B Open Networking Datacenter Switch AS4610-54T, 48 x 100/1000BASE-T
Datasheet:file_download Download
Lieske Part No.:2142342
Mfg Part No: 4610-54T-O-AC-B
Weight:7.26 kg

Product information for EdgeCore 4610-54T-O-AC-B:

The EdgeCore AS4610-54T is a manageable Layer-3 Ethernet switch designed for use in data centers and enterprise networks. It is designed for rack mounting and offers 48 Gigabit RJ45 ports (10/100/1000BASE-T), four 10-Gigabit SFP+ uplink ports, and two 20-Gigabit QSFP+ stacking ports. The hardware is based on a Broadcom Helix 4 ASIC and features an integrated dual-core ARM Cortex-A9 processor with a 1 GHz clock frequency. The switching capacity is 128 Gbit/s, and the forwarding rate is 191 Mpps. The devices are equipped with 2 GB DDR3 SDRAM and 8 GB NAND flash, supporting a MAC address table with 96,000 entries. The device is fitted with two redundant, hot-swap-capable AC power supplies, supporting an input voltage of 100–240 V AC at 50–60 Hz. Airflow follows a rear-to-front principle, with two fixed system fans ensuring cooling. The height is 1 HE, with dimensions of 44 cm (W) × 35 cm (D) × 4.5 cm (H), and a weight of 5.53 kg. The operating temperature ranges from 0 to 45 °C, and the relative humidity during operation is 5–95 %, non-condensing. The device is pre-configured with the Open Network Install Environment (ONIE) to automatically install compatible network operating systems such as Cumulus Linux (from r2.5.4), PicOS (from r2.6.2), or FlexSwitch by SnapRoute. However, compatibility with Cumulus Linux is limited to the AS4610-54T v1 and AS4610-54P v1 models. The devices are suitable for use as Top-of-Rack switches or IPMI switches.

Applications
The AS4610-54T is designed for use in data centers and enterprise networks, particularly as a Top-of-Rack switch, where it connects servers and storage devices within the rack via 1 GbE and links to the spine network via 10 GbE uplinks. The stacking function via the QSFP+ ports allows multiple switches to be linked into a logical unit, with stacking capability depending on the network operating system implementation. The devices can also be used as IPMI switches to enable remote server management.

Features and Specifications in Detail
The device features 48 RJ45 ports for 10/100/1000BASE-T connections, suitable for connecting end devices such as PCs, servers, or storage systems. The four SFP+ uplink ports support 10 GbE (DAC, 10GBASE-SR/LR/ER/LRM) or 1 GbE (1000BASE-T/SX/LX), enabling flexible connections to higher network layers. The two QSFP+ stacking ports allow stacking of multiple switches, with the maximum stacking width depending on the network operating system implementation. The hardware is equipped with a Broadcom Helix 4 ASIC, ensuring high switching performance. The integrated CPU enables processing of network protocols and control of switch functions. The memory resources (2 GB RAM, 8 GB flash) are sufficient for running complex network operating systems.

Technology Explained Simply
The switch operates at Layer 3, enabling route-based forwarding of data packets between different networks. The switching capacity of 128 Gbit/s and forwarding rate of 191 Mpps ensure high throughput performance. The redundant power supply with two hot-swap-capable AC power supplies increases availability, as a power supply failure can occur without interrupting the network connection. The rear-to-front airflow principle ensures efficient cooling, with air entering from the rear and exiting from the front. The ONIE software enables flexible installation of various network operating systems, making the switch suitable for different network environments.

Compatibility and Accessories
The switch is pre-configured with ONIE and supports installation of network operating systems such as Cumulus Linux (from r2.5.4), PicOS (from r2.6.2), and FlexSwitch by SnapRoute. However, compatibility with Cumulus Linux is limited to the AS4610-54T v1 and AS4610-54P v1 models. The devices are designed for use in rack systems and feature two front rack mounting ears.

Installation and Mounting
The switch is designed for mounting in a 19-inch rack and requires 1 HE of height. Mounting is done via the two front rack mounting ears. Installation is performed via ONIE, allowing network operating systems to be loaded automatically. Power supply is provided by the two redundant AC power supplies, supporting an input voltage of 100–240 V AC at 50–60 Hz. The rear-to-front airflow requires adequate ventilation within the rack to ensure sufficient cooling.

Operational Advantages
The AS4610-54T offers a cost-effective, bare-metal infrastructure for data centers. The redundant power supply and hot-swap capability of the power supplies increase availability. The high switching capacity and support for Layer-3 functions enable flexible network design. ONIE support provides flexibility in choosing the network operating system. The devices are designed for environments with an operating temperature of 0 to 45 °C and relative humidity of 5 to 95 % (non-condensing). The warranty period is 3 years.

General
Ethernet ports48 x 10/100/1000BASE-T RJ45
Uplink ports4 x 10G SFP+
Stacking ports2 x 20G QSFP+
Switching capacity128 Gbit/s
Forwarding rate191 Mpps
ProcessorDual-Core ARM Cortex-A9 1 GHz
Main memory2 GB DDR3 SDRAM
Flash memory8 GB
Network operating system installationONIE
Power supplies2 redundant, hot-swappable AC
Input voltage100-240 V AC, 50–60 Hz
Max. system power consumption92,2 W
Height1 HE
Operation temperature0-45 °C
Relative humidity5-95 % (non-condensing)


Product data sheet
Datasheet for EdgeCore 4610-54T-O-AC-B

Questions & answers

What is the delivery time of EdgeCore 4610-54T-O-AC-B Open Networking Datacenter Switch AS4610-54T, 48 x 100/1000BASE-T?

The article EdgeCore 4610-54T-O-AC-B Open Networking Datacenter Switch AS4610-54T, 48 x 100/1000BASE-T is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of EdgeCore 4610-54T-O-AC-B to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you EdgeCore 4610-54T-O-AC-B Open Networking Datacenter Switch AS4610-54T, 48 x 100/1000BASE-T always at the best possible price. We can give you a discount of 2% on EdgeCore 4610-54T-O-AC-B Open Networking Datacenter Switch AS4610-54T, 48 x 100/1000BASE-T if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
