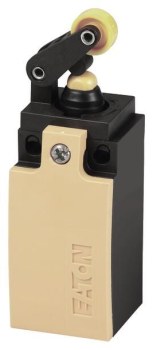

Eaton 266145 LSM-11/L position switch roller lever
|
104,97 EUR 105,01 EUR |
|||||||||||
|
( 124,91 EUR incl. VAT ) ≈ £87.86 | ≈ $115.36 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 2 pieces | |||||||||||
| Lieske Part No.: | 807508 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 266145 | ||||||||||
| UPC/EAN: | 4015082661458 | ||||||||||
| Weight: | 0.358 kg | ||||||||||
| Type: | LSM-11/L | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 266145:
Applications
The LSM-11/L is suitable for applications requiring reliable and safe position detection, particularly in environments with high demands on mechanical durability and environmental resistance. Typical applications include the manufacturing industry, packaging and processing technology, as well as systems with moving parts where positioning is critical for operation. The protection rating IP66 and IP66 makes the switch suitable for outdoor use or in damp, dusty environments.
Functions and Equipment in Detail
The switch features one normally closed contact (1 S) and one normally open contact (1 Ö), designed for controlling electrical circuits. The safety function is ensured by forced opening according to IEC/EN 60947-5-1, meaning the contacts will safely open even in case of mechanical failure or damage to the lever. This is crucial for complying with safety standards in machine building and automation technology. The housing cover is yellow, supporting visual identification of the safety function.
Technology Explained Simply
The housing is made of metal, providing high mechanical stability and resistance to external influences. The connection technology uses Cage Clamp, a proven clamping technique that enables a secure and reliable electrical connection without additional tools. The operating ambient temperature range is from -25 °C to +70 °C, making the switch suitable for a wide range of operating conditions. The protection rating IP66 and IP66 guarantees that the switch is dust-tight and protected against water jets and temporary immersion.
Compatibility and Accessories
Various accessories are available to extend functionality and adapt to specific requirements. These include, for example, the EMS20 membrane screw M20, the LS-X20 screw cap transparent M20 IP66, as well as various M12 connectors and sockets, such as the M12A M12 connector M20 IP66 24 V/4 A or the M12B built-in connector M12 B-coded. Additionally, the LS-XAP adapter plate for LS-Titan and the LS-XTW twin opener for LS-Titan are available to facilitate mounting and functional expansion. The FS-AT guide disc for AT... ensures precise guidance of the lever.
Mounting and Installation
Mounting is performed according to the design standard EN 50047 Form E, enabling standardized fixation in control enclosures. The Cage Clamp connection technology allows for quick and secure wiring without additional tools. The switches are designed for industrial environments and do not require special mounting aids. Installation typically involves inserting into pre-drilled mounting openings and connecting the contacts.
Advantages in Operation
The LSM-11/L offers high reliability through the forced opening function, ensuring the switch safely opens even in case of mechanical failure. The metallic housing construction and protection rating IP66 IP66 ensure long service life even under harsh operating conditions. The Cage Clamp technology reduces installation time and increases the safety of the electrical connection. The yellow color of the housing cover supports visual identification of the safety function during operation.
The item price shown refers to 2 pieces Eaton 266145
| General | |
| Degree of protection | IP66, IP67 |
| Ambient temperature | -25 - +70 °C |
| Construction type | EN 50047 Form E |
| Contacts | 1 make contact (NO), 1 breaker contact (NC) |
| Colour of housing cover | Yellow |
| Housing | Metal |
| Connection type | Cage Clamp |
| Type identifier | LS(M)-. |
| Assortment | Roller lever |
| Basic function | Position switch, safety position switch |
| Description | Long |
| Features | Complete device |
| Forced opening | |
Questions & answers
What is the delivery time of Eaton 266145 LSM-11/L position switch roller lever ?
The article Eaton 266145 LSM-11/L position switch roller lever is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 266145 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 266145 LSM-11/L position switch roller lever always at the best possible price. We can give you a discount of 2% on Eaton 266145 LSM-11/L position switch roller lever if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 266145 LSM-11/L position switch roller lever we can offer you a price of 101,03 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 266145 LSM-11/L position switch roller lever is offered by us in a sales unit of 2 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
