Eaton 215637 EVG-1PHAS/12MODUL Euro-Vario busbar Ie=63A

Your rating:
Average rating
product review for Eaton 215637 EVG-1PHAS/12MODUL Euro-Vario busbar Ie=63A
( 4.2 / 5 ) 13 ratings

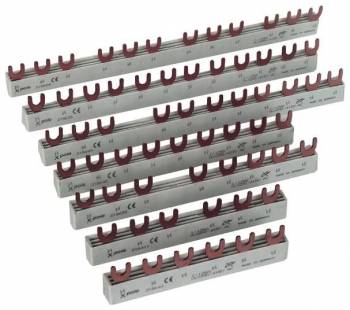

Eaton 215637
This image may differ from the desired article.
Eaton 215637Eaton 215637Eaton 215637
5,50 EUR
incl. 0,42 EUR copper surcharge
( 6,55 EUR incl. VAT )
≈ £4.60  |  ≈ $6.04
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Eaton 215637 EVG-1PHAS/12MODUL Euro-Vario busbar Ie=63A
Datasheet:file_download Download
Lieske Part No.:395597
Mfg Part No: 215637
UPC/EAN: 4015082156374
Weight:0.123 kg
Type:EVG-1PHAS/12MODUL
Graduated prices net
From piecesPrice per pieces
255,31 EUR
505,12 EUR
1004,93 EUR
2504,74 EUR

Product information for Eaton 215637:

The Eaton EVG-1PHAS/12MODUL is a busbar for use in meter enclosures and distributors, specifically designed for use with the switching device series PLS, CLS, PKN, PFIM, PFHM and PFNM. As an Euro-Vario busbar, it offers a standardised, modular solution for power distribution in electrical installations. The busbar is finished in white and features an operating voltage of 500 V, making it suitable for applications in low-voltage systems. With a maximum current rating of 63 A and a cross-section of 10 mm², it is designed for safe operation under load conditions. The fork connection enables a simple and reliable connection to the corresponding switching devices. The length is 210 mm, corresponding to the standard length for 12 module widths and thus ensuring optimal placement in standard distributor boxes.

Applications
The busbar is used in electrical distribution systems, particularly in meter enclosures, where reliable and safe power distribution is required. It is intended for use with the specified switching device series and enables a compact and orderly installation. The design allows for direct mounting without additional end caps, reducing installation time and simplifying the process.

Functions and Equipment in Detail
The fork connection ensures a secure and mechanically stable connection to the switching devices. The connection is designed to provide high electrical conductivity while also offering mechanical strength. The maximum current rating of 63 A is sufficient for most distribution tasks in low- and medium-voltage systems. The operating voltage of 500 V covers the typical range for low-voltage systems. The busbar is designed for 12 module widths, enabling standardisation within distributor boxes. The white colour matches the standard colour for electrical components in distributors and ensures a uniform visual appearance.

Technology Explained Simply
The busbar functions as a central power distribution unit, supplying multiple switching devices with electricity. The fork connection is a proven connection system that ensures a secure and durable electrical connection. The operating voltage of 500 V means the busbar is designed for systems operated up to this voltage. The current rating of 63 A is the maximum load the busbar can transmit continuously without thermal overload or risk to electrical safety. The length of 210 mm corresponds to the standard length for 12 module widths, enabling easy integration into standard distributor boxes.

Compatibility and Accessories
The busbar is specifically developed for use with the switching device series PLS, CLS, PKN, PFIM, PFHM and PFNM. These series are widely used in electrical installations and enable modular and flexible distribution. The busbar requires no end caps, simplifying installation and reducing the number of required components.

Mounting and Installation
Mounting is done by direct installation into the distributor box, where the busbar is secured at the designated mounting points. The fork connection enables a simple and secure connection to the switching devices. Installation is performed without additional end caps, reducing installation time. The busbar is designed for single-pole applications, meaning it is suitable for distributing phase conductors in single-phase systems. Installation is typically carried out by electrical contractors in accordance with applicable regulations and standards.

Operational Advantages
The Euro-Vario busbar provides a standardised and modular solution that simplifies the installation and maintenance of distributors. The fork connection ensures a reliable electrical connection that remains stable even under load. The maximum current rating of 63 A and the operating voltage of 500 V cover most applications in electrical installations. The length of 210 mm corresponds to the standard for 12 module widths, enabling easy integration into existing systems. The elimination of end caps reduces installation time and the number of required components, simplifying maintenance and servicing.

Features
Product colourWhite
Operating voltage500 V
Number of poles1
Connection typeFork connection
Cross-section10 mm²
Maximum current63 A
Weight & dimensions
Length210 mm


Please note...
This article contains a copper surcharge of 0,42 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Eaton 215637, EAN: 4015082156374
