Eaton 167894 FRCDM-63/4/003-G/B digital residual current circuit breaker 63 A 4-pole 30 mA type G/B

Your rating:
Average rating
product review for Eaton 167894 FRCDM-63/4/003-G/B digital residual current circuit breaker 63 A 4-pole 30 mA type G/B
( 4.6 / 5 ) 28 ratings

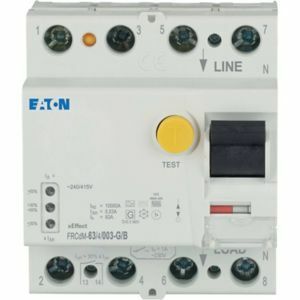

Eaton 167894
This image may differ from the desired article.
Eaton 167894Eaton 167894
1.053,27 EUR 1.097,62 EUR
( 1.253,39 EUR incl. VAT )
≈ £881.59  |  ≈ $1,157.54
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >25 pieces
1x Eaton 167894 FRCDM-63/4/003-G/B digital residual current circuit breaker 63 A 4-pole 30 mA type G/B
Datasheet:file_download Download
Lieske Part No.:276827
Mfg Part No: 167894
UPC/EAN: 4015081644704
Weight:0.353 kg
Type:FRCDM-63/4/003-G/B
Graduated prices net
From piecesPrice per pieces
2911,08 EUR
4768,89 EUR
6626,70 EUR
8484,50 EUR

Product information for Eaton 167894:

The residual current circuit breaker FRCDM-63/4/003-G/B from Eaton is a 4-pole circuit breaker for industrial and extended commercial applications. It is designed for use in electrical distributions where high safety against dangerous fault currents is required. With a rated current of 63 A and a rated voltage of 415 V, it covers typical requirements in industrial and commercial environments. The breaker features a switching capacity of 10000 A, making it suitable for installations with high short-circuit currents, especially when combined with a pre-fuse.

Applications

The circuit breaker is designed for use in electrical installations that require high safety standards for fault current disconnection. It is particularly suitable for industrial environments, such as production plants, machine controls, or lighting systems in large halls. The 4-pole design enables protection of 3-phase systems with neutral conductor, which is common in many industrial distributions. The operating temperature range of -25 °C to 40 °C makes it suitable for outdoor installations or rooms with fluctuating temperatures, provided environmental conditions remain within these limits.

Functions and Equipment in Detail

The breaker is designed as a residual current circuit breaker (RCCB) and trips at a fault current of 0.03 A (30 mA). This value is typical for protection against dangerous touch voltages and meets personal protection requirements in many applications. The switching capacity of 10000 A (10 kA) ensures the breaker can safely disconnect even under high short-circuit currents, with the note “with pre-fuse kA” indicating that short-circuit resistance applies under the condition of a pre-installed fuse. The protection rating IP20 protects against finger contact and solid foreign objects, but not against splashing water or dust – therefore, it is intended for use in enclosed switchgear or indoor environments.

Technology Explained Simply

The breaker operates on the principle of residual current protection: it monitors current flow in all conductors (three phases and neutral conductor) and detects when current leaves the system, for example due to insulation failure or contact with earth. When a difference of 30 mA is detected between incoming and outgoing current, the breaker automatically trips. The 4-pole design ensures that all conductors, including the neutral conductor, are disconnected, providing complete isolation of the power supply. Dimensions of 70 mm (width), 70.5 mm (depth), and 80 mm (height) conform to the standard for modular installation in enclosures, enabling compact mounting.

Compatibility and Accessories

To extend functionality, various accessory modules can be used. These include the re-closing device Z-FW-LP (230 VAC) and the remote test module Z-FW/003 (0.03 A), which enables remote testing of the breaker. The remote control module Z-FW-MO allows the breaker to be operated remotely into ON, OFF, or TEST positions. Additionally, auxiliary switches (Z-HK) and trip signal switches (Z-NHK) are available to indicate the breaker’s status or integrate it into control systems. These modules expand the breaker’s application possibilities in complex automation systems.

Mounting and Installation

The breaker is designed for modular installation in standard switchgear. Its dimensions correspond to the 1-module format, enabling easy installation in existing switchgear. Mounting typically occurs in an enclosure, taking into account environmental conditions (temperature, pollution degree 2). Pollution degree 2 means the breaker is suitable for environments where no heavy contamination from solid dust or dirt occurs, but occasional contamination is possible.

Advantages in Operation

The breaker provides reliable disconnection at fault currents of 30 mA, ensuring high safety for personnel and equipment. The high switching capacity of 10000 A ensures safe operation even under high short-circuit currents. The 4-pole design enables protection of complete 3-phase systems, and the modular design allows flexible expansion with accessories. The operating temperature range of -25 °C to 40 °C makes it suitable for a wide range of operating conditions without requiring additional cooling or heating. The IP20 protection rating is sufficient for use in enclosed switchgear, provided the environment is not wet or dusty.

Residual current circuit breaker, 4-pole, rated current 63 A, switching capacity 10000 A, IP20, fault current 30 mA are the key features defining the breaker for its intended application. The combination of safety, reliability, and expandability makes it a suitable device for industrial and commercial distributions.

Features
Circuit breaker typeResidual-current device
Breaking capacity10000 A
Number of poles4
International Protection (IP) codeIP20
Pollution degree2
Operational conditions
Operating temperature (T-T)-25 - 40 °C
Storage temperature (T-T)-35 - 60 °C
Power
Rated current63 A
Rated voltage415 V
Weight & dimensions
Width70 mm
Depth70.5 mm
Height80 mm


Product data sheet
Datasheet for Eaton 167894, EAN: 4015081644704

Questions & answers

What is the delivery time of Eaton 167894 FRCDM-63/4/003-G/B digital residual current circuit breaker 63 A 4-pole 30 mA type G/B ?

The article Eaton 167894 FRCDM-63/4/003-G/B digital residual current circuit breaker 63 A 4-pole 30 mA type G/B is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 167894 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 167894 FRCDM-63/4/003-G/B digital residual current circuit breaker 63 A 4-pole 30 mA type G/B always at the best possible price. We can give you a discount of 2% on Eaton 167894 FRCDM-63/4/003-G/B digital residual current circuit breaker 63 A 4-pole 30 mA type G/B if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Eaton 167894 FRCDM-63/4/003-G/B digital residual current circuit breaker 63 A 4-pole 30 mA type G/B we can offer you a price of 911,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
