Eaton 153163 EU5C-SWD-EIP-MODTCP Gateway 99 pcs to EtherNet/IP Modbus-TCP

Your rating:
Average rating
product review for Eaton 153163 EU5C-SWD-EIP-MODTCP Gateway 99 pcs to EtherNet/IP Modbus-TCP
( 4 / 5 ) 5 ratings

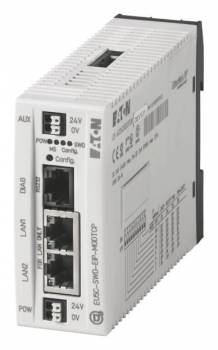

Eaton 153163
This image may differ from the desired article.
Eaton 153163Eaton 153163
348,39 EUR 352,11 EUR
( 414,58 EUR incl. VAT )
≈ £291.60  |  ≈ $382.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 153163 EU5C-SWD-EIP-MODTCP Gateway 99 pcs to EtherNet/IP Modbus-TCP
Lieske Part No.:1132631
Mfg Part No: 153163
UPC/EAN: 4015081498901
Weight:0.213 kg
Type:EU5C-SWD-EIP-MODTCP

Product information for Eaton 153163:

The Eaton EU5C-SWD-EIP-MODTCP is a SmartWire-DT Gateway, specifically developed for integrating SmartWire-DT participants into industrial fieldbus systems. It serves as an interface between the SmartWire-DT network structure and higher-level control systems communicating via EtherNet/IP or MODBUS-TCP. The device enables power and data supply to connected SmartWire-DT participants and switching devices, allowing central control and diagnostics of decentralized components.

Applications
This gateway is designed for use in industrial automation systems, particularly in environments where SmartWire-DT networks are used to control switching devices, sensors, and actuators. It is commonly used in the manufacturing industry, machine building, and plants with decentralized periphery, where reliable and simple integration of field devices into existing networks is required. Support for EtherNet/IP and MODBUS-TCP ensures compatibility with a wide range of control systems and PLCs.

Functions and Features in Detail
The device features an integrated Ethernet switch with a data rate of 10/100 MBit/s, operating as a slave in the network. This enables communication with higher-level control systems supporting EtherNet/IP or MODBUS-TCP. The IP address can be set manually via a DIP switch or assigned automatically via DHCP, providing flexible configuration in various network environments. Up to 99 SmartWire-DT participants can be connected to the gateway, enabling broad coverage of decentralized devices in a plant. A separate serial diagnostic interface supports troubleshooting and maintenance by providing direct access to status information and configuration data.

Technology Explained Simply
The SmartWire-DT Gateway acts as a bridge between the SmartWire-DT network and the higher-level fieldbus. It supplies power to connected participants and simultaneously handles data transmission. Communication occurs via the integrated Ethernet switch, which operates as a slave, meaning it responds to requests from a master system. Support for EtherNet/IP and MODBUS-TCP allows integration into various industrial network environments. The IP address can be configured manually via a DIP switch or dynamically via DHCP, simplifying integration into existing networks. The serial diagnostic interface supports local diagnostics and configuration, especially when a network connection is unavailable.

Compatibility and Accessories
The gateway is compatible with SmartWire-DT networks and can support up to 99 participants. It is designed for use with EtherNet/IP- and MODBUS-TCP-based control systems. As accessories, programming cables such as the EU4A-RJ45-USB-CAB1 are available, enabling local configuration and diagnostics. Additionally, Powerfeed modules such as the EU5C-SWD-PF1-1 or Busrefresh modules such as the EU5C-SWD-PF2-1 can be used to optimize power supply or signal quality in the SmartWire-DT network.

Mounting and Installation
Installation typically takes place in an enclosure or control console. The gateway is connected to participants via the SmartWire-DT network and to the higher-level network via an Ethernet cable. IP address configuration is done either via the DIP switch or via DHCP, depending on the network environment. The serial diagnostic interface can be used for local settings or maintenance. No special tools or additional components are required to put the gateway into operation.

Operational Advantages
The gateway simplifies the integration of decentralized SmartWire-DT participants into existing fieldbus systems. Support for EtherNet/IP and MODBUS-TCP ensures broad compatibility with various control systems. The ability to connect up to 99 participants enables an efficient network structure. The serial diagnostic interface provides an additional option for troubleshooting and configuration, simplifying maintenance and commissioning. Flexible IP addressing via DIP switch or DHCP adapts to various network environments.

General
Product typeSmartWire-DT Gateway
CompatibilityEtherNet/IP, MODBUS-TCP
Number of controllable participants99
Ethernet interface10/100 MBit/s
Operation modeSlave
IP addressingDIP switch or DHCP
Diagnostics interfaceSerial


Questions & answers

What is the delivery time of Eaton 153163 EU5C-SWD-EIP-MODTCP Gateway 99 pcs to EtherNet/IP Modbus-TCP ?

The article Eaton 153163 EU5C-SWD-EIP-MODTCP Gateway 99 pcs to EtherNet/IP Modbus-TCP is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 153163 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 153163 EU5C-SWD-EIP-MODTCP Gateway 99 pcs to EtherNet/IP Modbus-TCP always at the best possible price. We can give you a discount of 2% on Eaton 153163 EU5C-SWD-EIP-MODTCP Gateway 99 pcs to EtherNet/IP Modbus-TCP if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
