Eaton 139572 Z5-70/FF225A motor protection relay 50-70 A 1NO+1NC

Your rating:
Average rating
product review for Eaton 139572 Z5-70/FF225A motor protection relay 50-70 A 1NO+1NC
( 5 / 5 ) 6 ratings

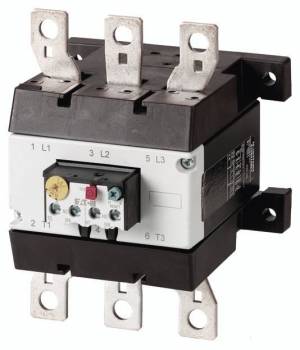

Eaton 139572
This image may differ from the desired article.
Eaton 139572Eaton 139572
344,86 EUR 351,07 EUR
incl. 7,97 EUR copper surcharge
( 410,38 EUR incl. VAT )
≈ £288.65  |  ≈ $379.00
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 139572 Z5-70/FF225A motor protection relay 50-70 A 1NO+1NC
Lieske Part No.:1236136
Mfg Part No: 139572
UPC/EAN: 4015081363506
Weight:1.585 kg
Type:Z5-70/FF225A
Graduated prices net
From piecesPrice per pieces
4332,23 EUR
8319,59 EUR
12306,96 EUR
16294,33 EUR

Product information for Eaton 139572:

The Z5-70/FF225A motor protection relay from Eaton is a protection device for electric motors in industrial applications. It belongs to the Z5 product series and is specifically designed for direct mounting on power contactors of types DILM185A and DILM225A. The device monitors motor operation and protects it against excessive loads, phase failures, and other disturbances that could cause damage. The operating currents range from 50 to 70 amperes, with protection functions designed according to the standards IEC/EN 60947 and VDE 0660 Part 102.

Applications
This motor protection relay is used in industrial plants where electric motors with a rated current between 50 and 70 A are operated. It is particularly suitable for applications in the manufacturing industry, packaging technology, or conveyor system control, where reliable motor monitoring is required. The direct mounting on power contactors DILM185A and DILM225A enables a compact and efficient integration into existing control systems.

Functions and Equipment in Detail
The device features a Test/Off button, which allows manual testing of the protection mechanism or switching off the motor. The Reset button enables resetting the relay to the operating state, with the option to choose between manual and automatic operation. The free release ensures that the motor is immediately switched off in case of protection activation, without requiring manual intervention. The auxiliary contacts consist of one close contact (1 S) and one open contact (1 Ö), which can be used for additional control or signaling functions.

Technology Explained Simply
The phase failure sensitivity of the relay is calibrated according to IEC/EN 60947 and VDE 0660 Part 102, meaning it reacts to the failure of one or more phases in a three-phase power network. This protects the motor from uneven loading and potential thermal damage. The protection functions are designed to switch off the motor in case of overload, short circuit, or other disturbances. The protection rating IP00 means that the device is not protected against dust or water and therefore must only be used in enclosed control cabinets or environments without direct exposure to external influences.

Compatibility and Accessories
The motor protection relay is specifically designed for direct mounting on power contactors DILM185A and DILM225A. It is part of the Z5 range and can be combined with various accessories, including pushbutton panels such as M22-XD-R-X0 or M22-XD-R-GB0, unlocking buttons such as M22-DZ-B-GB14, and terminal covers such as Z5/FF225A-XHB-Z. These components allow application-specific adaptation of the operating interface and protection functions.

Mounting and Installation
Mounting is done directly onto power contactors DILM185A or DILM225A in single installation. No additional mounting plate or bracket is required. The direct connection ensures a stable mechanical connection and a reliable electrical connection. Installation is carried out in accordance with the requirements of standards IEC/EN 60947, VDE 0660, UL, and CSA, which guarantee the safety and functionality of the device.

Advantages in Operation
The Z5-70/FF225A motor protection relay offers reliable motor monitoring with integrated protection functions. The combination of Test/Off button, Reset function, and free release enables simple operation and maintenance. The auxiliary contacts allow integration into higher-level control systems. Direct mounting on power contactors reduces space requirements and simplifies installation. Compliance with international standards such as IEC/EN 60947 and UL ensures compatibility and safety in various application environments.

Standards and Approvals
The device complies with standards IEC/EN 60947, VDE 0660, UL, and CSA. These approvals guarantee the electrical safety, functionality, and reliability of the motor protection relay in industrial applications. Compliance with these standards is essential for market approval and integration into safety-critical installations.

Protection Rating and Operating Conditions
The protection rating IP00 means that the device is not protected against external influences such as dust or moisture. It must therefore be installed exclusively in enclosed control cabinets or in environments without direct exposure to water, dust, or mechanical impacts. Operating temperature and other environmental conditions must comply with the requirements of the standards to ensure proper function.

General
Degree of protectionIP00
Operating current range50-70 A
Auxiliary contacts Normally open (NO)1
Auxiliary contacts normally closed (NC)1
Mounting typeDirect mounting
Application typeSeparate positioning
Phase failure sensitivityIEC/EN 60947, VDE 0660 Part 102
Standards and regulationsIEC/EN 60947, VDE 0660, UL, CSA
Suitable forDILM185A, DILM225A
FunctionsTest/Off button, Reset button Manual/Auto, Free release


Please note...
This article contains a copper surcharge of 7,97 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
