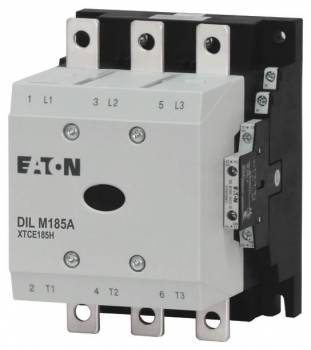

Eaton 139540 DILM185A/22(RDC24) power contactor 90 kW/400 VAC3
|
1.228,35 EUR 1.274,50 EUR |
|||||||||||
|
incl. 14,81 EUR copper surcharge ( 1.461,74 EUR incl. VAT ) ≈ £1,037.96 | ≈ $1,373.30 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 242357 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 139540 | ||||||||||
| UPC/EAN: | 4015081363186 | ||||||||||
| Weight: | 3.982 kg | ||||||||||
| Type: | DILM185A/22(RDC24) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 139540:
Power contactor, Application: Power contactor for motors, standard devices greater than 170 A, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, plugging, reversing, inching, Connection technology: Screw connection, Rated operating current AC-3 380 V 400 V: Ie= 185 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 337 A, encapsulated: Ith= 245 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 685 A, encapsulated: Ith= 625 A, Max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 55 kW, 380 V 400 V: P= 90 kW, 660 V 690 V: P= 140 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 41 kW, 380 V 400 V: P= 75 kW, 660 V 690 V: P= 102 kW, can be combined with auxiliary switch: DILM1000-XHI., Contact configuration S = normally open: 2 S, Contact configuration Ö = normally closed: 2 Ö, Notes: Integrated protective circuit in the control electronics., 660 V, 690 V or 1000 V: do not reverse directly., Current type AC/DC: direct current operation
Please note...
This article contains a copper surcharge of 14,81 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Eaton 139540 DILM185A/22(RDC24) power contactor 90 kW/400 VAC3 ?
The article Eaton 139540 DILM185A/22(RDC24) power contactor 90 kW/400 VAC3 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 139540 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 139540 DILM185A/22(RDC24) power contactor 90 kW/400 VAC3 always at the best possible price. We can give you a discount of 2% on Eaton 139540 DILM185A/22(RDC24) power contactor 90 kW/400 VAC3 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Eaton 139540 DILM185A/22(RDC24) power contactor 90 kW/400 VAC3 we can offer you a price of 1.201,05 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
