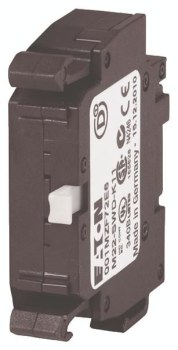

Eaton 115964 M22-SWD-K11 sensor 2 positions changeover
|
21,61 EUR 21,70 EUR |
|
|
( 25,72 EUR incl. VAT ) ≈ £18.09 | ≈ $23.75 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Sales unit: 20 pieces | |
| Lieske Part No.: | 235507 |
|---|---|
| Mfg Part No: | 115964 |
| UPC/EAN: | 4015081157044 |
| Weight: | 0.204 kg |
| Type: | M22-SWD-K11 |
Product information for Eaton 115964:
Applications
This function element is designed for use in industrial plants where status information from mechanical or electrical components is transmitted via a digital bus system. Typical applications include monitoring switching states, such as door open/close, positions of slides, or operating states of machine parts. Front mounting allows for compact installation directly on the control surface or front panel of an enclosure, simplifying installation in existing plants.
Functions and Equipment in Detail
The device features a changeover function with two positions, meaning it closes or opens an electrical contact depending on its state. This function is transmitted digitally via the SmartWire-DT network, allowing the control unit to detect the element’s state in real time. Front mounting is achieved using pre-defined mounting holes or mounting elements attached to the front of the switching unit. Connection to the SmartWire-DT system is made via a specific connector, ensuring communication with the central control unit.
Technology Explained Simply
The SmartWire-DT system is an industrial bus standard that enables communication between sensors, actuators, and the control unit via a single cable. The function element M22-SWD-K11 is an end device that digitally transmits status information. Communication occurs via a serial transmission protocol that aggregates signals from multiple devices over a common cable. Front mounting allows direct integration into the control surface, enabling signal acquisition without additional cabling.
Compatibility and Accessories
The device is specifically developed for use in the SmartWire-DT system and requires a compatible control unit. Suitable accessories include the Powerfeed module EU5C-SWD-PF1-1 and the Busrefresh module EU5C-SWD-PF2-1. The Powerfeed module supplies power to the bus cable, while the Busrefresh module stabilizes signal quality over longer distances. These modules are optional and required depending on the plant configuration.
Mounting and Installation
Mounting is performed by front mounting at the designated location, e.g., on the front panel of an enclosure or control console. Connection to the SmartWire-DT network is made via the integrated connector, which is connected to the bus cable. Configuration is done via the central control unit, with the exact procedure not described.
Advantages in Operation
Integrating the function element into a SmartWire-DT system reduces the number of required cable connections, as both data transmission and power supply occur over a single cable. Front mounting enables compact and clear installation, simplifying maintenance and diagnostics of the plant. Digital status transmission allows precise and reliable monitoring of the affected components.
The item price shown refers to 20 pieces Eaton 115964
| General | |
| Product type | functional component |
| Connection | SmartWire-DT |
| Mounting | Front fastening |
| Function | Changeover contact, 2 positions |
Questions & answers
What is the delivery time of Eaton 115964 M22-SWD-K11 sensor 2 positions changeover ?
The article Eaton 115964 M22-SWD-K11 sensor 2 positions changeover is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 115964 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 115964 M22-SWD-K11 sensor 2 positions changeover always at the best possible price. We can give you a discount of 2% on Eaton 115964 M22-SWD-K11 sensor 2 positions changeover if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 115964 M22-SWD-K11 sensor 2 positions changeover is offered by us in a sales unit of 20 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
