Eaton Power Quality EATS16N ATS 16A Netpack automatic transfer switch 16A, 2xC20 input, 8xC13 content_copy

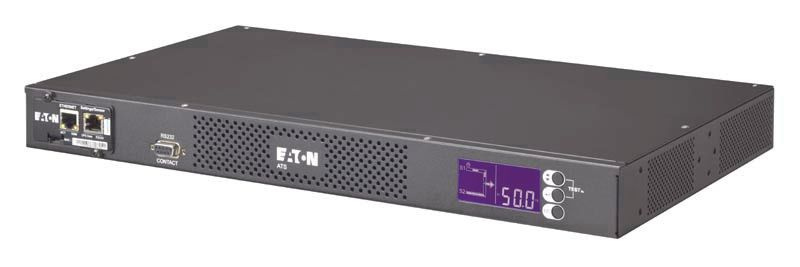

The Eaton Power Quality EATS16N is a rack PDU with integrated automatic transfer switch (ATS) in 1U format, specifically designed for redundant power supply of network devices such as switches and routers. The device enables connection to two independent power sources and automatically switches to the second source as soon as one of them fails. This ensures continuous power supply for critical IT infrastructure, without requiring redundant power supplies in the devices themselves. The design is compact and intended for use in standard 19-inch racks, with horizontal mounting and the entire unit finished in black.

Applications

The EATS16N is intended for environments where high availability of IT systems is required, for example in data centers, server rooms, or critical network infrastructures. The redundant power supply protects against outages caused by power interruptions in one of the two supply lines. The solution is particularly suitable for customers who wish to implement redundant power supply cost-effectively, without relying on expensive redundant power supplies in end devices.

Functions and equipment in detail

The device features two C20 inputs, each of which can be connected to a separate power source. The outputs consist of eight C13 connectors and one C19 connector, providing a total of nine AC outputs. The maximum current is 16 A at a nominal voltage of 230 V, corresponding to a maximum load of 3.84 kW. The integrated LED display provides visual status information about the device's operation. Additionally, an Ethernet LAN connection (RJ-45) is available, enabling network monitoring and remote control. Network control is available for models ATS 30 and ATS 16 Netpack, although the exact network functionality is not specified in detail.

Technology explained simply

The automatic transfer switch (ATS) continuously monitors the two connected power sources. As soon as one of the sources fails or a voltage fluctuation occurs outside the tolerated limits, an immediate and seamless switch to the alternative power source takes place. This process occurs without interruption to the power supply for the connected devices. The use of C20 inputs and C13/C19 outputs enables compatible connection to common IT and network devices. Power supply is provided via the two inputs, with the outputs distributing the load evenly.

Compatibility and accessories

The EATS16N is designed for use with Eaton UPS systems, particularly with models that provide a sinusoidal output voltage. Network monitoring via the RJ-45 connection enables integration into existing network management systems. No specific software or firmware required for use is mentioned.

Mounting and installation

The device is designed as a rackmount module and occupies a height of 1U. Mounting is horizontal in a standard 19-inch rack. A rack mounting kit is included in the delivery scope, simplifying installation. Dimensions are 440 mm (width), 250 mm (depth), and 43 mm (height), with a weight of 3.5 kg. Installation requires connecting the two inputs to separate power sources and linking the outputs to the IT devices to be protected.

Advantages in operation

Using the EATS16N enables cost-efficient redundant power supply, as redundant power supplies in end devices can be omitted. The automatic switching occurs without interruption, increasing the availability of IT systems. The integrated network control and LED display facilitate monitoring and fault diagnosis. The compact design and standard rack compatibility simplify integration into existing infrastructures. Certification according to IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2 and CE ensures safety and compliance with European standards.

Certificates
Certification	CE
Design
Form factor	Rackmount
Rack capacity	1U
Mounting	Horizontal
Product colour	Black
Features
LED indicators
Packaging content
Rack mount kit
Ports & interfaces
AC outlets quantity	9 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports	1
Power
Nominal input voltage	230 V
Maximum current	16 A
Number of phases	1
Weight & dimensions
Width	440 mm
Depth	250 mm
Height	43 mm
Weight	3.5 kg

---
