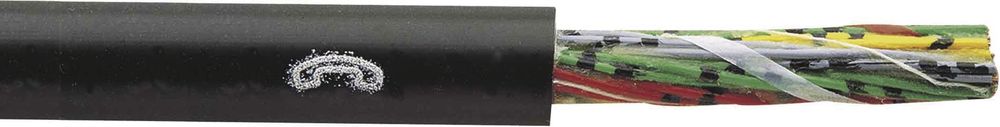

Draka Comteq A 2YF (L) 2Y 50x2x0, 8 sqmm St.III Bd, telephone cables for underground VDE0816
|
14,53 EUR |
|||||||||||
|
incl. 3,99 EUR copper surcharge ( 17,29 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 404375 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | |||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Draka Comteq A-2YF(L)2Y 50 X 2 X :
A 2YF (L) 2Y ... St. Vol III to VDE 0816
Application:
The connection cable in local networks and PBXs to
And for transmitting telephony signals to be laid in
Soil, suitable in cable ducts and pipes.
Building:
Conductor: solid bare copper conductor
0.6 mm or 0.8 mm diameter
Insulation: PE (2Y)
Core identification: with black rings
Stranding: 4 strands to star quad
5 star quad for basic bundle
each 5 or 10 sub units for
Main units and the and
Main beam to cable core
stranded. Jelly filling Seelenbe-
development
Coat: coat layers = aluminum tape
0.2 mm with plastic beiseitig
and coated with the
PE jacket (black) welded
Sheath Marking: continuous telephone handset
meter marking and white
Specifications: 0.6 mm 0.8 mm
Rated voltage: 225 V 225 V
Test voltage: 2000 V 2000 V
Loop resistance: 130 Ohm / km 73.2 ohm / km
Current Rating: 2.5 A 5.1 A
Operating capacity: 52 nF / km 55 nF / km
Insulation resistance: 5 Gx Gx km 5 km
Capacitive coupling K3 (800 Hz, 300 m): 800pF/400pF
Line attenuation (800 Hz) approx: 1.04 dB / km 0.78 dB / km
Temperature range: - 20 ° C - + 50 ° C (during installation)
- 30 ° C - + 70 ° C (after installation)
Bending radius: 10 x cable diameter
Number of pairs + sq mm cable-Ø: 50 x 2 x 0.8
Outer diameter approx: 28.5
Copper content (kg / m%): 50.3
Weight (kg / m%): 86.0
Type: A-2YF (L) 2Y 50 X 2 X 0.8 Quantity: 1 MTR
Type: A-2YF(L)2Y 50 X 2 X
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
