DRAGINO · Sensor · LoRa · Air and water pressure sensor · PS-LB-I5-EU868

The sensors of the Dragino PS-LB series are LoRaWAN pressure sensors for Internet of Things solutions. PS-LB can measure air, water pressure and liquid level and upload the sensor data to the LoRaWAN IoT server via radio.
PS-LB series sensors include thread installation and immersion types, they support different pressure ranges, which can be used for different measurement needs.
The LoRa wireless technology used in the PS-LB allows the device to send data and achieve extremely long ranges at low data rates. It offers spread spectrum communication with extremely long range and high interference immunity with minimal power consumption.
PS-LB supports BLE configuration and over-the-air OTA updates, making it easier for users to use.
PS-LB is powered by an 8500mAh Li-SOCI2 battery, designed for long-term use of up to 5 years.
Each PS-LB is pre-installed with a set of unique keys for LoRaWAN registrations. Register these keys on the local LoRaWAN server and the connection will be established automatically after power on.
This sensor is intended for measuring water pressure in containers. If you want to measure air pressure in pipes, please use item 217627 or 217628.

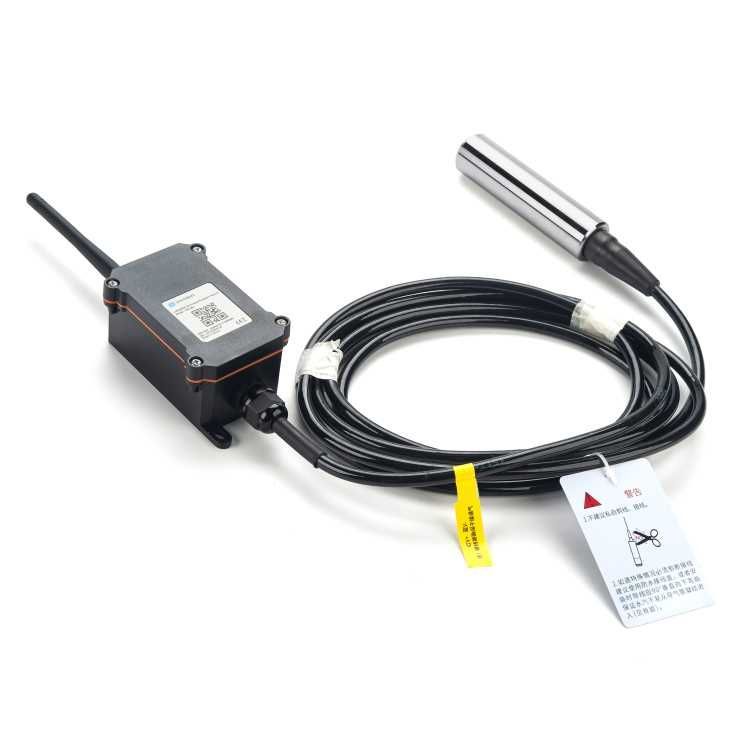

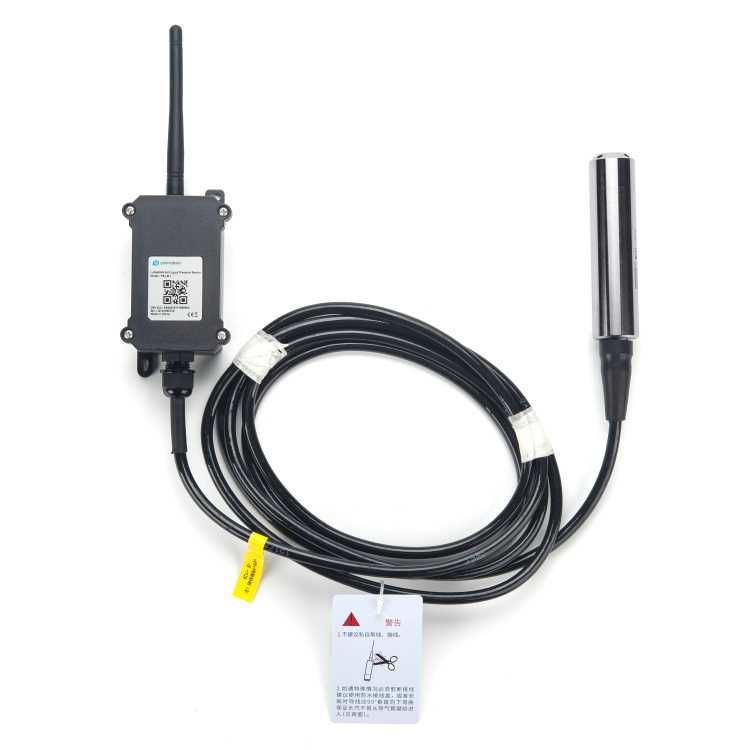

This sensor has an immersion probe with the following properties: Immersion type, IP level of the probe: IP68 Measuring range: Measuring range can be adjusted, up to 100m. Accuracy: 0.2% FS Long-term stability: ±0.2% FS / year Storage temperature: -30°C~80°C Operating temperature: 0°C~50°C Material: 316 stainless steel Features: LoRaWAN 1.0.3 Class A Ultra -low power consumption Measurement of air, gas or water pressure Various pressure ranges available Thread installation type or immersion type Battery level monitoring Bandwidths: EU868 Supports Bluetooth v5.1 and LoRaWAN remote configuration Supports OTA wireless update firmware Uplink at regular intervals Downlink to change configuration 8500mAh Battery for long-term operation Specifications: Micro Controller: MCU: 48Mhz ARM Flash: 256KB RAM: 64KB Common DC Characteristics: Supply voltage: 2.5v ~ 3.6v Operating temperature: -40 ~ 85°C LoRa Spec: Frequency range Band 1 (HF): 862 ~ 1020 Mhz Max +22 dBm constant RF output vs. RX sensitivity: up to -139 dBm. Excellent blocking immunity Current input measurement: Range: 0 ~ 20mA Accuracy: 0.02mA Resolution: 0.001mA Voltage input measurement: Range: 0 ~ 30v Accuracy: 0.02v Resolution: 0.001v Battery: Li/SOCI2 non-rechargeable battery Capacity: 8500mAh Self-discharge: < / Year @ 25°C Max. continuous current: 130mA Max. current: 2A, 1 second Power consumption: Sleep Mode: 5uA @ 3.3v LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
