DRAGINO Sensor LoRa LoRaWAN Liquid Level Sensor LDDS20-EU868
|
64,41 EUR |
|
|
( 76,65 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 1704226 |
|---|---|
| Mfg Part No: | LDDS20-EU868 |
| Weight: | 0.22 kg |
Product information for DRAGINO LDDS20-EU868:
Overview

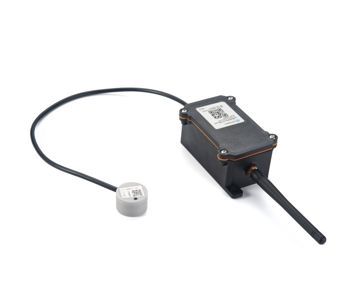

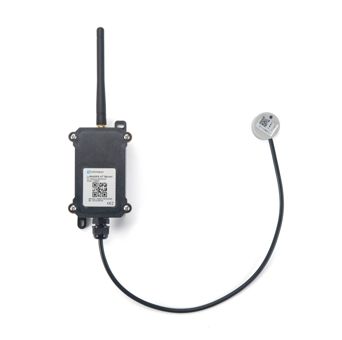

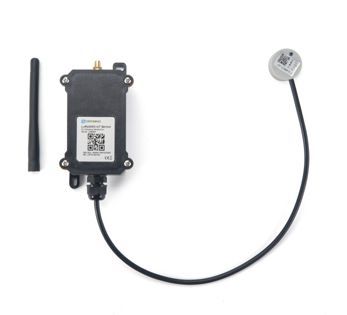

The Dragino LDDS20 is a LoRaWAN ultrasonic liquid level sensor for the Internet of Things solution. It non-contactly measures the height of the liquid in a container without opening the container and sends the value to the IoT server via the LoRaWAN network. The LDDS20 sensor is installed directly under the container to detect the height of the liquid level. The user does not need to open a hole on the container to be tested. Non-contact measurement makes measurement safe, easier and possible for some strict situations. The LDDS20 uses ultrasonic sensor technology to measure distance. LDDS20 is of high accuracy for measuring various liquids such as: toxic substances, strong acids, strong alkalis and various pure liquids in high temperature and high pressure airtight containers. The wireless LoRa technology used in the LDDS20 allows the device to send data and achieve extremely long ranges at low data rates. It offers extremely long-range spread spectrum communication and high interference immunity with minimal power consumption. The LDDS20 is powered by an 8500mA Li-SOCI2 battery and is designed for long-term use of up to 10 years*. Each LDDS20 comes pre-installed with a set of unique keys for LoRaWAN registration. These keys are registered on the local LoRaWAN server and automatically connected after power on if there is network coverage.
FeaturesLoRaWAN 1.0.3 Class A Ultra-low power consumption Level measurement with ultrasonic technology Measure through the container, no contact with the liquid required. Valid level range 20mm - 2000mm Accuracy: ±(5mm+S*0.5%) (S: measured value) Cable length: 25cm Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865 AT commands for changing parameters Switch on uplink periodically Downlink to change the configuration IP66 Waterproof housing 8500mAh battery for long-term use Applications Intelligent solution for liquid control Intelligent liquid gas solution Scope of delivery1 x Dragino LDDS20-EU868 level sensor
Questions & answers
What is the delivery time of DRAGINO Sensor LoRa LoRaWAN Liquid Level Sensor LDDS20-EU868?
The article DRAGINO Sensor LoRa LoRaWAN Liquid Level Sensor LDDS20-EU868 is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DRAGINO LDDS20-EU868 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DRAGINO Sensor LoRa LoRaWAN Liquid Level Sensor LDDS20-EU868 always at the best possible price. We can give you a discount of 2% on DRAGINO Sensor LoRa LoRaWAN Liquid Level Sensor LDDS20-EU868 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
