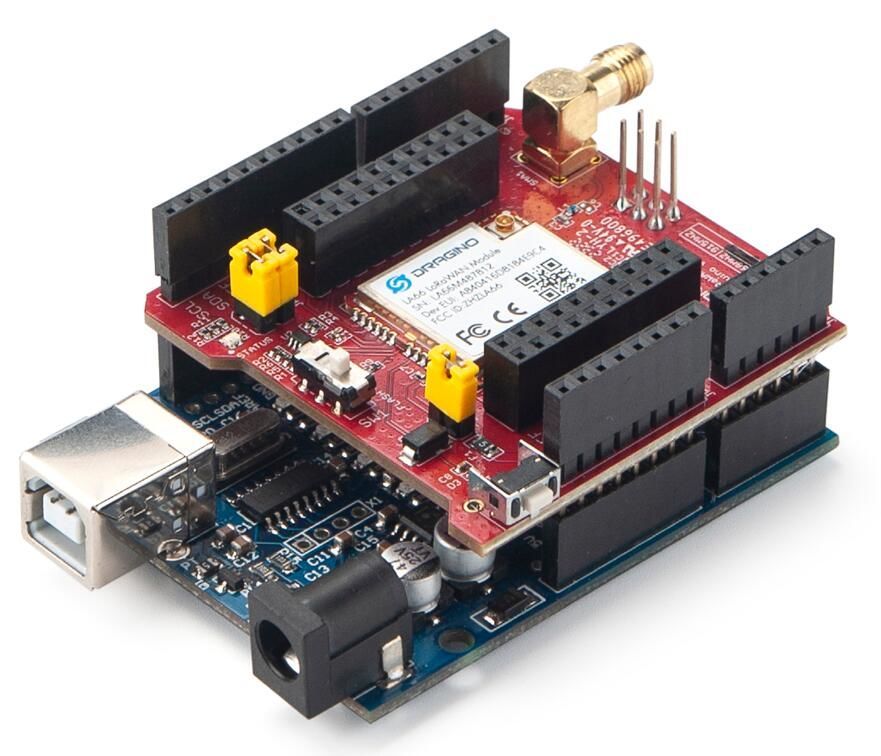

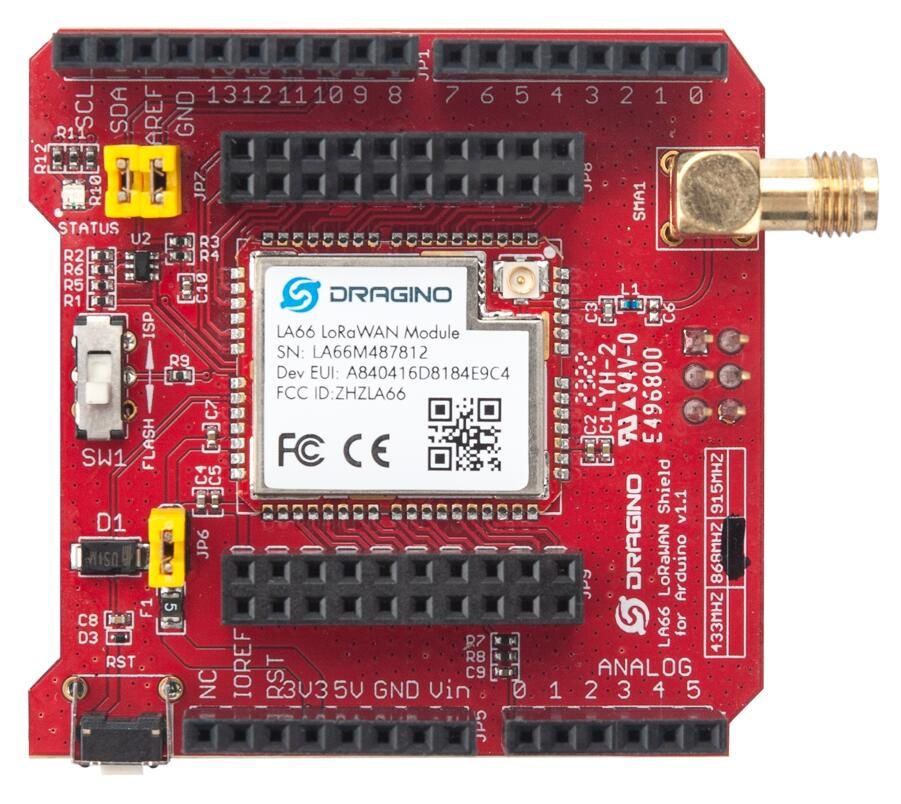

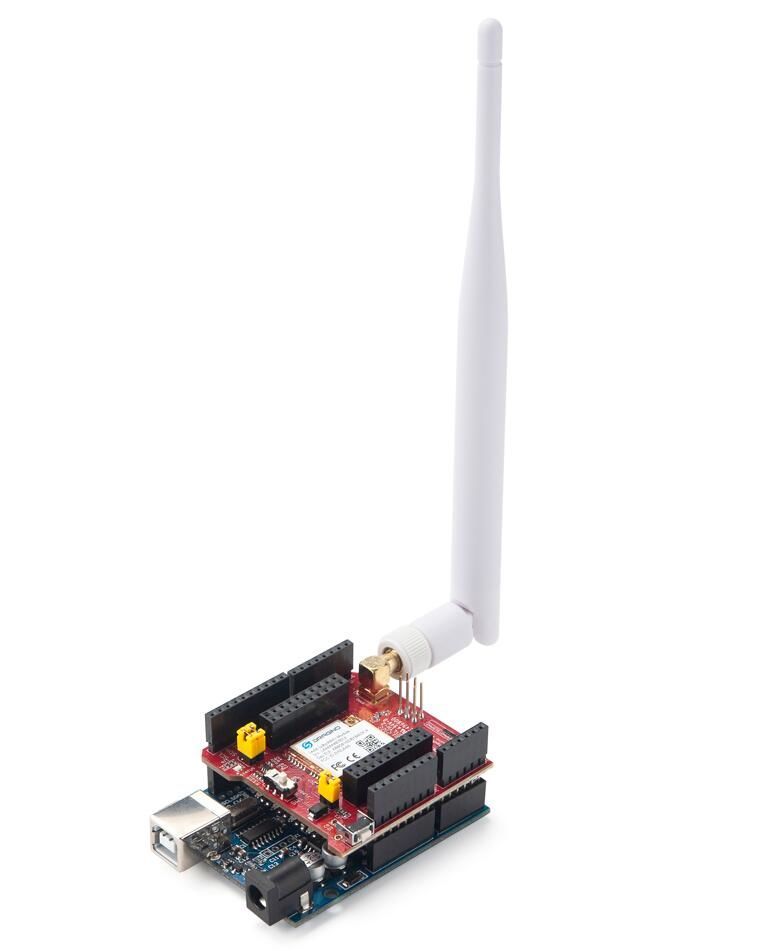

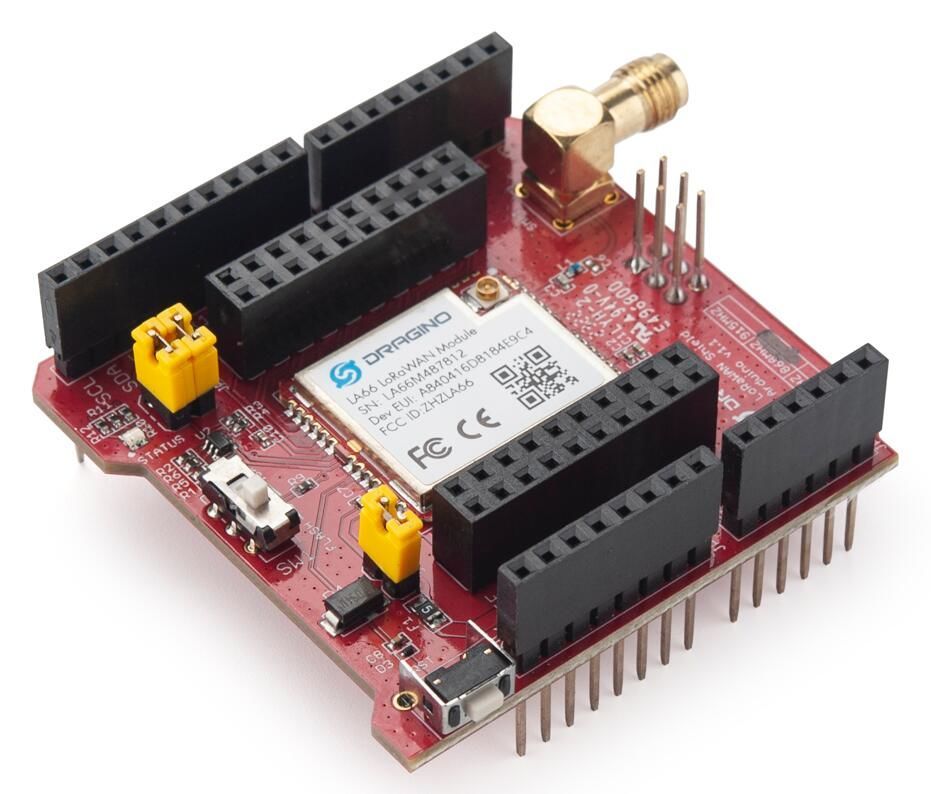

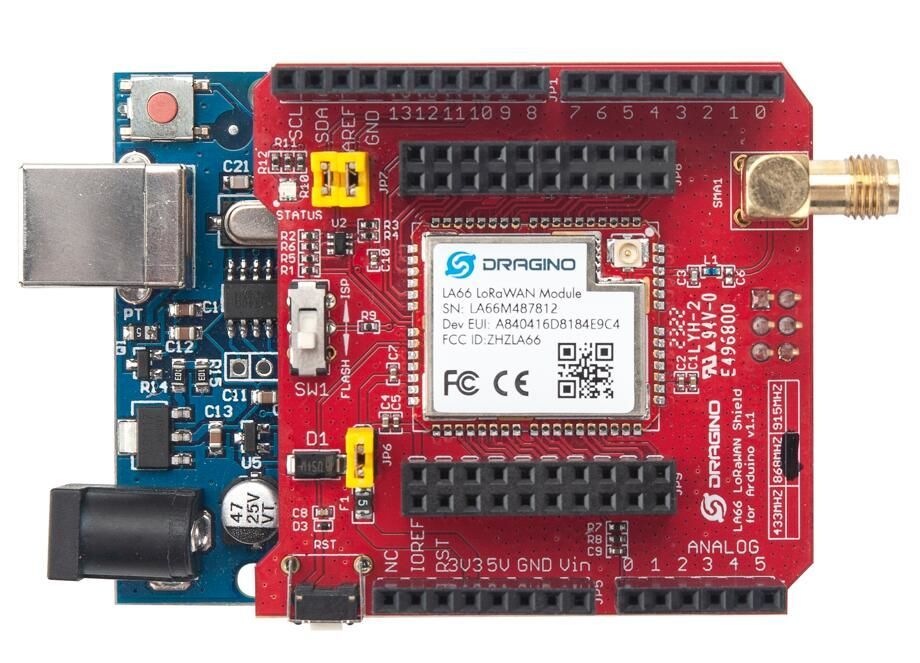

DRAGINO LoRa LA66 Arduino UNO Shield LA66 Shield-EU868
|
-7% 20,68 EUR 22,29 EUR |
|
|
( 24,61 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2041376 |
|---|---|
| Mfg Part No: | LA66 Shield-EU868 |
| Weight: | 0.1 kg |
Product information for DRAGINO LA66 Shield-EU868:
Overview
LA66 LoRaWAN Shield is the Arduino shield based on the LA66. Users can use LA66 LoRaWAN Shield to quickly add LoRaWAN or peer-to-peer LoRa wireless functionality to Arduino projects.
LA66 is a ready-to-use module that includes the LoRaWAN v1.0.3 protocol. The LoRaWAN stack used in the LA66 is used in more than 1 million LoRaWAN devices worldwide. This mature LoRaWAN stack reduces the risk of developing stable LoRaWAN sensors that support different LoRaWAN servers and different country standards. External MCUs can invoke the LA66 via AT command and start data transmission via the LoRaWAN protocol.
Each LA66 module contains a globally unique OTAA key for LoRaWAN registration.
In addition to supporting the LoRaWAN protocol, LA66 also supports the open source peer-to-peer LoRa protocol for non-LoRaWAN applications.
LA66 is equipped with a TCXO crystal, which ensures that the module can provide stable performance even in extreme temperatures.
FeaturesArduino shield based on LoRaWAN module LA66 Supports LoRaWAN v1.0.3 protocol Supports peer-to-peer protocol TCXO crystal to ensure RF performance at low temperatures SMA connector Globally unique OTAA keys. AT command via UART-TTL interface Firmware upgrade possible via UART interface Ultra-long RF range SpecificationsCPU: 32-bit 48 MHz Flash: 256KB RAM: 64KB Input Power Range: 1.8v ~ 3.7v Power Consumption: Scope of delivery1 x LA66 Arduino UNO Shield
Questions & answers
What is the delivery time of DRAGINO LoRa LA66 Arduino UNO Shield LA66 Shield-EU868?
The article DRAGINO LoRa LA66 Arduino UNO Shield LA66 Shield-EU868 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DRAGINO LA66 Shield-EU868 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DRAGINO LoRa LA66 Arduino UNO Shield LA66 Shield-EU868 always at the best possible price. We can give you a discount of 2% on DRAGINO LoRa LA66 Arduino UNO Shield LA66 Shield-EU868 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
