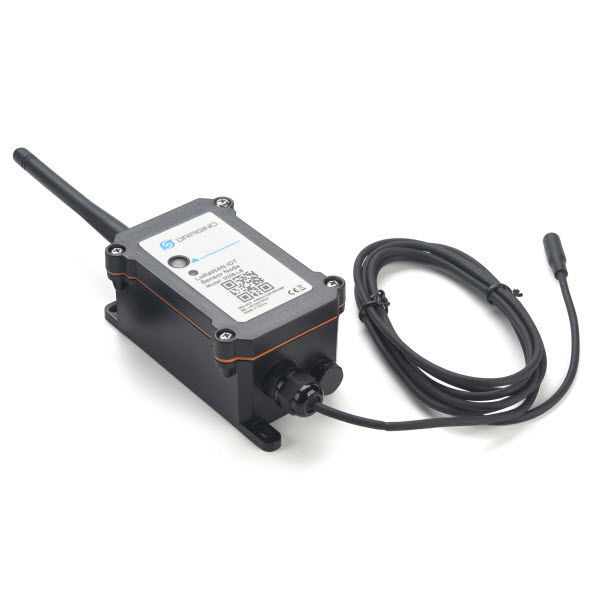

DRAGINO Sensor LoRa Temperature Sensor Node Outdoor D20S-LB-EU868
|
56,57 EUR 57,55 EUR |
|
|
( 67,32 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 2073154 |
|---|---|
| Mfg Part No: | D20S-LB-EU868 |
| Weight: | 0.37 kg |
Product information for DRAGINO D20S-LB-EU868:
The LoRa wireless technology used in the D20-LB allows the device to send data and achieve extremely long ranges at low data rates. It offers spread spectrum communication with extremely long range and high interference immunity with minimal power consumption.
The temperature sensor used in D20-LB can measure -55°C ~ 125°C with an accuracy of ±0.5°C (maximum ±2.0°C).
D20-LB supports temperature alarm function, user can set temperature alarm for instant notification. D20-LB supports datalog function, can save the data when there is no LoRaWAN network and uplink when the network is restored.
D20-LB supports BLE configuration and OTA wireless update, which makes it easier for users to use.
D20-LB is powered by a 8500mAh Li-SOCI2 battery, designed for long-term use of up to 5 years.
Each D20-LB is pre-installed with a set of unique keys for LoRaWAN registrations. Register these keys on the local LoRaWAN server and the connection will be established automatically after power on.

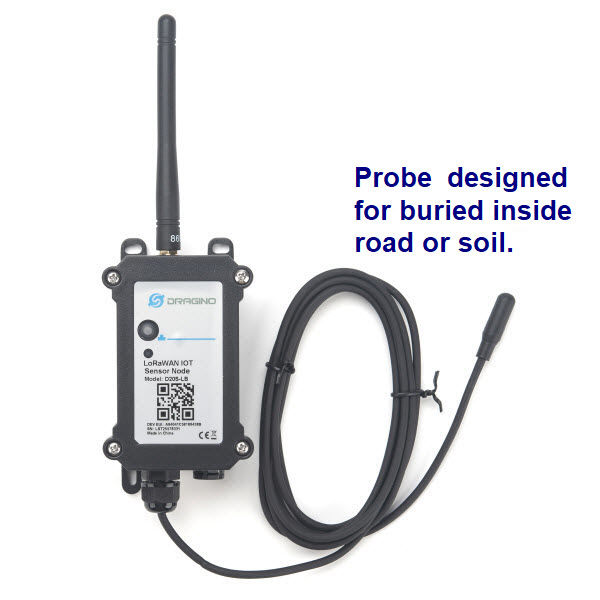

The difference to the DRAGINO D20-LB (item 217605) lies in the design of the sensor head. Please note the picturesFeatures: LoRaWAN 1.0.3 Class A Ultra-low power consumption 1 x DS18B20 temperature sensor, 2 meter measuring range -55°C ~ 125°C Temperature alarm bands: EU868 Supports Bluetooth v5.1 and LoRaWAN remote configuration Supports wireless OTA update firmware Uplink at regular intervals Downlink to change configuration IP66 Waterproof Enclosur 8500mAh battery for long-term operation Specifications: Common DC Characteristics:Supply voltage: built-in 8500mAh Li-SOCI2 battery, 2.5v ~ 3.6v Operating temperature: -40 ~ 85°C temperature sensor :Dallas DS18B20 Range: -55 to +125°C Accuracy ±0.5°C (max ±2.0°C). LoRa Specification:Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz Max. +22 dBm constant RF output vs. RX sensitivity: up to -139 dBm. Excellent blocking immunity Battery: Non-rechargeable Li/SOCI2 battery Capacity: 8500mAh Self-discharge: < / year @ 25°C Max. continuous current: 130mA Max. charging current: 2A, 1 second Power consumption: Sleep mode: 5uA @ 3.3v LoRa transmission mode: 125mA @ 20dBm, 82mA @ 14dBm
