DRAGINO Sensor LoRa Temperature Sensor Node Outdoor D20-LB-EU868
|
53,64 EUR 54,56 EUR |
|
|
( 63,83 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 2073153 |
|---|---|
| Mfg Part No: | D20-LB-EU868 |
| Weight: | 0.37 kg |

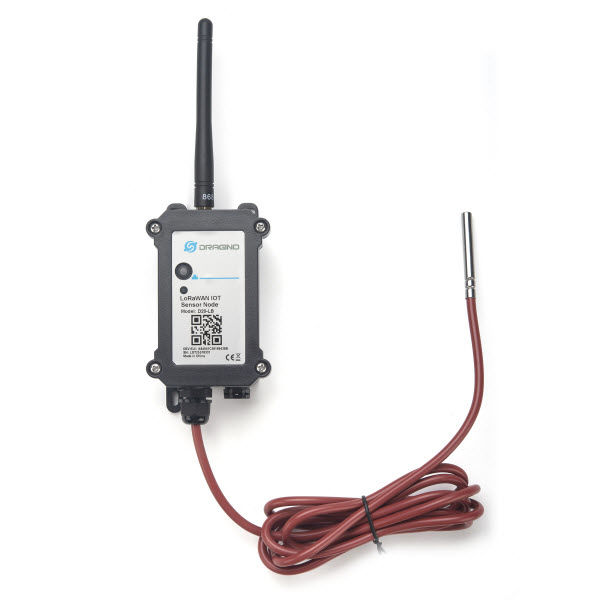

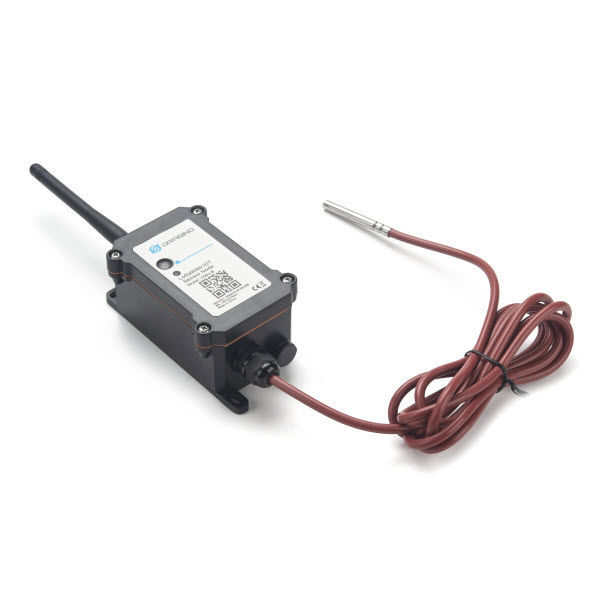

Product information for DRAGINO D20-LB-EU868:
The LoRa wireless technology used in the D20-LB allows the device to send data and achieve extremely long ranges at low data rates. It offers spread spectrum communication with extremely long range and high interference immunity with minimal power consumption.
The temperature sensor used in D20-LB can measure -55°C ~ 125°C with an accuracy of ±0.5°C (maximum ±2.0°C).
D20-LB supports temperature alarm function, user can set temperature alarm for instant notification. D20-LB supports datalog function, can save the data when there is no LoRaWAN network and uplink when the network is restored.
D20-LB supports BLE configuration and OTA wireless update, which makes it easier for users to use.
D20-LB is powered by a 8500mAh Li-SOCI2 battery, designed for long-term use of up to 5 years.
Each D20-LB is pre-installed with a set of unique keys for LoRaWAN registrations. Register these keys on the local LoRaWAN server and the connection will be established automatically after power on. Features: LoRaWAN 1.0.3 Class A Ultra-low power consumption 1 x DS18B20 temperature sensor, 2 meter measuring range -55°C ~ 125°C temperature Alarm Bands: EU868 Supports Bluetooth v5.1 and LoRaWAN remote configuration Supports wireless OTA update firmware Uplink at regular intervals Downlink to change configuration IP66 Waterproof Enclosur 8500mAh battery for long-term operation Specifications: Common DC Characteristics:Supply voltage: built-in 8500mAh Li-SOCI2 battery , 2.5v ~ 3.6v Operating temperature: -40 ~ 85°C Temperature sensor: Dallas DS18B20 Range: -55 to + 125°C Accuracy ±0.5°C (max ±2.0°C). LoRa Specification: Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz Max. +22 dBm constant RF output vs. RX sensitivity: up to -139 dBm. Excellent blocking immunity Battery: Non-rechargeable Li/SOCI2 battery Capacity: 8500mAh Self-discharge: < / year @ 25°C Max. continuous current: 130mA Max. charging current: 2A, 1 second Power consumption: Sleep mode: 5uA @ 3.3v LoRa transmission mode: 125mA @ 20dBm, 82mA @ 14dBm
Questions & answers
What is the delivery time of DRAGINO Sensor LoRa Temperature Sensor Node Outdoor D20-LB-EU868?
The article DRAGINO Sensor LoRa Temperature Sensor Node Outdoor D20-LB-EU868 is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DRAGINO D20-LB-EU868 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DRAGINO Sensor LoRa Temperature Sensor Node Outdoor D20-LB-EU868 always at the best possible price. We can give you a discount of 2% on DRAGINO Sensor LoRa Temperature Sensor Node Outdoor D20-LB-EU868 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
