Overview

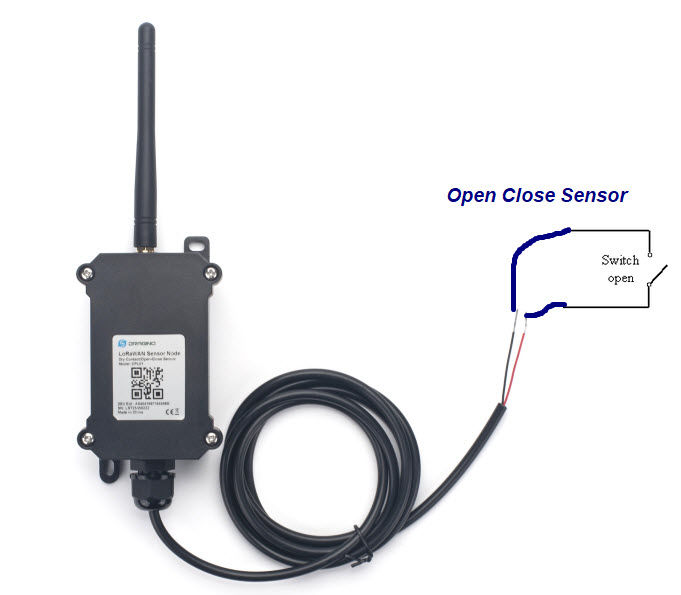

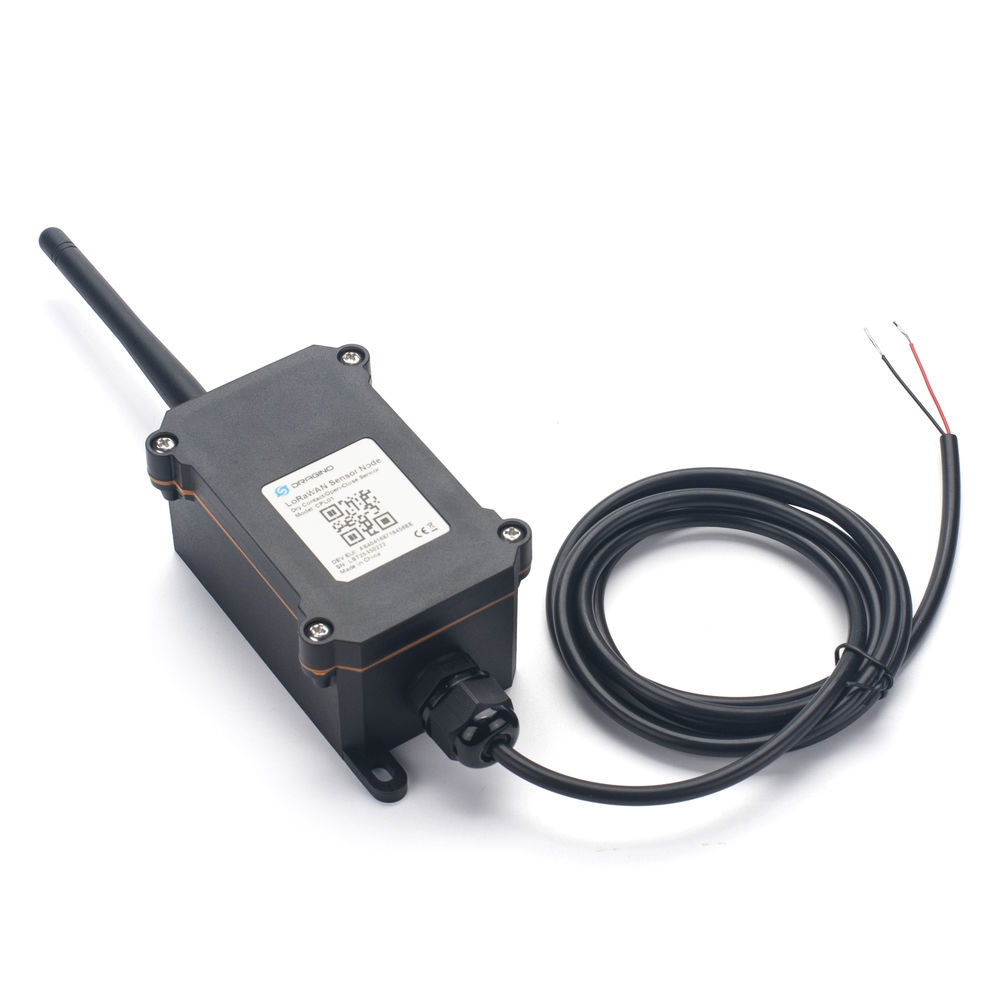

The Dragino CPL01 is a LoRaWAN contact sensor. It detects the open/close status and sends to the IoT server via the LoRaWAN network. The user can see the status of the dry contact, the opening time and the number of openings on the IoT server.
CPL01 is powered by an 8500mAh Li-SOCI2 battery, designed for long-term use of up to 10 years. (Actual battery life depends on the usage environment and update period).
The CPL01 sends data regularly every day and with every action of the potential-free contact. It also counts the contact opening times and calculates the last opening time. Users can also disable the uplink for each open/close event, instead the device can count each open event and send the uplink periodically.
The CPL01 has an open contact alarm function. The user can set this feature so that the device sends an alarm when the contact has been open for a certain period of time.
Each CPL01 is pre-loaded with a set of unique keys for LoRaWAN registration, register these keys to LoRaWAN server and it will connect automatically after power on. FeaturesLoRaWAN v1.0.3 Class A protocol. Frequency band: EU868 Open/Close detection Open/Close statistics 8500mAh industrial battery (non-rechargeable) AT commands to change parameters Uplink at regular intervals and Open/Close event Datalog function Remote configuration of parameters via LoRa Downlink Firmware upgrade via Program port possible Wall mounting possible Suitable for outdoor use Areas of applicationWireless alarm and security systems Home and building automation Industrial monitoring and control Scope of delivery1 x CPL01-EU868 Open/Close Dry Contact Sensor
