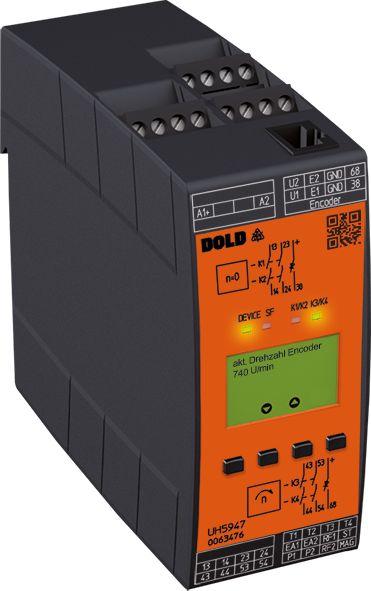

Dold 0063744 UH5947.04PS/101/61 DC24V speed monitor

Your rating:
Average rating
product review for Dold 0063744 UH5947.04PS/101/61 DC24V speed monitor
( 4.7 / 5 ) 9 ratings
Dold 0063744
This image may differ from the desired article.
1.377,82 EUR
( 1.639,61 EUR incl. VAT )
≈ £1,153.24  |  ≈ $1,514.22
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0063744 UH5947.04PS/101/61 DC24V speed monitor
Datasheet:file_download Download
Lieske Part No.:1320773
Mfg Part No: 0063744
UPC/EAN: 4030641637446
Weight:0.45 kg
Type:UH5947.04PS/101/61 DC24V
Graduated prices net
From piecesPrice per pieces
21.346,82 EUR
41.315,82 EUR
61.284,82 EUR
81.253,82 EUR

Product information for Dold 0063744:

The Dold speed monitor UH5947.04PS/101/61 DC24V is a safety-relevant monitoring switch for speed monitoring of drives in machines and plants. It serves to prevent hazards caused by moving machine parts and enables safe speed monitoring in automatic and setup operation, as well as safe standstill monitoring. The integrated safety door monitoring reduces space requirements and costs, as external safety door monitoring devices can be omitted. Parameterization is performed via a front-mounted display with menu-guided operation, enabling commissioning without a PC.

Applications
This speed monitor is designed for safety applications requiring high availability and reliability. It is used in industrial plants where moving parts may pose a hazard to personnel or machinery. The devices are suitable for drives with various motor feedback systems and proximity switches. The integrated safety door monitoring enables compact and cost-efficient integration into existing drive solutions.

Functions and Equipment in Detail
The device features 2-channel safety door monitoring and allows selection between automatic and setup operation. In automatic mode, a speed window is monitored, while in setup mode, a special speed window for commissioning is activated. Standstill monitoring is active in both operating modes. Settings can be adjusted via the display or through an RJ45 connection (FCC Western-Modular 8P8C) using a connection cable, with parameters transferable to other devices via key press. Display is in rpm or m/min, with the setpoint additionally shown as a frequency value.

Technology Explained Simply
The speed monitor has a width of 45 mm and is designed for a nominal voltage of DC 24 V. It features forced-guided output contacts with a maximum of 2 x 2 normally closed contacts. The contact configuration includes 4 normally closed contacts, connected via removable terminal blocks with screw terminals. Connection technology includes removable spring terminals, removable spring terminals for 2-wire, and removable screw terminals. The maximum thermal current rating is 5 A. The devices are suitable for initiators and encoders and support various sensor types, including sin/cos, TTL, and HTL. When sensor selection E1 + E2 is chosen, the signal from E1 is transmitted to the semiconductor outputs in a 1:2 ratio; for other sensor selections, the semiconductor outputs are inactive.

Compatibility and Accessories
The speed monitor is designed for use with NAMUR sensors and can be connected to various encoders and initiators. The devices are suitable for safety functions up to PL e / Category 4 according to EN ISO 13849-1 and SIL 3 according to IEC/EN 62061. Certifications include UL-listed C/US, TÜV, UKCA, and CCC. The devices support safety functions such as STO, SOS, SLS, SSM, SSR, and SDL according to EN 61800-5-2. Diagnostic functions enable reduction of plant downtime.

Mounting and Installation
Mounting is performed in standard control panels with a width of 45 mm. The connection terminals are removable, enabling quick device replacement. Parameterization is done via the front-mounted display, allowing time-saving commissioning. Settings can be adjusted via the display or the RJ45 connection. The devices are designed for industrial environments and comply with required safety standards.

Operational Advantages
The speed monitor provides a compact and cost-efficient solution for speed monitoring. The integrated safety door monitoring reduces space requirements and costs. Menu-guided parameterization via the display enables simple and fast commissioning. Diagnostic functions support maintenance and reduce downtime. The devices are designed for safety applications up to PL e / Cat 4 and SIL 3, ensuring high reliability. The ability to transfer device parameters to other devices via key press simplifies configuration and maintenance.

Technical data
1- / 2-channel2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ClassificationFor initiators and encoders
ConnectionPluggable cage clamp terminals, Pluggable cage clamp terminals 2-wire, Pluggable screw terminals
Forcibly guided output contacts max.2 x 2 NO contacts
Indicator contacts2 Semiconductor monitoring outputs
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width45 mm
TypeUH 5947
Variant
Contact equipping4 NO contacts
Nominal voltageDC 24 V
Terminal typepluggable terminal blocks with screw terminals
Approvals and MarkingsUL-listed C/US, TÜV, UKCA, CCC
VariantFor NAMUR sensors. At sensor selection E1+E2: The semiconductor outputs give out the incoming signal of E1 with a ratio 1:2. Other sensor selection: The emiconductor outputs have no function


Product data sheet
Datasheet for Dold 0063744, EAN: 4030641637446
