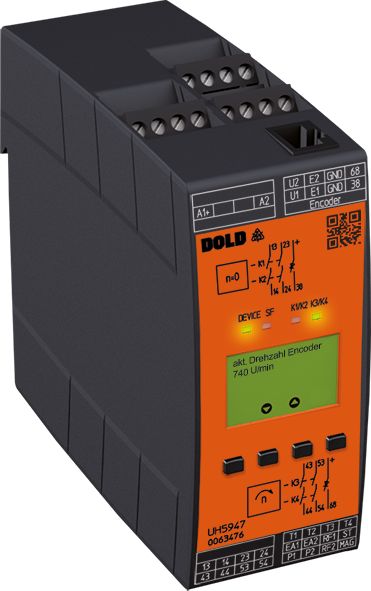

Dold 0063476 UH5947.04PS/61 DC24V speed monitor
|
1.311,95 EUR |
|||||||||||
|
( 1.561,22 EUR incl. VAT ) ≈ £1,098.10 | ≈ $1,441.83 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1320772 | ||||||||||
| Mfg Part No: | 0063476 | ||||||||||
| UPC/EAN: | 4030641634766 | ||||||||||
| Weight: | 0.45 kg | ||||||||||
| Type: | UH5947.04PS/61 DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0063476:
Applications
This speed monitor is used in machines and plants where moving parts or drives may pose a hazard. It is suitable for drives with various motor feedback systems and proximity switches. Applications include monitoring rotational speeds in automatic and setup modes, as well as safe standstill monitoring. The integrated safety door monitoring allows monitoring of safety doors in single- or dual-channel configuration, simplifying the system architecture. The device is compatible with all market-available encoders, including sin/cos, TTL, and HTL signals.
Functions and Equipment in Detail
The device features a front-mounted display enabling menu-guided parameterization. Settings can be adjusted directly on the device without requiring a PC. The display shows setpoint and actual values in rpm or m/min, with the setpoint additionally displayed as a frequency value. Operating modes are configurable: in automatic mode, a speed window is monitored, while in setup mode, a separate speed window for setup operations is activated. Standstill monitoring is available in both operating modes. The start-up bypass time is adjustable from 0 to 999 seconds, as is the release delay time. The shutdown monitoring for external contactors at RF1 can be set between 0.5 and 999 seconds.
Technology Explained Simply
The speed monitor operates with a dual-channel design and provides forced-guided output contacts, ensuring that contacts are only closed or opened in defined states. The output contacts consist of four normally open contacts, connected via removable terminal blocks with screw terminals. The nominal voltage is DC 24 V, and the maximum thermal current Ith is 5 A. The device function is standardly configured for PNP and NPN initiators. Connection technology includes removable spring-loaded terminals, removable spring-loaded terminals for 2-wire connections, and removable screw terminals. The width is 45 mm, enabling compact mounting in standard control panels. Device indicators include LED indicators and two semiconductor alarm outputs for diagnostics and status indication.
Compatibility and Accessories
The device is compatible with various initiators and encoders, including sin/cos, TTL, and HTL signals. Parameterization is performed via the front-mounted display or through an RJ45 connection (FCC Western Modular 8P8C) with a connecting cable, allowing device parameters to be transferred to other devices with a single button press. Settings can also be documented via change tracking. The device function is standardly configured for PNP and NPN initiators, with selection configurable within the device.
Mounting and Installation
Mounting is performed in standard control panels with a width of 45 mm. Removable terminal blocks allow for quick device replacement. Connection terminals are designed for screw terminals and spring-loaded terminals, with spring-loaded terminals also available in a 2-wire variant. Installation requires no special tools, as terminals are mechanically operated. The device function is standardly configured for PNP and NPN initiators, with selection configurable within the device.
Operational Advantages
The speed monitor reduces downtime through comprehensive diagnostic functions. The integrated safety door monitoring reduces the number of required components and lowers installation costs. Simple commissioning without a PC and menu-guided parameterization shorten installation time. The ability to transfer device parameters to other devices with a single button press simplifies maintenance and replacement. Multilingual support (German, English, French, Italian, Spanish) facilitates use in international environments. Certifications including UL-listed C/US, TÜV, UKCA, and CCC ensure compliance with international safety standards.
| Technical data | |
| 1- / 2-channel | 2 |
| Approvals | UL |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Classification | For initiators and encoders |
| Connection | Pluggable cage clamp terminals, Pluggable cage clamp terminals 2-wire, Pluggable screw terminals |
| Forcibly guided output contacts max. | 2 x 2 NO contacts |
| Indicator contacts | 2 Semiconductor monitoring outputs |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 5 A |
| Width | 45 mm |
| Type | UH 5947 |
| Variant | |
| Contact equipping | 4 NO contacts |
| Nominal voltage | DC 24 V |
| Terminal type | pluggable terminal blocks with screw terminals |
| Approvals and Markings | UL-listed C/US, TÜV, UKCA, CCC |
| Variant | For PNP- NPN sensors. Function standard |
