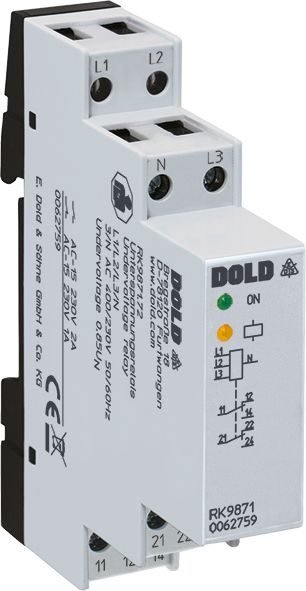

Dold 0063314 RK9871.71 3/N AC400/230V 50/60Hz undervoltage relay

Your rating:
Average rating
product review for Dold 0063314 RK9871.71 3/N AC400/230V 50/60Hz undervoltage relay
( 4.5 / 5 ) 8 ratings
Dold 0063314
This image may differ from the desired article.
120,96 EUR
( 143,94 EUR incl. VAT )
≈ £101.24  |  ≈ $132.94
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0063314 RK9871.71 3/N AC400/230V 50/60Hz undervoltage relay
Datasheet:file_download Download
Lieske Part No.:1320782
Mfg Part No: 0063314
UPC/EAN: 4030641633141
Weight:0.123 kg
Type:RK9871.71 3/N AC400/230V 50/60HZ
Graduated prices net
From piecesPrice per pieces
5116,42 EUR
10111,89 EUR
15107,35 EUR
20102,82 EUR

Product information for Dold 0063314:

The Dold undervoltage relay RK9871.71 is a device for monitoring three-phase power networks for undervoltage and serves for automatic switching to safety power supplies. It is specifically designed for use in installations complying with the standards DIN VDE 0100-718:2005-10 and DIN VDE 0108-100:2005-01, for example in buildings with large numbers of people or for emergency lighting. The device operates on the standby current principle, whereby the output relay is not activated in the event of a fault, ensuring a safe and reliable response during disturbances. The nominal voltage is 3/N AC 400/230 V, and the relay is suitable for both single-phase and three-phase connections. The contact configuration includes 1 changeover contact, making it suitable for simple switching functions in monitoring systems.

Applications

The relay is used in industrial and commercial installations where continuous power supply is required for safety functions such as emergency lighting, alarm systems, or exit lighting. It monitors the network voltage and responds to undervoltage conditions by switching the power supply for critical loads to a backup source. The application is particularly common in buildings equipped according to the mentioned VDE standards to ensure personnel safety during power failures.

Functions and Equipment in Detail

The device detects undervoltage when the arithmetic mean of the three phase voltages to neutral (N) falls below the fixed pickup threshold of 195.5 V. Detection occurs after a duration of more than 0.5 seconds. The output relays then switch off to disconnect the load from the faulty supply. Return to normal operation occurs after a fixed delay of 1 minute, provided the voltage is again stable above the threshold. The function is independent of phase sequence, simplifying installation. An LED indicator signals operation: the green LED lights up when supply voltage is present, the yellow LED lights up when the output relay is active, and flashes during the 1-minute delay period.

Technology Explained Simply

This reduces the number of required connections and increases reliability. Measurement occurs in the frequency range of 45 to 65 Hz, ensuring compatibility with various network frequencies (50/60 Hz). The hysteresis is approximately 5 %, preventing the relay from switching due to minor voltage fluctuations. The electrical life expectancy is at least 100,000 switching operations at 1 A and AC 230 V, enabling high operational reliability over a long period.

Compatibility and Accessories

The device is designed for single-phase and three-phase connections. For single-phase operation, terminals L1, L2, and L3 must be connected; for two-phase operation, L2 and L3. The width is 17.5 mm, making it suitable for standard installation distributors. The connection terminals are clearly labeled (L1, L2, L3, N, as well as 11, 12, 14 for the first changeover contact), facilitating installation. An optional test button is available to check the relay’s functionality.

Mounting and Installation

Mounting is done in an installation distributor. Connections must be made when the circuit is de-energized. Terminals L1, L2, L3, and N are intended for the network voltage, while contacts 11, 12, 14 are assigned to the output relay. The operating temperature range is from -25 °C to +70 °C. The overvoltage category III (according to IEC 60664-1) indicates suitability for industrial environments with high electrical stress. The maximum overload capacity is 1.15 times the nominal voltage continuously.

Advantages in Operation

The relay provides high safety through automatic switching during undervoltage, without requiring an external auxiliary voltage. The LED indicator allows for quick visual monitoring of the operating status. The fixed time delay of 0.5 seconds for fault detection and 1 minute for returning to normal operation ensures stable and disturbance-free operation. Compliance with standards IEC/EN 60255-1 and DIN VDE 0100-718:2005-10 as well as DIN VDE 0108-100:2005-01 guarantees conformity with applicable safety standards. The width of 17.5 mm enables compact mounting in standard switchboards.
