Dold 0063158 LG5924.02/61 DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0063158 LG5924.02/61 DC24V emergency stop module
( 4.8 / 5 ) 8 ratings
Dold 0063158

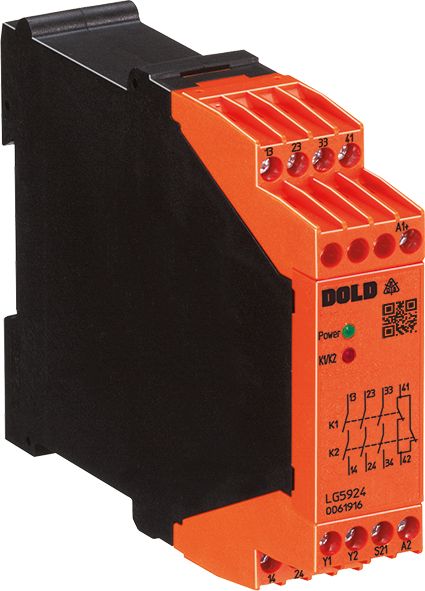

This image may differ from the desired article.
Dold 0063158Dold 0063158
160,56 EUR
( 191,07 EUR incl. VAT )
≈ £134.39  |  ≈ $176.46
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0063158 LG5924.02/61 DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:1321012
Mfg Part No: 0063158
UPC/EAN: 4030641631581
Weight:0.22 kg
Type:LG5924.02/61 DC24V
Graduated prices net
From piecesPrice per pieces
5154,54 EUR
10148,52 EUR
15142,50 EUR
20136,48 EUR

Product information for Dold 0063158:

The emergency stop module LG5924.02/61 DC24V from Dold is a safety relay for use in industrial systems, ensuring the protection of personnel and machinery through safety-oriented enabling and interruption of a safety circuit. It is designed for use in safety-critical applications and complies with the requirements of standards EN ISO 13849-1 and IEC/EN 62061. The device is available in the variant with DC 24 V nominal voltage and features fixed screw terminals as well as contact configuration with 2 NO contacts. The width is 22.5 mm, enabling compact mounting in standard control panels.

Applications
This module is designed for safety applications up to Performance Level (PL) e and Category 4 according to EN ISO 13849-1, as well as Safety Integrity Level (SIL) 3 according to IEC/EN 62061. It is particularly suitable for applications in automation technology where reliable shutdown is required in hazardous situations. The approval according to EN 50156-1 also makes it suitable for boiler installations. The 1- or 2-channel wiring enables flexible integration into existing safety architectures.

Functions and Equipment in Detail
The device features LED indicators for Channel 1 and Channel 2, as well as for operating status, allowing visual monitoring of safety functions. A short-circuit detection between terminal Y1 and ground provides additional safety. The output contacts are designed for up to 4 NO contacts, with a maximum thermal current Ith of 5 A. The connection technology includes fixed screw terminals, as well as optional removable spring-cage terminals and removable screw terminals, enabling flexible installation and maintenance.

Technology Explained Simply
The emergency stop module operates on the principle of safe signal processing. In the event of an emergency stop, the safety circuit is interrupted to safely shut down the machine. The integrated short-circuit detection monitors the connection between terminal Y1 and ground to prevent malfunctions caused by short circuits. The LED indicators signal the operating status and the status of individual channels, simplifying fault diagnosis. The approvals UL-listed C/US, TÜV, UKCA, and CCC confirm compliance with international safety standards.

Compatibility and Accessories
The module is designed for use in 1- or 2-channel safety systems. It can be combined with various connection technologies, including fixed screw terminals, removable spring-cage terminals, and removable screw terminals. The optional use of plug-in terminal blocks enables quick device replacement. Wire connection options include 2 x 1.5 mm² stranded wire with ferrule and plastic sleeve, as well as 2 x 2.5 mm² solid wire according to DIN 46 228-1/-2/-3/-4.

Mounting and Installation
Mounting is performed in standard control panels with a width of 22.5 mm. The fixed screw terminal technology ensures a secure and durable connection of the wires. When using removable terminals, an additional mounting rail is required. The connection terminals are designed for use with stranded and solid wires, with maximum cross-sections as specified in the data sheet.

Advantages in Operation
The module provides high safety integrity by meeting the requirements for PL e / Cat. 4 and SIL 3. The LED indicators and short-circuit detection enhance operational safety and simplify maintenance. The flexible connection technology and compact design enable easy integration into existing systems. The approvals according to UL, TÜV, UKCA, and CCC ensure the international usability of the device.

Technical data
1- / 2-channel1, 2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable cage clamp terminals, Pluggable screw terminals, Screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width22,5 mm
TypeLG 5924
Variant
Contact equipping2 NO contacts
Nominal voltageDC 24 V
Terminal typescrew terminals fixed
Approvals and MarkingsUL-listed C/US, TÜV, UKCA, CCC


Product data sheet
Datasheet for Dold 0063158, EAN: 4030641631581

Questions & answers

What is the delivery time of Dold 0063158 LG5924.02/61 DC24V emergency stop module ?

The article Dold 0063158 LG5924.02/61 DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0063158 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0063158 LG5924.02/61 DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0063158 LG5924.02/61 DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0063158 LG5924.02/61 DC24V emergency stop module we can offer you a price of 154,54 EUR per piece. The more you buy, the cheaper the article will be.
