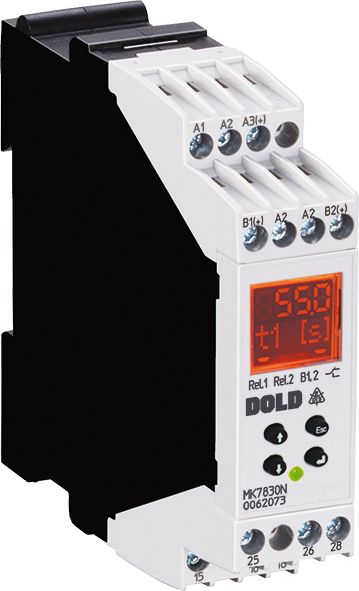

Dold 0062495 MK7830N.81 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h

Your rating:
Average rating
product review for Dold 0062495 MK7830N.81 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h
( 4.7 / 5 ) 6 ratings
Dold 0062495
This image may differ from the desired article.
193,32 EUR
( 230,05 EUR incl. VAT )
≈ £161.81  |  ≈ $212.46
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0062495 MK7830N.81 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h
Datasheet:file_download Download
Lieske Part No.:1320397
Mfg Part No: 0062495
UPC/EAN: 4030641624958
Weight:0.15 kg
Type:MK7830N.81 AC/DC24V+AC230V
Graduated prices net
From piecesPrice per pieces
5191,87 EUR
10190,42 EUR
15188,97 EUR
20187,52 EUR

Product information for Dold 0062495:

The Dold MK7830N.81 AC/DC24V+AC230V is a digital multifunction timer relay for industrial control applications. It combines two independently configurable timer relays in a compact housing with a width of 22.5 mm, designed for installation in enclosures. The device is rated for operating voltages of AC/DC 24 V and AC 230 V and offers flexible time control with a time range from 0.02 seconds to 9999 hours. The functions are digitally adjustable, enabling precise and reproducible time sequences.

Applications
This timer relay is designed for time-controlled processes in industrial environments, such as automation systems, machine controls, or process monitoring installations. It is particularly suitable for applications where multiple time functions need to be integrated into a single device to save space in the enclosure. The ability to configure various time functions such as delay-on-make, delay-on-break, pulse generator, or timer generator makes it highly versatile. It is also advantageous for maintenance and service work, as it can replace multiple specialized timer relays.

Functions and Features in Detail
Each of the two output relays can be configured independently. Available time functions include delay-on-make (AV), delay-on-break (RV), make-wipe function (EW), break-wipe function (AW), pulse generator (IE), timer generator (TI/TP), pulse converter (IF), as well as combinations such as AV/RV or EW/AW. The functions Off" (OFF) and "Instant contact (ON) are also available. The two relays can also be operated synchronously, so that relay 2 switches simultaneously with relay 1. Settings are made via an LCD display, which can switch between two modes: In the first mode, the set values are displayed cyclically; in the second mode, the remaining time until the output relay state change is shown. This mode is only activatable if at least one time setting t1 or t2 is ≥ 1 second.

Technology Explained Simply
The device operates according to the standard IEC/EN 61812-1 and is designed for use in industrial environments. The digital control enables high accuracy of time sequences. The operating voltages AC/DC 24 V and AC 230 V are supplied via connection terminals A3/A2 and A1/A2 respectively. The control inputs B1(+) and B2(+) are used to activate the respective output relays, with the function varying depending on the selected time function. The output contacts consist of two changeover contacts (15-16 and 25-26), with terminals 25-26 only available in the MK7830N.82 variant. The connection terminals are fixed screw terminals, ensuring a secure connection. An LED indicator shows the device status: Off (no operating voltage), green (operation), orange flashing (configuration), and red (error). In case of an error, the display shows the cause, for example Err.2,5 cm ( 1 inch ) for a checksum error of the first relay or "Err.2 for the second.

Compatibility and Accessories
The device is designed for use in enclosures and can be combined with other components of the MK 7830N series. Optional plug-in connection blocks are available, enabling quick replacement of the device. The terminal type is fixed as screw terminal, with a variant featuring spring-cage terminals also available. The operating voltages AC/DC 24 V and AC 230 V allow flexible integration into existing power supply systems.

Mounting and Installation
The timer relay is mounted in an enclosure, with its width of 22.5 mm enabling compact placement. The connection terminals are designed for wiring, with the exact assignment of terminals described in the wiring diagram of the datasheet. The device is delivered with both relays set to OFF function, with contacts 15-16 and 25-26 closed.

Operational Advantages
By combining two timer relays in one housing, the space requirement in the enclosure is reduced. Digital adjustment enables high precision and reproducibility of time sequences. The flexible configuration of time functions allows adaptation to various applications, making the device versatile. The LED indicator and error diagnosis via the display simplify commissioning and maintenance. The UKCA certification confirms compliance with applicable European safety requirements.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact, 2 x 1 C/O contacts
Time function(s)Cyclic timer, Fleeting on break, Fleeting on make, Fleeting on make and brake, Impulsgeber, Off-delay, with control signal, On- and Off-delay, On-delay, Pulse extender
Width22,5 mm
TypeMK 7830N
Variant
Contact equipping1 changeover contact
Nominal voltageAC/DC 24 V + AC 230 V
Terminal typescrew terminal fixed
Time range0,02 s - 9999 h
Approvals and MarkingsUKCA


Product data sheet
Datasheet for Dold 0062495, EAN: 4030641624958

Questions & answers

What is the delivery time of Dold 0062495 MK7830N.81 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h ?

The article Dold 0062495 MK7830N.81 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0062495 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0062495 MK7830N.81 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h always at the best possible price. We can give you a discount of 2% on Dold 0062495 MK7830N.81 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0062495 MK7830N.81 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h we can offer you a price of 191,87 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
