Dold 0062214 LG5928.41/61 DC24V 0.1-1S emergency stop module

Your rating:
Average rating
product review for Dold 0062214 LG5928.41/61 DC24V 0.1-1S emergency stop module
( 4.6 / 5 ) 8 ratings

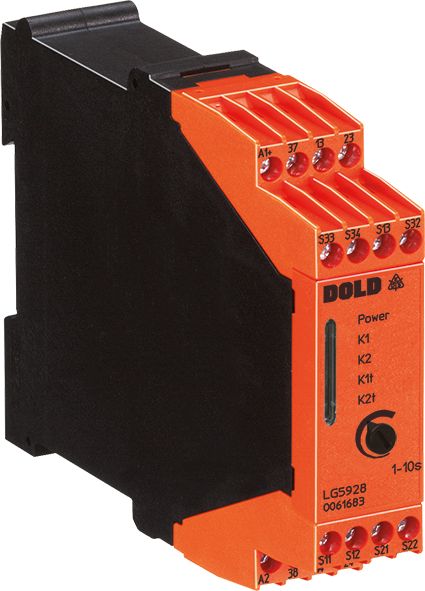

Dold 0062214
This image may differ from the desired article.
354,66 EUR
( 422,05 EUR incl. VAT )
≈ £296.85  |  ≈ $389.77
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0062214 LG5928.41/61 DC24V 0.1-1S emergency stop module
Datasheet:file_download Download
Lieske Part No.:1563380
Mfg Part No: 0062214
UPC/EAN: 4030641622145
Weight:0.247 kg
Type:LG5928.41/61 DC24V 0,1-1S
Graduated prices net
From piecesPrice per pieces
4341,36 EUR
8328,06 EUR
12314,76 EUR
16301,46 EUR

Product information for Dold 0062214:

The Dold safety relay LG5928.41/61 DC24V 0,1-1S is an emergency stop module for use in safety-critical systems. It serves the protective function for personnel and machinery, particularly in emergency stop circuits where a stop category 1 must be implemented. The device is suitable as a safety door monitor and monitors, for example, sliding safety grilles. It has a width of 22.5 mm and is designed for mounting in standard DIN control panels. The rated voltage is DC 24 V, and the time delay is adjustable in the range of 0.1 to 1 second. The contact configuration includes two immediately closing contacts and one delayed-closing contact, where the time delay for de-energizing the two time relays K1t and K2t can be configured.

Applications
This device is used in industrial systems where safe shutdown is required in hazardous situations. It is particularly suitable for applications requiring rapid response and high reliability, such as in manufacturing automation, machines with moving parts, or systems with safety grilles. The function as a safety door monitor enables monitoring of access areas to ensure that machines can only be operated when safety doors are closed.

Functions and equipment in detail
The module offers 1- or 2-channel wiring, making it flexible for use in different safety configurations. Short-circuit detection at the single-button (when connected to terminals S33–S34) enables detection of cross-short circuits in the emergency stop control circuit. Activation occurs either via a single button at S33–S34 or via an automatic single-function with a bridge at S13–S34. The status indication for the delayed-closing time circuit, as well as LED indicators for power supply, channel 1/2, and time delay, support diagnostics and maintenance. The connection technology includes fixed screw terminals, as well as optionally removable spring-cage and screw terminals, enabling quick device replacement.

Technology explained simply
The time delay of 0.1 to 1 second ensures that the delayed-closing contact does not close immediately after triggering the emergency stop, but after an adjustable delay. This is necessary to ensure that the machine is fully shut down before the contact closes again. The short-circuit detection checks whether a short circuit exists in the control circuit, preventing malfunction. The thermal current rating is up to 8 A, defining the contact load capacity. The terminals are designed for stranded wires up to 2 x 1.5 mm² with ferrules and plastic collars (DIN 46228-1/-2/-3/-4) or for solid conductors up to 2 x 2.5 mm² (DIN 46228-1/-2/-3).

Compatibility and accessories
The device is compatible with various connection technologies, including fixed screw terminals, removable spring-cage terminals, and removable screw terminals. The optional use of plug-in connection blocks enables quick replacement of the module. Combination with other safety components, such as emergency stop buttons or safety door switches, is possible, with the exact configuration adapted to the respective system.

Mounting and installation
Mounting is performed in standard DIN control panels with a width of 22.5 mm. The terminals are designed for connection with stranded or solid conductors, with exact cross-sections specified in the datasheet. The terminal assignment is detailed in the manufacturer’s wiring diagram. Installation requires compliance with safety regulations, particularly standards EN ISO 13849-1 and IEC/EN 62061.

Advantages in operation
The module offers high safety integrity with Performance Level (PL) e and Category 4 according to EN ISO 13849-1, as well as SIL 3 according to IEC/EN 62061. The short response time and integrated status indication simplify maintenance and fault diagnosis. The option to choose between 1- and 2-channel wiring increases flexibility in system design. Certifications UL-listed C/US, TÜV, and CCC confirm compliance with international safety standards.

Technical data
1- / 2-channel1, 2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable cage clamp terminals, Pluggable screw terminals, Screw terminals
Output contacts max.1 NO contact delayed, 2 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.8 A
Width22,5 mm
TypeLG 5928
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping2 NO contacts instantaneous, 1 NO contact off delay
Nominal voltageDC 24 V
Terminal typescrew terminal fixed
Time range0,1 - 1 s
Approvals and MarkingsUL-listed C/US, TÜV, CCC
Variant2 NO instantaneous contacts and 1 release delay contact. With redundant time circuits to disconnect K1t and K2t, adjustable time.


Product data sheet
Datasheet for Dold 0062214, EAN: 4030641622145
