Dold 0062127 BI9034 60A AC 50/60Hz 400V 2-11S motor brake device

Your rating:
Average rating
product review for Dold 0062127 BI9034 60A AC 50/60Hz 400V 2-11S motor brake device
( 4.3 / 5 ) 49 ratings

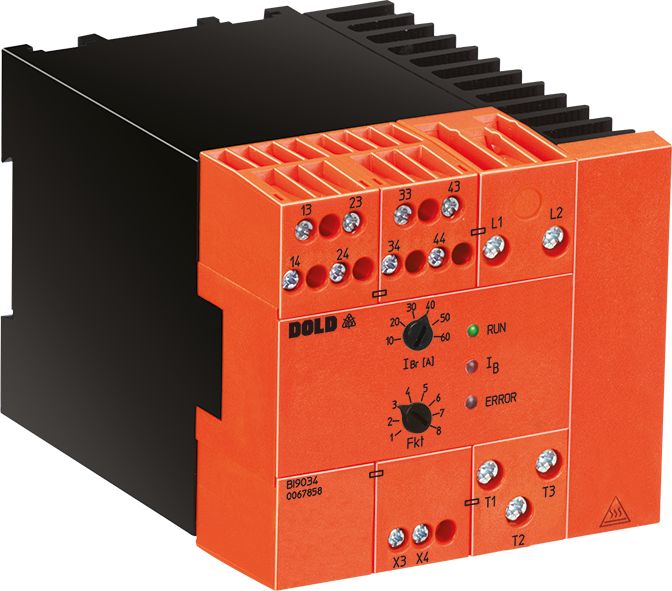

Dold 0062127
This image may differ from the desired article.
769,48 EUR
( 915,68 EUR incl. VAT )
≈ £644.05  |  ≈ $845.66
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0062127 BI9034 60A AC 50/60Hz 400V 2-11S motor brake device
Datasheet:file_download Download
Lieske Part No.:501674
Mfg Part No: 0062127
UPC/EAN: 4030641621278
Weight:0.63 kg
Type:BI9034 60A AC50/60HZ 400V 2-11S
Graduated prices net
From piecesPrice per pieces
3740,62 EUR
6711,77 EUR
9682,91 EUR
12654,06 EUR

Product information for Dold 0062127:

The electronic motor brake device BI 9034 from Dold is a brake device for asynchronous motors, enabling wear-free and reliable braking. It is designed for drives that must be stopped precisely and quickly for safety and functional reasons. The device operates with DC braking via a single-phase rectifier and is rated for a nominal voltage of AC 400 V. The braking current can be adjusted up to 60 A, with braking time adjustable between 2 and 11 seconds. The maximum adjustable braking time is 31 seconds. The width of the device is 90 mm, allowing for compact and space-saving installation in enclosures.

Applications

The brake device BI 9034 is used in industrial applications where rapid and secure stopping of motors is required. Examples include sawmills, centrifuges, woodworking machines, textile machines, and conveyor systems. The integrated standstill detection ensures that the braking current is automatically switched off as soon as the motor stops, ensuring energy savings and preventing overheating. This function is particularly useful in systems that operate continuously, where uncontrolled rotation after motor shutdown must be avoided.

Functions and Equipment in Detail

The device features an integrated brake contactor that initiates the braking process as soon as the motor contactor is switched off. Braking is achieved by applying a DC voltage to the stator windings of the motor, generating a braking torque. The braking time is adjustable via a control, with settings ranging from 2 to 11 seconds. The maximum braking time is 31 seconds. The braking current strength can also be adjusted and reaches up to 60 A. Control is performed by a microcontroller, ensuring precise and reproducible operation. An integrated alarm output allows indication of the operating status or signal transmission to higher-level control systems.

Technology Explained Simply

DC braking works by converting AC voltage via a single-phase rectifier into DC voltage, which is applied to the motor windings. This creates a magnetic field that opposes the motor’s torque, reducing its rotational speed. The integrated standstill detection monitors the motor’s speed and automatically switches off the braking current once the motor has stopped. This prevents unnecessary energy loss and protects the motor from overheating. Temperature monitoring additionally ensures that the device is switched off in case of overheating, preventing damage.

Compatibility and Accessories

The brake device is suitable for all single- and three-phase asynchronous motors. It is manufactured in accordance with the standard IEC/EN 60947-4-2, ensuring compliance with safety and functional requirements for electrical equipment. The integrated star-delta start control enables a gentle motor start, reducing mechanical stress on the drive. Installation is carried out on a 35 mm standard DIN rail, allowing easy integration into existing enclosures. Terminals L1 and L2 are for connecting the supply voltage, while T1, T2, and T3 are for motor connections. Feedback contacts X3 and X4 are used for signal transmission from the motor contactor.

Mounting and Installation

The device is snapped onto a 35 mm standard DIN rail, enabling quick and secure installation in enclosures. Connection terminals are clearly labeled: L1 and L2 for supply voltage, T1, T2, and T3 for motor connections, X3 and X4 for feedback from the motor contactor. A green LED indicates that supply voltage is present and the device is ready for operation. Commissioning does not require an ammeter, as the braking current is adjusted via a control. Braking time adjustment is also done via a switch, with values ranging from 2 to 11 seconds.

Advantages in Operation

The brake device BI 9034 offers higher safety through shorter coast-down times and avoids mechanical wear, as no mechanical brakes are required. The integrated control and brake contactor reduce space requirements in the enclosure and lower costs for additional components. Simple commissioning and maintenance-free operation make the device particularly suitable for industrial applications where reliability and operational safety are paramount. Automatic standstill detection and temperature monitoring increase operational safety and extend the service life of the device and the motor.

Technical data
Braking current adjustable up to max.60 A
Braking time adjustable up to max.31 s
Width90 mm
TypeBI 9034
Automatic standstill monitoringYes
Signalling outputYes
Temperature monitoringYes
Variant
Braking current60 A
Braking time2 - 11 s
Contact equipping4 NO contacts
Nominal voltageAC 400 V


Product data sheet
Datasheet for Dold 0062127, EAN: 4030641621278

Questions & answers

What is the delivery time of Dold 0062127 BI9034 60A AC 50/60Hz 400V 2-11S motor brake device ?

The article Dold 0062127 BI9034 60A AC 50/60Hz 400V 2-11S motor brake device is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0062127 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0062127 BI9034 60A AC 50/60Hz 400V 2-11S motor brake device always at the best possible price. We can give you a discount of 2% on Dold 0062127 BI9034 60A AC 50/60Hz 400V 2-11S motor brake device if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0062127 BI9034 60A AC 50/60Hz 400V 2-11S motor brake device we can offer you a price of 740,62 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
