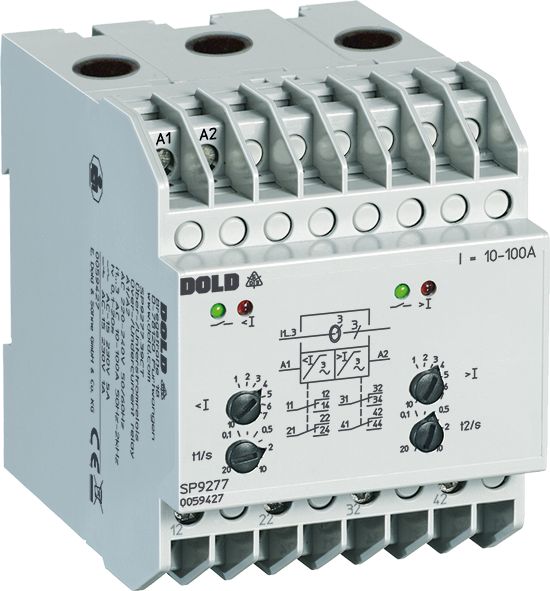

Dold 0062119 SP9277.39CT AC220-240V 7.5-75A under-overcurrent relay

Your rating:
Average rating
product review for Dold 0062119 SP9277.39CT AC220-240V 7.5-75A under-overcurrent relay
( 4.9 / 5 ) 7 ratings
Dold 0062119
This image may differ from the desired article.
548,56 EUR
( 652,79 EUR incl. VAT )
≈ £459.14  |  ≈ $602.87
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0062119 SP9277.39CT AC220-240V 7.5-75A under-overcurrent relay
Datasheet:file_download Download
Lieske Part No.:1319801
Mfg Part No: 0062119
UPC/EAN: 4030641621193
Weight:0.302 kg
Type:SP9277.39CT AC220-240V 7,5-75A
Graduated prices net
From piecesPrice per pieces
3544,45 EUR
6540,33 EUR
9536,22 EUR
12532,10 EUR

Product information for Dold 0062119:

The Dold SP9277.39CT is a 3-phase current relay for monitoring currents in alternating and rotating current networks. It is designed for detecting overcurrent and undercurrent and is suitable for industrial applications as well as railway applications. The device operates on the zero-current principle, in which the output relay is not activated in the event of a fault, enabling safe and reliable signalling of disturbances. The auxiliary voltage is AC 220–240 V, and the relay features an integrated current transformer, covering measurement ranges from 7.5 to 75 A. The time delay is adjustable from 0.1 to 20 seconds, allowing short-term current peaks to be ignored or taken into account.

Applications
This relay is intended for use in enclosures and is particularly suitable for monitoring electrical systems in industry, energy supply, and rail vehicle technology. The 3-phase design enables simultaneous monitoring of multiple phases, which is advantageous in complex network structures. The galvanic isolation between the auxiliary circuit and the measurement circuit ensures high safety and prevents disturbances caused by electrical potential differences.

Functions and Equipment in Detail
The device features two independent output relays, each with 2 changeover contacts, with one relay responsible for overcurrent detection and the other for undercurrent detection. The hysteresis is fixed at approximately 4 %, ensuring stable switching behaviour in the presence of fluctuations within the measurement range. LED indicators signal the operating status: a green LED indicates normal operation, a red LED for I max indicates overcurrent, and a red LED for I min indicates undercurrent.

Technology Explained Simply
The relay uses an integrated current transformer to measure currents from 7.5 to 75 A. Measurement is performed by passing the conductor through the transformer, eliminating the need for additional measuring resistors or sensors. The time delay can be adjusted according to requirements to ignore short-term load peaks or to enable a delayed response in case of sustained disturbances. The width is 70 mm, allowing installation in standard enclosures. Mounting is either on DIN rails or by screw fastening.

Compatibility and Accessories
The device is part of the VARIMETER series from Dold and can be combined with other devices from this series, particularly models from the IP and SP series. The terminal clamps are designed for connection to cables, with clamp designations A1/A2 for auxiliary voltage, i/k for the measurement circuit, and Z1–Z4 for measurement range selection. The terminal clamps for the output relays are clearly labelled to enable unambiguous assignment.

Mounting and Installation
Mounting is performed in enclosures, with the width of 70 mm and the enclosure design (S-type) enabling easy integration into existing systems. The terminal clamps are arranged at the top, supporting convenient wiring. The devices are specified according to IEC/EN 60255-1, ensuring compliance with international standards for measuring and protection devices.

Advantages in Operation
Thanks to the separate output relays for overcurrent and undercurrent, as well as the adjustable time delay, the device offers high flexibility in adapting to different requirements. The LED indicators allow for quick visual monitoring of the operating status. The galvanic isolation between the measurement and auxiliary circuits increases safety and prevents interference. The zero-current principle ensures that the relay is not activated in the event of a fault, which is advantageous in safety-critical applications.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Output contacts2 x 2 C/O contacts
Width70 mm
TypeSP 9277CT
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping2 x 2 changeover contacts
Measuring range7,5 - 75 A
Time delay0,1 - 20 s
Variant3-phase current relay with built in CT. De-energized on trip


Product data sheet
Datasheet for Dold 0062119, EAN: 4030641621193

Questions & answers

What is the delivery time of Dold 0062119 SP9277.39CT AC220-240V 7.5-75A under-overcurrent relay ?

The article Dold 0062119 SP9277.39CT AC220-240V 7.5-75A under-overcurrent relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0062119 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0062119 SP9277.39CT AC220-240V 7.5-75A under-overcurrent relay always at the best possible price. We can give you a discount of 2% on Dold 0062119 SP9277.39CT AC220-240V 7.5-75A under-overcurrent relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0062119 SP9277.39CT AC220-240V 7.5-75A under-overcurrent relay we can offer you a price of 544,45 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
