Dold 0061957 IK9171.11/030 3/N AC110/64V 0.5–20 S undervoltage relay

Your rating:
Average rating
product review for Dold 0061957 IK9171.11/030 3/N AC110/64V 0.5–20 S undervoltage relay
( 4.6 / 5 ) 17 ratings

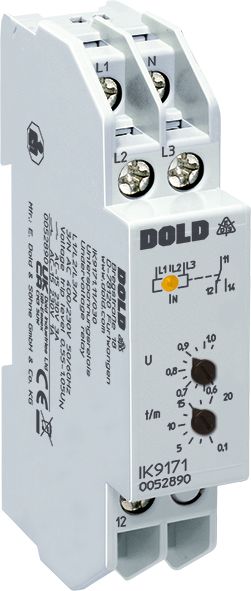

Dold 0061957
This image may differ from the desired article.
116,97 EUR
( 139,19 EUR incl. VAT )
≈ £97.90  |  ≈ $128.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0061957 IK9171.11/030 3/N AC110/64V 0.5–20 S undervoltage relay
Datasheet:file_download Download
Lieske Part No.:1319788
Mfg Part No: 0061957
UPC/EAN: 4030641619572
Weight:0.073 kg
Type:IK9171.11/030 3AC110/64V ,55-1,05UN
Graduated prices net
From piecesPrice per pieces
5116,09 EUR
10115,22 EUR
15114,34 EUR
20113,46 EUR

Product information for Dold 0061957:

The Dold undervoltage relay IK9171.11/030 is an industrial-grade monitoring device for detecting undervoltages in three-phase power networks. It is used for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 and DIN VDE 0108. The device operates on the rest current principle, whereby the output relay is not activated in the event of a fault, and is operational without auxiliary voltage. It is designed for mounting in installation and industrial distributors according to DIN 43 880 and has a width of 17.5 mm.

Applications
This relay is designed for monitoring 3-phase networks with neutral conductor connection, although single-phase connection is also possible. It is used to activate safety-critical functions such as emergency lighting or backup power supply in the event of voltage dips or phase failure. The application is particularly common in industrial plants, building technology, and for critical consumers that must be switched off during voltage fluctuations.

Functions and Equipment in Detail
The device features an adjustable pickup value in the range of 0.55 to 1.05 times nominal voltage (Un). The nominal voltage is 3/N AC 110/64 V, with a maximum nominal voltage up to 3/N AC 500/290 V. The time delay t1 for fault indication is adjustable between 0.5 and 20 seconds. The LED indicator signals the status of the output relay — a yellow LED lights up when the contact is activated. Phase sequence is irrelevant, as the device operates independently of phase order.

Technology Explained Simply
The relay monitors network voltage by measuring the arithmetic mean of each phase against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). In single-phase connection, terminals L1, L2, and L3 must be connected. The time delay t1 is only effective if the phase voltage L1-N (IK/SK 9171) or L3-N (IL/SL 9171) is at least 0.5 Un. After switching on the operating voltage, the device initially enters the good state, even in the event of an initial fault, and only switches to the fault state after the time delay t1 has elapsed.

Compatibility and Accessories
The device is suitable for 1- and 3-phase networks and can be used in 3/N AC 110/64 V as well as in other voltage ranges up to 3/N AC 500/290 V. It is equipped with a changeover contact (1 C/O contact) that can be used for controlling auxiliary consumers or switching operations. The design is intended for installation distributors, with connection terminals located at the bottom and a depth of 59 mm.

Mounting and Installation
Mounting is carried out in standard installation distributors according to DIN 43 880. The width of 17.5 mm allows for compact placement in distributors. The connection terminals are located at the bottom, which facilitates integration into existing switchgear. The frequency range coverage is between 45 and 65 Hz.

Operational Advantages
The relay provides reliable network monitoring without external auxiliary voltage. The adjustable parameters such as pickup value and time delay allow application-specific adaptation. The LED indicator provides visual status monitoring. The design is suitable for use in industrial and commercial installations, with a maximum nominal voltage of up to 500 V AC permitted. The hysteresis is approximately 4 %, ensuring stable switching behavior. The device complies with the standard IEC/EN 60255-1 and bears the UKCA mark.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 110 / 64 V
Response value0,55 - 1,05 Un
Time delay0,5 - 20 s
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Settable time delay t1. Settable response value


Product data sheet
Datasheet for Dold 0061957, EAN: 4030641619572

Questions & answers

What is the delivery time of Dold 0061957 IK9171.11/030 3/N AC110/64V 0.5–20 S undervoltage relay ?

The article Dold 0061957 IK9171.11/030 3/N AC110/64V 0.5–20 S undervoltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0061957 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0061957 IK9171.11/030 3/N AC110/64V 0.5–20 S undervoltage relay always at the best possible price. We can give you a discount of 2% on Dold 0061957 IK9171.11/030 3/N AC110/64V 0.5–20 S undervoltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0061957 IK9171.11/030 3/N AC110/64V 0.5–20 S undervoltage relay we can offer you a price of 116,09 EUR per piece. The more you buy, the cheaper the article will be.
