Dold 0061896 LH5946.48/61 0.2-4V UH DC24V 0.2-6S still-running monitor

Your rating:
Average rating
product review for Dold 0061896 LH5946.48/61 0.2-4V UH DC24V 0.2-6S still-running monitor
( 4.3 / 5 ) 9 ratings
Dold 0061896
This image may differ from the desired article.

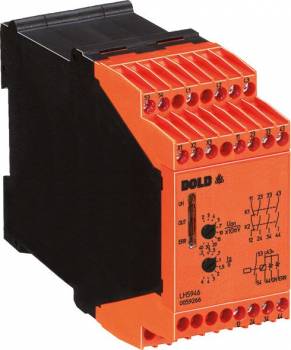

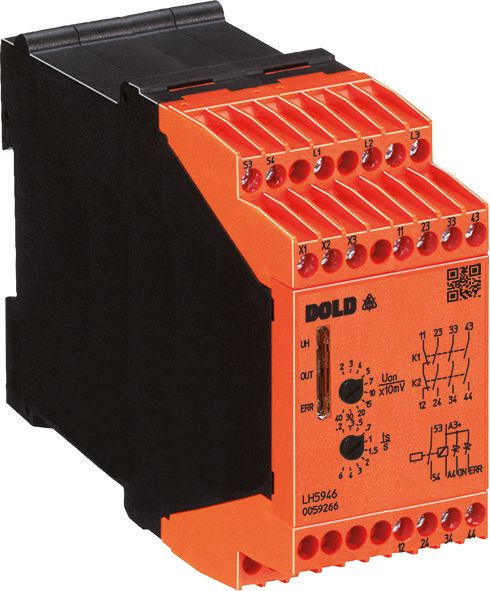

Dold 0061896Dold 0061896
736,56 EUR
( 876,51 EUR incl. VAT )
≈ £616.50  |  ≈ $809.48
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0061896 LH5946.48/61 0.2-4V UH DC24V 0.2-6S still-running monitor
Datasheet:file_download Download
Lieske Part No.:1563379
Mfg Part No: 0061896
UPC/EAN: 4030641618964
Weight:0.427 kg
Type:LH5946.48/61 0,2-4V UH DC24V 0,2-6S
Graduated prices net
From piecesPrice per pieces
3708,94 EUR
6681,32 EUR
9653,70 EUR
12626,08 EUR

Product information for Dold 0061896:

The stillstand monitor LH5946.48/61 0.2-4V UH DC24V 0.2-6S from Dold is a safety-relevant, sensorless monitoring switch for direction-independent detection of stillstand in single- and three-phase electric motors. The device measures the induced voltage in the decelerating motor and detects stillstand as soon as this voltage drops below the set threshold of 0.2 to 4 V. The function operates without additional sensors such as encoders or proximity switches, simplifying installation and reducing system complexity. The auxiliary voltage is DC 24 V, and the device width is 45 mm, making it suitable for standard control panels.

Applications

The stillstand monitor is designed for use in safety-critical applications, particularly in industrial automation, where safe detection of motor stillstand is required. It can be used in installations with frequency converters, as it measures induced voltage directly at the motor and is not dependent on constant speed. The application is independent of motor rotation direction, increasing operational flexibility. The maximum measured motor voltage is 690 V, making the device suitable for a wide range of motors in industrial environments.

Functions and Equipment in Detail

The device features forced-guided safety output contacts with a configuration of 3 NO contacts and 1 NC contact, rated for AC 250 V. The maximum thermal current load is 5 A. Additionally, two semiconductor alarm outputs and one NO contact as an alarm output are integrated. The trigger values are adjustable in the range of 0.2 to 4 V, and the stillstand time can be set between 0.2 and 6 seconds. These adjustment options allow application-specific adaptation to different motor and system conditions.

Technology Explained Simply

The stillstand monitor operates based on the induced voltage generated when a motor decelerates. When the motor stops, this voltage drops below the set threshold, causing the device to detect stillstand and switch the output contacts accordingly. Wire break detection in the measurement circuit ensures that a broken connection in the measurement circuit is detected, increasing safety. LED indicators signal the operating status, motor stillstand, and wire break, enabling quick diagnosis. The connection technology includes fixed screw terminals as well as removable spring and screw terminals, allowing flexible installation.

Compatibility and Accessories

The device is compatible with the safety mounting bracket SAFEMASTER STS, facilitating integration into existing safety architectures. Certifications include UL-listed C/US, TÜV, UKCA, and CCC, enabling use in various markets. The safety functions comply with up to Category 4 and PL e according to EN ISO 13849-1, as well as up to SIL 3 according to IEC/EN 62061, confirming suitability for high-safety applications. The rated voltage is suitable for both AC and DC, increasing flexibility in power supply.

Mounting and Installation

Mounting is done in standard control panels with a width of 45 mm. The connection terminals are designed for secure and reliable connections, with fixed screw terminals ensuring a stable connection. Commissioning requires setting the trigger voltage and stillstand time, which can be done according to the instructions. The LED indicators support checking the operating status during commissioning.

Operational Advantages

The sensorless operation reduces the number of required components and lowers maintenance effort. The fast response time and direction-independent detection increase system reliability. The integrated alarm outputs allow direct connection to controls or warning systems. The certifications and safety approvals ensure compliance with applicable standards and facilitate plant approval.

Technical data
1- / 2-channel2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ClassificationSensorless
ConnectionPluggable cage clamp terminals, Pluggable screw terminals, Screw terminals
Forcibly guided output contacts max.1 NC contact, 3 NO contacts
Indicator contacts1 NO contact, 2 Semiconductor monitoring outputs
Measuring motor voltage max.690 V
Nominal voltageAC, DC
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width45 mm
TypeLH 5946
Variant
Auxiliary voltageDC 24 V
Contact equipping3 NO contacts, 1 NC contact
Response value0,2 - 4 V
Terminal typescrew terminals fixed
Time range0,2 - 6 s
Approvals and MarkingsUL-listed C/US, TÜV, UKCA, CCC


Product data sheet
Datasheet for Dold 0061896, EAN: 4030641618964
