Dold 0061250 IL5991 AC 50/60 Hz 230 V 10 S storm relay extension

Your rating:
Average rating
product review for Dold 0061250 IL5991 AC 50/60 Hz 230 V 10 S storm relay extension
( 4.4 / 5 ) 12 ratings

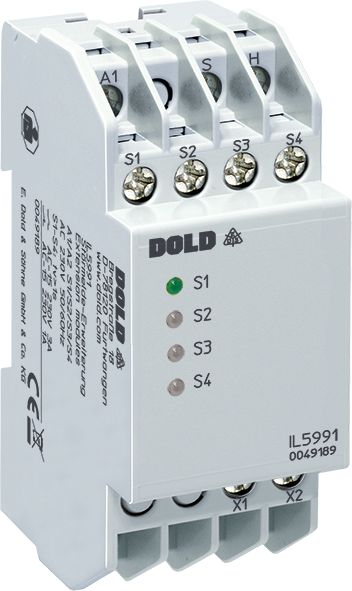

Dold 0061250
This image may differ from the desired article.
163,26 EUR
( 194,28 EUR incl. VAT )
≈ £136.65  |  ≈ $179.42
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0061250 IL5991 AC 50/60 Hz 230 V 10 S storm relay extension
Datasheet:file_download Download
Lieske Part No.:958397
Mfg Part No: 0061250
UPC/EAN: 4030641612504
Weight:0.132 kg
Type:IL5991 AC50/60HZ 230V 10S
Graduated prices net
From piecesPrice per pieces
5157,14 EUR
10151,02 EUR
15144,89 EUR
20138,77 EUR

Product information for Dold 0061250:

The Dold IL5991 AC50/60HZ 230V 10S is an expansion device for central fault alarm systems, specifically designed for monitoring industrial plants and buildings. It serves as an add-on module for the main units IL 5990 or SL 5990 and enables the integration of additional fault alarm inputs. The device is designed according to DIN 19235 and offers flexible expansion from 4 to 160 fault alarm inputs, making it suitable for complex monitoring systems. The width is 35 mm, and it is supplied in I-form, featuring a depth of 61 mm and bottom-mounted connection terminals for installation and industrial distributors according to DIN 43880. Mounting is done via a DIN rail, enabling quick and secure installation in enclosures or distributors.

Applications
This device is intended for use in industrial and commercial facilities where central monitoring of faults or errors is required. It is used in systems requiring continuous monitoring of machines, plants, or building components, such as in production facilities, power supply systems, or building technology. The expandability up to 160 inputs makes it particularly suitable for large, distributed monitoring systems where multiple sensors or relays need to be connected.

Functions and Equipment in Detail
The IL5991 features four fault alarm inputs, each equipped with an LED for optical indication. The response delay is 10 seconds, allowing delayed reaction to short-term disturbances and thus reducing false alarms. The inputs can be switched between operating current principle (output relay activated in fault condition) and resting current principle (output relay not activated in fault condition) via bridges X1-X2. This allows application-specific configuration depending on fault detection requirements. The front-mounted reset button QH enables manual reset of alarms and is intended for external alarm devices. The contact configuration includes two normally open contacts, each for central alarm and horn use.

Technology Explained Simply
The rated voltage is AC 230 V at a frequency of 50/60 Hz, with an alternative operating voltage of AC/DC 24 V also possible. The rated consumption is 8 VA. The fault pulse duration must be at least 100 ms to ensure reliable detection. The reset pulse duration is at least 200 ms. The output relays are rated for a thermal current of 5 A and have a switching capacity of AC 15, 1 A / AC 230 V. The electrical life expectancy is at least 1.5 million switching operations at 1 A and AC 230 V, and the mechanical life expectancy is at least 30 million switching operations. Short-circuit resistance is ensured by a maximum fuse rating of 4 A gG/gL. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -25 °C to +60 °C. The operating altitude is limited to below 2000 m. The enclosure protection rating is IP 40, and the terminals are rated IP 40. Conductor connection options include 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with ferrules according to DIN 46228/1-/-2/-3/-4. The tightening torques for the terminals are 0.8 Nm.

Compatibility and Accessories
The device is designed as an expansion module for the main units IL 5990 and SL 5990. It can be combined with the accessory alarm device IK/SK 8832 to generate acoustic alerts. The bus lines H and S carry low voltage and must not be subjected to foreign voltages. In cases of inductive or capacitive interference from high-current lines, the use of shielded cables is recommended, with the shield connected to PE. Connections A1, S1-S4, and QH must be connected to the same phase, as must the normally open contacts 13-14 and 23-24. The bridge X1-X2 allows selection between operating and resting current principle for the inputs.

Mounting and Installation
Mounting is done via a DIN rail (DIN 43880), enabling quick and secure fixation in standard distributor or enclosure environments. The terminals are located at the bottom, facilitating wiring in installation distributor boxes. The terminals are flat terminals with self-lifting connection washers, ensuring simple and secure connections. Conductor cross-sections are limited to 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with ferrules. The tightening torques are 0.8 Nm.

Operational Advantages
The IL5991 offers a flexible and scalable solution for fault alarm monitoring. The expandability up to 160 inputs enables central control of large facilities. The integrated LED indication and front-mounted reset button QH simplify visual and manual operation. The ability to choose between operating and resting current principle according to application increases flexibility. The high life expectancy of the relays and the robust construction with IP 40 protection rating ensure reliable operation in industrial environments. Compatibility with the main units IL 5990 and SL 5990 as well as the alarm device IK/SK 8832 enables modular system expansion.

Technical data
Alarm inputs4
Alarm inputs extendable up to160
Enclosure designDistribution board
Operating principleDe-energized on trip, Energized on trip
Optical signalLED
Width35 mm
TypeIL 5991
Optional buzzerYes
Variant
Contact equipping2 x 1 NO contact
Nominal voltageAC 230 V
Operate delay10 s


Product data sheet
Datasheet for Dold 0061250, EAN: 4030641612504
