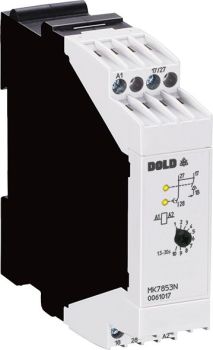

Dold 0061017 MK7853N AC220-240V 30S 35MS star-delta time relay

Your rating:
Average rating
product review for Dold 0061017 MK7853N AC220-240V 30S 35MS star-delta time relay
( 4.5 / 5 ) 11 ratings
Dold 0061017
This image may differ from the desired article.
137,81 EUR
( 163,99 EUR incl. VAT )
≈ £115.35  |  ≈ $151.45
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0061017 MK7853N AC220-240V 30S 35MS star-delta time relay
Datasheet:file_download Download
Lieske Part No.:958213
Mfg Part No: 0061017
UPC/EAN: 4030641610173
Weight:0.165 kg
Type:MK7853N AC220-240V 30S 35MS
Graduated prices net
From piecesPrice per pieces
5136,78 EUR
10135,74 EUR
15134,71 EUR
20133,68 EUR

Product information for Dold 0061017:

The Dold MK7853N AC220-240V 30S 35MS is a static star-delta time relay for use in industrial enclosures. It is used to control three-phase motors in star-delta starting mode, limiting the starting current and reducing the load on the network and protective devices. The device features two separate output relays, which are activated sequentially to start the motor in star configuration and then switch to delta configuration after the set delay time has elapsed.

Applications
This time relay is designed for use in industrial plants where three-phase motors with high starting current are operated. Typical applications include conveyor systems, pumps, fans, and other drives requiring a gentle motor start to avoid network disturbances and mechanical stress. Compliance with the standard IEC/DIN EN 61812-1 ensures reliability and safety in industrial operation.

Functions and equipment in detail
When the operating voltage is applied, the first relay (Relay 1) is energized and switches the motor into star configuration. After the set starting time has elapsed, Relay 1 de-energizes. After a fixed contact switching time of 35 ms, the second relay (Relay 2) is activated and switches the motor into delta configuration, allowing the motor to run continuously at full power. The time delay is continuously adjustable in the range of 0.5 to 100 seconds, with the maximum time range for this product being 30 seconds. The repeat accuracy is less than ± 0.5 %, ensuring high precision in repeated starts.

Technology explained simply
The relay operates with a rated voltage of AC 220–240 V and is designed for an operating voltage range of 0.8 to 1.1 times the rated voltage. Voltage influence values are below 1 %, ensuring stable operation even with voltage fluctuations. The width is 22.5 mm, making it suitable for standard enclosure mounting. The contact configuration includes a make-before-break contact and a delayed-closing contact, with the output contacts comprising one close contact and one changeover contact. The contacts are coated with AgSnO₂ + 0.2 μm Au, ensuring high switching life and corrosion resistance. The electrical life is at least 500,000 switching operations at 3 A and AC 230 V, and the mechanical life is 20 million switching operations.

Compatibility and accessories
The device is designed for use with three-phase motors operated via star-delta starting. The connection terminals are rated for conductor cross-sections up to 2.5 mm² solid or 1.5 mm² stranded wire with ferrules and plastic collars according to DIN 46228-1/-2/-3/-4. Optional plug-in connection blocks are available, enabling quick replacement of the device. The terminals are available as screw terminals or spring clamp terminals, with the exact configuration varying depending on the order variant.

Mounting and installation
The time relay is intended for mounting in enclosures. The width of 22.5 mm allows installation in standard control panels. The connection terminals are clearly labeled (A1/A2 for power supply, 17/18 for star contactor, 27/28 for delta contactor), simplifying installation. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -45 °C to +60 °C. The protection rating is IP 40 for the housing and IP 40 for the terminals, providing protection against touch and dust, but not against water.

Advantages in operation
By using the star-delta configuration, the motor starting current is reduced to approximately one-third, reducing network load and preventing tripping of overcurrent protection devices. The reduced power consumption during the starting phase protects electrical components and extends the motor’s service life. The high repeat accuracy and stable operation under voltage fluctuations ensure reliable operation in industrial plants. The integrated LEDs indicate the operating status of the relays, facilitating diagnosis in case of faults.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact, 1 NO contact
Time function(s)Star-Delta-Timer
Time range0,5 s - 100 s
Width22,5 mm
TypeMK 7853N
Variant
Contact changeover time35 ms
Contact equipping1 contact fleeting on make, 1 NO contact on delay
Nominal voltageAC 220 - 240 V
Time range max. value30 s


Product data sheet
Datasheet for Dold 0061017, EAN: 4030641610173
