Dold 0060942 MK9143N.38/600 45-65Hz UH AC400V mains frequency monitor Tanl=0-30s

Your rating:
Average rating
product review for Dold 0060942 MK9143N.38/600 45-65Hz UH AC400V mains frequency monitor Tanl=0-30s
( 4.9 / 5 ) 8 ratings
Dold 0060942
This image may differ from the desired article.
264,60 EUR
( 314,87 EUR incl. VAT )
≈ £221.47  |  ≈ $290.80
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0060942 MK9143N.38/600 45-65Hz UH AC400V mains frequency monitor Tanl=0-30s
Datasheet:file_download Download
Lieske Part No.:1572704
Mfg Part No: 0060942
UPC/EAN: 4030641609429
Weight:0.235 kg
Type:MK9143N.38/600 45-65Hz UH AC400V
Graduated prices net
From piecesPrice per pieces
4262,62 EUR
8260,63 EUR
12258,65 EUR
16256,66 EUR

Product information for Dold 0060942:

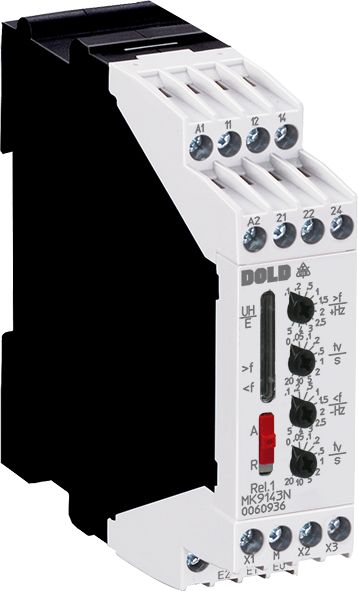

The network frequency monitor MK9143N.38/600 from Dold is an industrial frequency monitoring switch used for controlling 50- and 60-Hz power supplies for over- and under-frequency conditions. The device is specifically designed for use in enclosures and serves for monitoring self-generation systems, local power supplies, as well as generators and power units. It features stepless adjustability of alarm thresholds in the range of 45 to 65 Hz, allowing flexible adaptation to different requirements. The hysteresis for over- and under-frequency thresholds is separately adjustable and ranges from 0.5 to 20 %, enabling precise and reproducible response to frequency deviations. The auxiliary voltage is AC 400 V, and the device requires auxiliary voltage to ensure reliable operation. The width is 22.5 mm, enabling compact mounting in standard switchboards.

Applications

The frequency monitor MK9143N.38/600 is intended for monitoring power supplies in industrial and technical installations, particularly in systems with self-generated power. It is used for monitoring generators, power units, and local networks, where stable frequency is critical for the safe operation of electrical machines and installations. The interference-resistant measuring device ensures reliable measurement even under difficult electrical conditions. The separate relay outputs for over- and under-frequency enable differentiated responses, such as load disconnection or alarm triggering in case of frequency deviations.

Functions and Equipment in Detail

The device features two changeover contacts, each designated for over- and under-frequency monitoring. The alarm thresholds are steplessly adjustable in the range of 45 to 65 Hz, allowing precise adaptation to specific operating conditions. The hysteresis is also adjustable, ensuring the device does not trigger uncontrollably due to minor fluctuations around the threshold. The start-up bypass can be activated via terminals and ranges from 0 to 30 seconds, allowing short-term frequency deviations during machine start-up to be ignored. The output relays for under-frequency alarm operate on the de-energized principle, meaning they drop out when the frequency falls below the set value. For over-frequency, the relay is switchable to either energized or de-energized principle, allowing the switching logic to be adapted to the requirements of the installation.

Technology Explained Simply

The frequency monitor measures the network voltage frequency via a universal input designed for voltages from AC 40 to 550 V. The measurement is performed with high accuracy and fast response time, enabling timely actions in case of frequency deviations. The response delay is activated, meaning the device does not react immediately upon reaching the threshold values but incorporates a short delay to avoid false triggering due to brief disturbances. The LED indicators signal the operating status of the auxiliary voltage, the input frequency, and the alarm states for over- and under-frequency. The programming terminals allow configuration of functions such as alarm memory or auto-reset, enabling flexible integration into various control systems.

Compatibility and Accessories

The frequency monitor is designed for use in enclosures and can be mounted in standard switchboards. The width of 22.5 mm allows for compact placement. The auxiliary voltage of AC 400 V is required, enabling use in systems with corresponding supply voltage. It is equipped with a universal frequency measuring input suitable for voltages from AC 40 to 550 V, ensuring broad compatibility with various network voltages. The output relays are designed for integration into control and protection systems, with separate contacts for over- and under-frequency enabling differentiated responses.

Mounting and Installation

Mounting is performed in enclosures using screw terminals. The width of 22.5 mm corresponds to the standard for DIN rail mounting, enabling easy integration into existing switchgear. The connection terminals are clearly labeled, with inputs for frequency measurement (E0-E1-E2) and auxiliary voltage (A1-A2), as well as outputs for relays (11-14, 21-24) distinctly marked. The programming terminals (X1-X3) allow configuration of functions such as start-up bypass, alarm memory, and reset behavior. The LED indicators support commissioning and maintenance by visually displaying the operating status.

Advantages in Operation

The MK9143N.38/600 offers precise and reliable frequency monitoring with fast response time. The stepless adjustability of alarm thresholds and separate hysteresis adjustment enable customized adaptation to specific requirements. The start-up bypass prevents false triggering during machine start-up. The LED indicators facilitate diagnosis and maintenance. The universal input voltage range of AC 40 to 550 V and compatibility with AC 400 V auxiliary voltage increase operational flexibility. The device is specified according to IEC / EN 60255-1, ensuring compliance with international standards for measuring and protective devices in electrical engineering.

Technical data
1- / 3-phase1
Enclosure designSwitch cabinet
Measuring range max.50/60 Hz
Output contacts2 x 1 C/O contacts
Standard measuring range50/60 Hz
Width22,5 mm
TypeMK 9143N
Auxiliary voltage requiredYes
Operate delayYes
Variant
Alarm delaywithout
Auxiliary voltageAC 400 V
Contact equipping2 x 1 changeover contact
Response value45 - 65 Hz
Start up delay0 - 30 s
VariantVariable tripping values. Adjustable hysteresis. Start up delay activatable via terminals


Product data sheet
Datasheet for Dold 0060942, EAN: 4030641609429
