Dold 0060744 MK9163N.12PC/100/61 AC/DC24V thermistor motor protection relay

Your rating:
Average rating
product review for Dold 0060744 MK9163N.12PC/100/61 AC/DC24V thermistor motor protection relay
( 4.5 / 5 ) 2 ratings

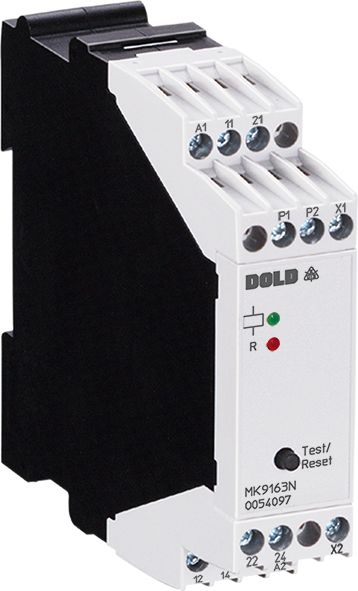

Dold 0060744
This image may differ from the desired article.
113,81 EUR
( 135,43 EUR incl. VAT )
≈ £95.26  |  ≈ $125.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0060744 MK9163N.12PC/100/61 AC/DC24V thermistor motor protection relay
Datasheet:file_download Download
Lieske Part No.:1564195
Mfg Part No: 0060744
UPC/EAN: 4030641607449
Weight:0.185 kg
Type:MK9163N.12PC/100 AC/DC24V
Graduated prices net
From piecesPrice per pieces
5112,10 EUR
10110,40 EUR
15108,69 EUR
20106,98 EUR

Product information for Dold 0060744:

The Thermistor motor protection relay MK9163N.12PC/100 AC/DC24V from Dold is an enclosure device for temperature monitoring of electric motors and other technical components. It serves to protect against thermal overloads caused by high switching frequency, heavy start-up, single-phase operation, impaired cooling, or high ambient temperature. The application extends beyond motor monitoring and also includes temperature control of bearings, gearboxes, oils, and coolants. The device features one input, to which up to six thermistors can be connected to monitor the temperature of multiple points simultaneously.

Applications

The relay is designed for use in industrial plants, machine controls, and drive technology. It is particularly suitable for applications requiring reliable temperature monitoring to prevent damage to motors or other components due to overheating. The ability to detect wire breaks in the sensor circuit and short circuits increases safety and enables quick fault localization. The operating temperature range is between -20 °C and +60 °C, making the device usable even in climatically demanding environments.

Functions and equipment in detail

The device operates on the principle of residual current, where the output relay is not activated in the event of a fault. This means that the output contacts are closed during normal operation and open when a fault is detected (e.g., overtemperature or sensor break). Fault detection occurs at a pickup value of 3.2 to 3.8 kΩ and a drop-out value of 1.5 to 1.8 kΩ. In the event of an interruption in the measurement circuit, a value above 3.8 kΩ is detected. The LED indicator displays the status of the auxiliary voltage and contact position, facilitating diagnosis during operation.

Technology explained simply

The auxiliary voltage is AC/DC 24 V, with support also for AC voltages of 110, 230, or 400 V at 50/60 Hz. The voltage ranges are 0.8 to 1.1 times the nominal voltage for AC and 0.9 to 1.25 times (with 10 % ripple) or 0.8 to 1.1 times (with 48 % ripple) for DC. The nominal power consumption is 1.5 VA for AC and 0.85 W for DC. The switching-on delay is under 40 ms, and the switching-off delay is under 100 ms. The maximum bridging time during auxiliary voltage failure is 20 ms. The output contacts consist of two changeover contacts rated for a switching capacity of 1.5 A at AC 230 V (AC 15) and 1 A at DC 24 V (DC 13). The electrical life is at least 1.5 million switching operations at 4 A, AC 230 V, and cosϕ = 0.6.

Compatibility and accessories

The device is equipped with removable terminal blocks using spring-cage terminals. Conductor connection options include 2 x 1.5 mm² stranded wire with ferrule and plastic sleeve, and 2 x 2.5 mm² solid wire according to DIN 46 228-1/-2/-3/-4. The width is 22.5 mm, making it suitable for standard enclosure mounting. Approvals include UL-rec. C/US, UKCA, and CCC. The variant features reset and test functions via a button on the device and via terminals X1/X2. The remote RESET function is performed via a make contact that is potential- and voltage-free. The input is not galvanically separated from the measurement input P1/P2.

Mounting and installation

The device is mounted in enclosures and requires secure fastening to a vertical mounting rail. The terminal blocks allow for quick replacement of the device. Connections for auxiliary voltage (A1/A2) and thermistors (P1/P2) are clearly marked. The remote RESET terminals X1/X2 are also labeled and can be connected to an external switch. Mounting is tool-free, as the spring-cage terminals enable easy connections.

Advantages in operation

Reliable temperature monitoring and quick fault localization are key advantages. The integrated LED indicator allows visual inspection of the operating status. The ability to reset the fault via a button on the device or via X1/X2 offers operational flexibility. The support for up to six thermistors on one input reduces the number of required devices. Compliance with standards EN 60947-5-1 and EN 60947-8 ensures conformity with industrial safety requirements. The mechanical life of at least 30 million switching operations ensures a long service life.

Technical data
Auxiliary voltageAC, AC/DC
ClassificationThermistor-Motorschutz
Enclosure designSwitch cabinet
Measuring range max.> 3.8 kΩ
Output contacts2 C/O contacts
Width22,5 mm
TypeMK 9163N
Variant
Contact equipping2 changeover contacts
Nominal voltageAC/DC 24 V
Terminal typepluggable terminal blocks with cage clamp terminals
Approvals and MarkingsUL-rec. C/US, UKCA, CCC
VariantWith RESET and test function via built in button and X1/X2


Product data sheet
Datasheet for Dold 0060744, EAN: 4030641607449
