Dold 0060646 IL5880.12 AC50-400Hz 480-500V insulation monitor 5-100 kOhm

Your rating:
Average rating
product review for Dold 0060646 IL5880.12 AC50-400Hz 480-500V insulation monitor 5-100 kOhm
( 4.8 / 5 ) 4 ratings

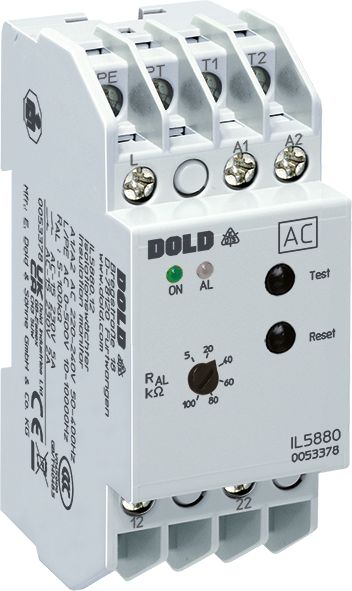

Dold 0060646
This image may differ from the desired article.
251,89 EUR
( 299,75 EUR incl. VAT )
≈ £210.83  |  ≈ $276.83
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0060646 IL5880.12 AC50-400Hz 480-500V insulation monitor 5-100 kOhm
Datasheet:file_download Download
Lieske Part No.:1564196
Mfg Part No: 0060646
UPC/EAN: 4030641606466
Weight:0.172 kg
Type:IL5880.12 AC50-400HZ 480-500V
Graduated prices net
From piecesPrice per pieces
4248,11 EUR
8244,33 EUR
12240,55 EUR
16236,78 EUR

Product information for Dold 0060646:

The IL 5880.12 insulation monitor from Dold is a device for monitoring insulation resistance in ungrounded AC and three-phase networks (IT systems) with a rated voltage of AC 0 to 500 V. The device operates on the idle current principle, whereby the output relay is not activated in the event of a fault, enabling safe and reliable fault detection. The auxiliary voltage is AC 480 to 500 V in the frequency range of 50 to 400 Hz, allowing monitoring of de-energized systems as well. The trip thresholds are adjustable via a potentiometer on the front of the device and range from 5 to 100 kΩ. An LED indicates an earth fault, illuminating when the set alarm threshold is undershot. The width is 35 mm, and the device is designed for mounting in installation distributors according to DIN 43880.

Applications

The IL 5880.12 is designed for monitoring pure AC and three-phase networks operating in the range of 0 to 500 V and 10 to 10000 Hz. It is particularly suitable for industrial applications and railway installations, where continuous monitoring of insulation condition is required. The separate supply voltage also enables monitoring of de-energized consumers, such as motor windings that must be switched on in an emergency. Compliance with standard IEC/EN 61557-8 ensures conformity with international standards for insulation monitoring devices.

Functions and Equipment in Detail

The device features two changeover contacts as contact configuration, used for signal transmission in the event of an earth fault. The LED indicators show the operating status: a green LED indicates readiness for operation, while a red LED lights up in the event of an earth fault. The alarm threshold is user-friendly adjustable via a potentiometer on the front. Additionally, reset and test buttons are integrated, with the option to connect external reset and test buttons. The function of the output relays is programmable, allowing selection between memory and hysteresis behavior. With memory behavior, the fault condition remains stored until manually reset; with hysteresis behavior, the condition is automatically reset once the insulation resistance rises above the alarm threshold again.

Technology Explained Simply

The insulation monitor operates with a galvanically isolated measurement circuit, separating the auxiliary voltage, measurement circuit, and output contacts from each other. This increases safety and prevents interference caused by electrical coupling. Monitoring is performed by measuring the insulation resistance between the network and the protective earth (PE). When the resistance falls below the set alarm threshold, a signal is triggered via the changeover contacts. The width of 35 mm allows mounting in standard installation distributors.

Compatibility and Accessories

The device is designed for mounting in installation distributors according to DIN 43880 and can be mounted either on a DIN rail or via screw mounting. It is part of the VARIMETER IMD series from Dold and can be combined with other devices in this series, particularly variants that offer an additional pre-alarm threshold (e.g., IL/SL 5880/200). The connection terminals are located at the bottom, facilitating integration into standard distributors. The UKCA and CCC certifications confirm compliance with applicable safety and quality standards.

Mounting and Installation

Mounting is performed in installation distributors with a depth of 61 mm. The connection terminals are positioned at the bottom, simplifying wiring. The front of the device provides access to the alarm threshold adjustment and the integrated reset and test buttons. DIN rail or screw mounting allows flexible installation depending on requirements. Connection designations are detailed in the datasheet, with terminals provided for auxiliary voltage (A1, A2), monitored network (L), protective earth (PE), external buttons (PT, LT1, LT2), and output contacts (11-14, 21-24).

Advantages in Operation

The IL 5880.12 provides preventive protection against fires and damage to electrical installations through early detection of insulation faults. The simple adjustment of the alarm threshold via a potentiometer allows application-specific customization. Galvanic isolation increases safety, and programmable functions (memory or hysteresis behavior) offer flexibility in fault handling. The integrated LEDs provide clear visual indication of the operating status, simplifying maintenance and diagnostics. Compatibility with IT systems up to 500 V and the ability to monitor de-energized systems expand the application range in industrial and mobile applications.

Technical data
Enclosure designDistribution board
IMD typeAC
Nominal voltage IT systemAC 0 - 500 V
Response value5 - 500 kΩ
Response value typeAdjustable
Width35 mm
TypeIL 5880
Earth fault indicatorYes
Variant
Alarm value5 - 100 kOhm
Auxiliary voltageAC 480 - 500 V 50 - 400 Hz
Contact equipping2 changeover contacts
Prewarning valueWithout
Approvals and MarkingsUKCA, CCC
VariantAdjustable alarm value. De-energized on trip


Product data sheet
Datasheet for Dold 0060646, EAN: 4030641606466
