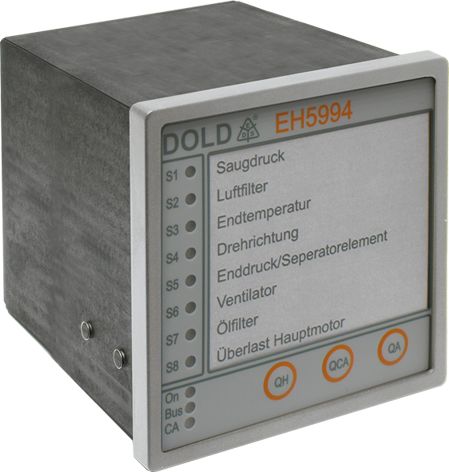

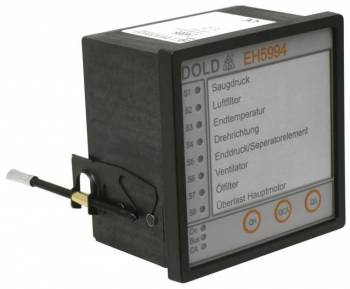

Dold 0060589 EH5994 AC230V 50/60Hz alarm panel
|
352,45 EUR |
|||||||||||
|
( 419,42 EUR incl. VAT ) ≈ £295.00 | ≈ $387.34 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1323584 | ||||||||||
| Mfg Part No: | 0060589 | ||||||||||
| UPC/EAN: | 4030641605896 | ||||||||||
| Weight: | 0.335 kg | ||||||||||
| Type: | EH5994 AC230V 50/60Hz | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0060589:
Alarm panel
This device serves as a visual indicator for fault signals and enables quick identification of affected inputs. The eight LED indicators are directly integrated into the device and signal the status of the respective alarm inputs. Visual alerting is achieved via LED indicators, which react differently depending on the operating mode (e.g. new value or first value alarm). The functions are adjustable, with operating modes defined according to DIN 19235. The display can be operated in various modes, including as a collective fault alarm with memory or non-memory function.
Functions and equipment in detail
The EH 5994 alarm panel features front-mounted reset buttons for acknowledging horn and collective alarm signals. These buttons allow direct interaction with the device to confirm alarms. The option to connect a remote reset button is also available, enabling acknowledgment from remote locations. The remote reset function can be activated depending on system settings. The device is bus-capable and can be integrated into a higher-level monitoring system.
Technology explained simply
Signalling is achieved via eight LED indicators, each assigned to an alarm input. The LEDs light up when a fault signal is present at any of the inputs. The response delay for alarm inputs is adjustable and can be varied between 0 and 10 seconds to filter out false or short-term signals. The operating and resting current principles of the inputs are also adjustable, enabling flexible adaptation to different sensors and circuits. Power supply is via AC 230 V, allowing the device to operate independently of a DC power supply.
Compatibility and accessories
The alarm panel is part of Dold’s INFOMASTER B system and can be combined with other components such as the base module RP 5994 or the expansion module RP 5995. Expansion is modular, allowing the total number of alarm inputs to be increased up to 88. The alarm generator RK 8832 is available as an accessory, enabling acoustic signalling. The device is designed for use with an optional galvanically isolated RS485 bus, ensuring secure data transmission in the network. Labelling of the device is done via an interchangeable labelling field, which can be customised.
Mounting and installation
Mounting is done into a front panel enclosure with dimensions 96 x 96 mm. The device is designed for installation in enclosures or control panels and is directly screwed into the front panel. Wiring is done via the designated connection terminals, with the exact connection type varying depending on operating mode and system configuration. Installation does not require special tools, as the device is standardly screwed into the front panel. Electrical connections are made via designated connection points for alarm inputs, relay outputs for horn and collective alarm, and the bus connection.
Advantages in operation
The EH 5994 alarm panel enables fast and precise fault localisation, reducing maintenance times and production downtime. The integrated LED indicators provide clear visual signalling, while the reset buttons allow direct confirmation of alarms. The bus-capable architecture allows integration into larger monitoring systems, enabling control and diagnostics via a central system. The IP 64 protection rating ensures robust functionality even in demanding environments. Adjustable parameters such as response delay and operating mode increase the device’s flexibility for different applications.
Accessories
Compatible accessories include the alarm generator RK 8832, the text panel EH 5996, and the base modules RP 5994 and RP 5995. These components can be combined as required to create a comprehensive fault alarm system. Connection is via the RS485 bus, with galvanic isolation available as an option. Labelling is done via an interchangeable labelling field, which can be individually adapted.
Bus capability
The device is designed for operation in an RS485 bus system. The bus connection enables communication with other devices in the system, allowing central monitoring and control. Galvanic isolation of the bus is optionally available, providing higher interference immunity and better signal quality. The bus connection is suitable for integration into larger plant concepts, particularly in industrial automation.
Protection rating
The enclosure front of the alarm panel is rated IP 64. This means the device is dust-tight and protected against splashing water, making it suitable for use in industrial environments, especially in humid or dusty areas. The IP 64 rating meets requirements for robust devices that must operate reliably even under difficult operating conditions.
Adjustable operating modes
The device can be operated in various modes, including as a new value alarm, first value alarm, or collective fault alarm. The operating mode is adjustable and can be configured according to application requirements. The collective fault alarm function can be operated in a memory or non-memory mode, allowing the signalling to be adapted according to requirements. Settings are made via device configuration, with exact parameters varying depending on system configuration.
Expandability
The alarm panel has a modular design and can be expanded from 8 to up to 88 alarm inputs. Expansion is achieved by combining with additional modules such as the RP 5995, increasing the number of available inputs. Expandability allows flexible adaptation to growing requirements and integration into larger monitoring systems. The modular architecture provides a scalable solution that can be adapted to the specific plant.
Connection options
The device features connection options for alarm inputs, relay outputs for horn and collective alarm, and the bus connection. Connection points are clearly marked, enabling easy wiring. A remote reset button can be connected to allow acknowledgment from remote locations. The exact connection type depends on the selected operating mode and system configuration.
Function of reset buttons
The front-mounted reset buttons are used to acknowledge horn and collective alarm signals. The buttons allow direct interaction with the device, enabling quick acknowledgment of alarms. The function of the buttons can be activated depending on system settings, with acknowledgment also possible via a remote reset button. The buttons are mechanically operated and provide clear feedback during use.
Optional alarm generator
An optional alarm generator is available, enabling acoustic signalling. The alarm generator RK 8832 can be connected to generate an additional acoustic warning. Integration is done via the designated relay outputs for horn and collective alarm. Acoustic signalling complements visual indication and increases alarm visibility.
Interchangeable labelling field
The device features an interchangeable labelling field that can be customised. Labelling enables clear identification of individual LED indicators, facilitating assignment of alarms to specific machines or processes. The labelling is replaceable, allowing system changes without replacing the device.
RS485 bus
The RS485 bus is optionally available with galvanic isolation. Galvanic isolation increases interference immunity and ensures reliable data transmission in the network. The bus connection enables communication with other devices in the system, allowing central monitoring and control. The bus connection is suitable for integration into larger plant concepts, particularly in industrial automation.
Front panel mounting
The device is designed for front panel mounting and fits into standard front panel enclosures with dimensions 96 x 96 mm. Mounting is directly into the front panel, enabling a compact and integrated installation. The device is designed for installation in enclosures or control panels and is directly screwed into the front panel.
Adjustable response delay
The response delay for alarm inputs is adjustable and can be varied between 0 and 10 seconds. This setting allows filtering of short-term or false signals, increasing the reliability of signalling. The response delay is adjustable according to application, enabling flexible use in different environments.
Operating and resting current principle
The operating and resting current principles for alarm inputs are adjustable. This allows adaptation to different sensors and circuits, enabling flexible use in various applications. Adjustment is done via device configuration, with exact parameters varying depending on system configuration.
Relay outputs
The device features relay outputs for horn and collective alarm. These relays enable control of external devices, such as an alarm generator or siren. The relay outputs are directly connected to the device and can be activated depending on operating mode. Control is done via the internal logic functions of the device.
Remote reset
The option to connect a remote reset button is available. Remote reset allows acknowledgment of alarms from remote locations, making operation more flexible. The remote reset function can be activated depending on system settings, with exact functionality depending on system configuration.
System integration
The alarm panel is part of Dold’s INFOMASTER B system and can be integrated into larger monitoring systems. Bus capability enables communication with other devices in the system, allowing central control and diagnostics. Integration is done via the RS485 bus, with galvanic isolation available as an option. System integration is suitable for industrial applications in automation technology.
Reliability
The device is designed for use in industrial environments and offers high reliability. The IP 64 protection rating, adjustable parameters, and robust construction ensure long service life and stable function under demanding conditions. Reliability is further enhanced by the modular architecture and flexible configuration.
Application areas
The EH 5994 alarm panel is used in industrial automation, process monitoring, and machine control. It is suitable for installations where rapid fault localisation and reduction of production downtime are required. Application areas include, among others, manufacturing industry, packaging industry, food industry, and energy technology.
Functions
- 8 fault alarm LEDs
- Front-mounted reset buttons for horn and collective alarm
- Bus-capable with optional galvanically isolated RS485 bus
- Protection rating IP 64
- Adjustable operating modes (new value, first value, collective fault alarm)
- Expandable from 8 to up to 88 alarm inputs
- Adjustable response delay (0–10 s)
- Operating and resting current principle adjustable
- Relay outputs for horn and collective alarm
- Connection option for remote reset button
- Interchangeable labelling field
- Optional alarm generator RK 8832
Compatibility
- Base module RP 5994
- Expansion module RP 5995
- Alarm generator RK 8832
- Text panel EH 5996
- INFOMASTER B system
Mounting
- Front panel mounting in 96 x 96 mm enclosure
- Direct mounting in enclosures or control panels
- No special tools required
Operation
- Operation with AC 230 V
- Adjustable operating modes
- Fast fault localisation
- Reduction of production downtime
- Central monitoring via RS485 bus
Advantages
- High reliability
- Flexible configuration
- Modular expandability
- Bus capability
- Adjustable parameters
Application
- Industrial automation
| Technical data | |
| Enclosure design | Front panel mounting |
| Optical signal | LED |
| Special features | Bus-compatible |
| Width | 96 mm |
| Type | EH 5994 |
| Optional buzzer | |
| Variant | |
| Nominal voltage | AC 230 V |
| Variant | With reset buttons on front. RS485 Bus not isolated |
