Dold 0060386 SL9271.12CT AC220-240V 0.5-100A undercurrent relay Tv=0.1-20S

Your rating:
Average rating
product review for Dold 0060386 SL9271.12CT AC220-240V 0.5-100A undercurrent relay Tv=0.1-20S
( 4.7 / 5 ) 33 ratings

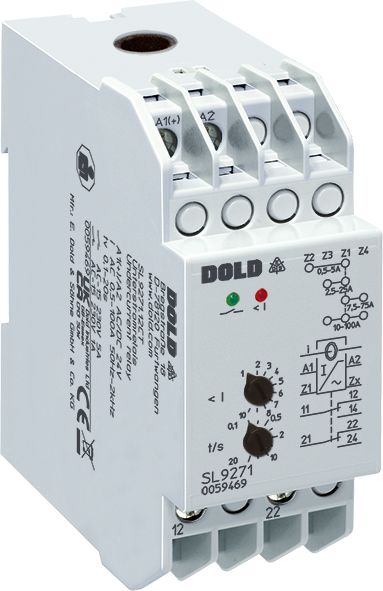

Dold 0060386
This image may differ from the desired article.
292,12 EUR
( 347,62 EUR incl. VAT )
≈ £244.50  |  ≈ $321.04
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0060386 SL9271.12CT AC220-240V 0.5-100A undercurrent relay Tv=0.1-20S
Datasheet:file_download Download
Lieske Part No.:540442
Mfg Part No: 0060386
UPC/EAN: 4030641603861
Weight:0.172 kg
Type:SL9271.12CT AC220-240V 0,5-100A
Graduated prices net
From piecesPrice per pieces
4289,93 EUR
8287,74 EUR
12285,55 EUR
16283,36 EUR

Product information for Dold 0060386:

The Dold undercurrent relay SL9271.12CT is a single-phase current relay for monitoring AC and three-phase power networks. It is designed to detect undercurrent conditions, where the current falls below a pre-set threshold, and responds with an output signal via the integrated contacts. The device is designed for use in enclosures and has a width of 35 mm, making it suitable for standard mounting rails. The auxiliary voltage is AC 220–240 V, and the relay operates on the rest current principle, meaning the output relay is not activated in the event of a fault. The measurement range covers 0.5 to 100 A, with the pickup value programmable via jumpers. The switching delay is adjustable between 0.1 and 20 seconds to avoid unwanted reactions to short-term disturbances. The hysteresis is fixed at approximately 4 %, ensuring stable switching behavior during fluctuations within the measurement range.

Applications
This relay is used in industrial and technical installations where continuous current monitoring is required, for example in pump control systems, fan installations, lighting systems, or for monitoring motors and transformer installations. It is particularly suitable for applications where a power failure could lead to an undesirable operating condition. The galvanic isolation between the auxiliary circuit and the measurement circuit increases safety and prevents interference in the control circuit.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, which can be used to control auxiliary relays, signal indicators, or switching operations. LED indicators show the operating status: a green LED lights up when current is normal (good condition), and a red LED lights up in case of undercurrent. The display is directly visible on the device and enables quick fault diagnosis. The measurement range selection is done via jumpers on terminals 11, 12, and 14, enabling four programmable measurement ranges. The switching delay is adjustable via a rotary knob to adapt the response time to the requirements of the installation.

Technology Explained Simply
The relay operates with an integrated current transformer, which draws the measurement current from the main circuit and converts it into a measurable signal. The evaluation is done electronically, monitoring the set pickup value. If this value is undershot, the output is switched via the changeover contacts. The galvanic isolation between the measurement and auxiliary circuits protects the control system from interference and increases reliability. The width of 35 mm and the enclosure mounting design allow for easy integration into existing control systems.

Compatibility and Accessories
The device is designed for use in single-phase networks and can be used in combination with other Dold relays from the SL and IL series. The terminal designation is standardized: A1/A2 for auxiliary voltage, i/k for current measurement circuit, Z1–Z4 for measurement range selection, and 11–24 for relay contacts. Compatibility with other components in the series is ensured, as the electrical and mechanical interfaces are standardized.

Mounting and Installation
Mounting is done in enclosures with mounting plate and cable duct. The connection terminals are located at the top, enabling easy wiring. The depth is 100 mm, providing sufficient space for wiring and installation in standard control panels. The width of 35 mm corresponds to the standard for DIN rail mounting, allowing the device to be integrated into existing control systems.

Operational Advantages
The adjustable switching delay and programmable measurement range allow flexible adaptation to different applications. The LED indicators provide visual feedback on the operating status, simplifying maintenance and diagnosis. The galvanic isolation increases safety and prevents interference in the control circuit. The rest current principle ensures that the relay is not activated in the event of a fault, which is required in certain applications. Compliance with IEC/EN 60255-1 ensures adherence to international standards for electrical measuring instruments.

Approvals and Markings
The device carries the UKCA mark, confirming compliance with applicable European safety and performance requirements. The approval covers requirements for electrical measuring instruments and protection systems.

Manufacturer and Device Type
The manufacturer is Dold, and the device is identified as SL9271CT. The type designation SL9271.12CT AC220-240V 0,5-100A describes the technical features: single-phase, with current transformer, rest current principle, auxiliary voltage AC 220–240 V, measurement range 0.5–100 A, switching delay 0.1–20 s, 2 changeover contacts. The width is 35 mm, and the housing design is intended for enclosures.

Functional Safety
The hysteresis of approximately 4 % ensures that the relay does not switch uncontrollably due to minor fluctuations around the pickup value. The adjustable switching delay prevents false alarms during short-term current drops. The galvanic isolation between the measurement and auxiliary circuits increases safety and prevents interference in the control circuit. The LED indicators allow for quick visual inspection of the operating status.

Application Safety
The device is designed for use in industrial installations where reliable current monitoring is required. Compliance with IEC/EN 60255-1 and the UKCA mark confirm adherence to applicable safety and performance requirements. Mounting in enclosures with mounting plate and cable duct enables safe and standardized installation.

Approvals and Markings
The device carries the UKCA mark, confirming compliance with applicable European safety and performance requirements. The approval covers requirements for electrical measuring instruments and protection systems.

Manufacturer and Device Type
The manufacturer is Dold, and the device is identified as SL9271CT. The type designation SL9271.12CT AC220-240V 0,5-100A describes the technical features: single-phase, with current transformer, rest current principle, auxiliary voltage AC 220–240 V, measurement range 0.5–100 A, switching delay 0.1–20 s, 2 changeover contacts. The width is 35 mm, and the housing design is intended for enclosures.

Functional Safety
The hysteresis of approximately 4 % ensures that the relay does not switch uncontrollably due to minor fluctuations around the pickup value. The adjustable switching delay prevents false alarms during short-term current drops. The galvanic isolation between the measurement and auxiliary circuits increases safety and prevents interference in the control circuit. The LED indicators allow for quick visual inspection of the operating status.

Application Safety
The device is designed for use in industrial installations where reliable current monitoring is required. Compliance with IEC/EN 60255-1 and the UKCA mark confirm adherence to applicable safety and performance requirements. Mounting in enclosures with mounting plate and cable duct enables safe and standardized installation.

Technical data
1- / 3-phase1
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Width35 mm
TypeSL 9271CT
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping2 changeover contacts
Measuring range0,5 - 100 A
Switching delay0,1 - 20 s
Approvals and MarkingsUKCA
VariantSingle phase current relay with built in CT. De-energized on trip


Product data sheet
Datasheet for Dold 0060386, EAN: 4030641603861

Questions & answers

What is the delivery time of Dold 0060386 SL9271.12CT AC220-240V 0.5-100A undercurrent relay Tv=0.1-20S ?

The article Dold 0060386 SL9271.12CT AC220-240V 0.5-100A undercurrent relay Tv=0.1-20S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0060386 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0060386 SL9271.12CT AC220-240V 0.5-100A undercurrent relay Tv=0.1-20S always at the best possible price. We can give you a discount of 2% on Dold 0060386 SL9271.12CT AC220-240V 0.5-100A undercurrent relay Tv=0.1-20S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0060386 SL9271.12CT AC220-240V 0.5-100A undercurrent relay Tv=0.1-20S we can offer you a price of 289,93 EUR per piece. The more you buy, the cheaper the article will be.
