Dold 0059596 BH7925.96/100 AC/DC24V+AC230V 3-3S delay module

Your rating:
Average rating
product review for Dold 0059596 BH7925.96/100 AC/DC24V+AC230V 3-3S delay module
( 4.6 / 5 ) 27 ratings
Dold 0059596
This image may differ from the desired article.
Dold 0059596Dold 0059596
308,05 EUR
( 366,58 EUR incl. VAT )
≈ £257.84  |  ≈ $338.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline

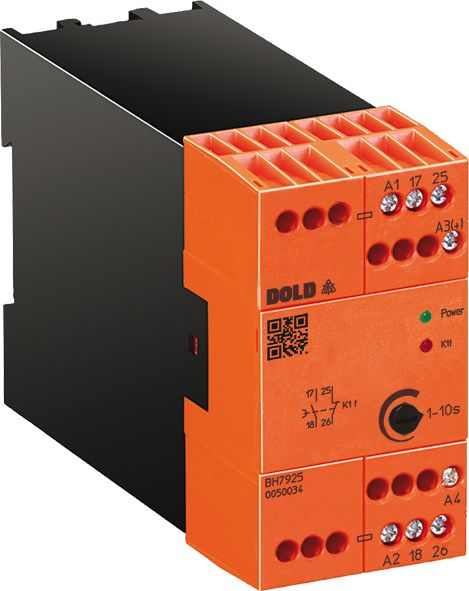

1x Dold 0059596 BH7925.96/100 AC/DC24V+AC230V 3-3S delay module
Datasheet:file_download Download
Lieske Part No.:128139
Mfg Part No: 0059596
UPC/EAN: 4030641595968
Weight:0.428 kg
Type:BH7925.96/100AC/DC24V+AC230V,3-3S
Graduated prices net
From piecesPrice per pieces
4303,43 EUR
8298,81 EUR
12294,19 EUR
16289,57 EUR

Product information for Dold 0059596:

The Dold delay module BH7925.96/100AC/DC24V+AC230V,3-3S is an industrial safety relay with delayed release switching function. It is designed for time-delayed disconnection of electrical loads in safety-critical systems and is intended for use in control systems and switching devices operating according to DIN EN 60 204-1 stop category 1. The device features an adjustable time delay ranging from 0.3 to 3 seconds and is designed for operating voltages of AC/DC 24 V and AC 230 V. The width is 45 mm, making it suitable for standard control panels. The contact configuration includes 3 normally closed contacts and 1 delayed release normally open contact, with forced-guided contacts to ensure a secure switching position.

Applications
This module is intended for use in safety-critical applications, particularly in automation technology, machine building, and systems certified according to EN ISO 13849-1 up to category 2 and PL d, as well as IEC/EN 62061 up to SIL 2. It can be used in conjunction with suitable control systems to implement safety-relevant functions such as emergency shutdowns, protection functions, or delays during disconnection processes. The variant without auxiliary voltage enables independent time delay even in the event of main voltage failure, which is advantageous in certain safety requirements.

Functions and Equipment in Detail
The device features a digital time step, ensuring high long-term stability. The time delay is adjustable and can be varied between 0.3 and 3 seconds, with a maximum delay of up to 10 seconds. The switching position indicator allows visual inspection of the operating status. The output contacts consist of one normally open contact and three normally closed contacts, suitable for switching small loads. The maximum thermal current load is 5 A.

Technology Explained Simply
The delayed release function means that the normally open contact does not close immediately after the input voltage is switched off, but only after a pre-set delay time. This is necessary, for example, to avoid sudden disconnection of motors or other loads, allowing for a controlled voltage drop. The digital time step ensures that the delay time remains stable over a long period, without significant fluctuations due to temperature or aging effects. The removable screw terminals facilitate installation and maintenance, as they can be removed and repositioned without tools.

Compatibility and Accessories
The module is designed for use in conjunction with suitable switching devices and control systems. It is available in a dual-voltage version, increasing flexibility in mains voltage supply. The connection technology with removable screw terminals allows connection of wires up to 2.5 mm², and sleeves and plastic collars according to DIN 46 228-1/-2/-3/-4 can also be used. The TÜV, CCC, and UL-Recognized certifications confirm compliance with international safety and quality standards.

Mounting and Installation
Mounting is carried out in standard control panels with a width of 45 mm. The removable terminal blocks facilitate installation and maintenance. Connections are made via screw terminals designed for wires up to 2.5 mm². The device indicators allow visual monitoring of the operating status. Installation is performed in conjunction with a suitable switching device or control system that supports safety functions.

Advantages in Operation
The digital time step ensures high long-term stability of the delay time. The delayed release function enables controlled disconnection processes required in safety-critical applications. The certifications according to EN ISO 13849-1 (category 2, PL d) and IEC/EN 62061 (SIL 2) guarantee suitability for safety-relevant systems. The variant without auxiliary voltage provides additional safety, as the time delay remains active even in the event of main voltage failure. The removable terminals facilitate installation and maintenance, increasing operational reliability.

Certifications and Markings
The device is certified with TÜV, CCC, and UL-Recognized, confirming compliance with international safety and quality standards. These certifications relate to use in safety-critical applications and ensure conformity with applicable standards.

Safety Functions
The device is designed for use in safety-critical applications and meets the requirements according to EN ISO 13849-1 up to category 2 and PL d, as well as IEC/EN 62061 up to SIL 2. The forced-guided contacts ensure that the switching position is maintained correctly even in the event of mechanical disturbances. The delayed release function enables controlled disconnection processes required in safety-critical applications.

Connection Technology
Connection is made via removable screw terminals designed for wires up to 2.5 mm². The terminals can be removed and repositioned without tools, facilitating installation and maintenance. Connections are made using sleeves and plastic collars according to DIN 46 228-1/-2/-3/-4.

Operating Conditions
The device is designed for use in industrial environments and meets the requirements for safety relays in safety-critical applications. The operating voltages are AC/DC 24 V and AC 230 V. The maximum thermal current load is 5 A. The time delay is adjustable between 0.3 and 3 seconds, with a maximum delay of up to 10 seconds.

Technical data
1- / 2-channel1
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-12/d
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 3 NO contacts
SIL CL acc. to IEC/EN 620612
SIL acc. to IEC/EN 620612
Thermal current Ith max.5 A
Time delay max.10 s
Width45 mm
TypeBH 7925
Variant
Contact equipping3 NO contacts, 1 NC contact off delay
Nominal voltageAC/DC 24 V + AC 230 V
Time range0,3 - 3 s
Approvals and MarkingsTÜV, CCC
VariantWithout auxiliary voltage. 1 timing circuit adjustable


Product data sheet
Datasheet for Dold 0059596, EAN: 4030641595968
