Dold 0059570 ND5018/210 residual current transformer

Your rating:
Average rating
product review for Dold 0059570 ND5018/210 residual current transformer
( 4.4 / 5 ) 5 ratings
Dold 0059570

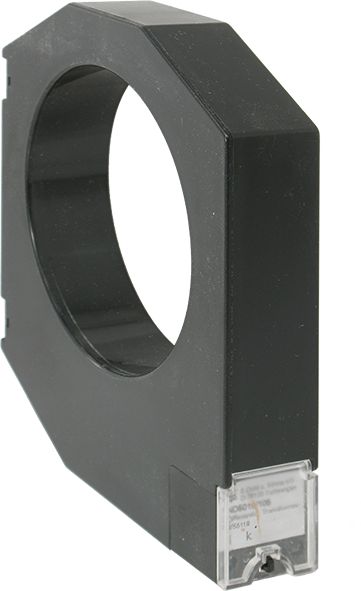

This image may differ from the desired article.
788,99 EUR
( 938,90 EUR incl. VAT )
≈ £660.38  |  ≈ $867.10
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059570 ND5018/210 residual current transformer
Lieske Part No.:1313466
Mfg Part No: 0059570
UPC/EAN: 4030641595708
Weight:2.13 kg
Type:ND5018/210
Graduated prices net
From piecesPrice per pieces
3759,40 EUR
6729,82 EUR
9700,23 EUR
12670,64 EUR

Product information for Dold 0059570:

The Dold differential current transformer ND5018/210 is a specialised electrical sensor used in automation technology for detecting fault currents. It is designed for use in industrial plants, where monitoring of lines for unwanted currents, such as in insulation faults or short circuits, is required. The transformer features an inner diameter of 210 mm, making it suitable for mounting around larger lines or cable bundles. It is specifically designed for the device type ND 5018 and fits relays of type RN 5883, ensuring compatible integration into existing protection systems.

Differential current transformer are electrical measuring devices that detect the difference between incoming and outgoing current in a line. In the event of a fault, such as a grounding fault, part of the current flows away through unintended paths, causing an imbalance. The ND5018/210 detects this difference and sends a signal to the associated protection relay (RN 5883) to initiate disconnection of the affected line if necessary. This function is crucial for safety in electrical installations, particularly in production environments with high current loads.

Applications include primarily industrial plants, such as production lines, machine controls, and distribution systems, where fault current detection is essential to prevent fires or electrical accidents. The transformer is typically integrated into the line to be monitored and is intended for use in switchgear or distributors. The availability in various diameters – 105 mm, 140 mm, and 210 mm – allows adaptation to different cable cross-sections and installation situations.

Functions and equipment in detail include specific adjustment for the device type ND 5018, ensuring direct compatibility with associated protection relays. The variant with 210 mm inner diameter allows mounting around larger cable bundles without requiring additional adapters or modifications.

Technology explained simply: A differential current transformer operates on the principle of magnetic induction. When current flows into and out of a line, it generates a magnetic field. In the event of a fault, not all the current returns, resulting in an uneven magnetic field. The transformer detects this difference and generates a signal. The ND5018/210 version is designed for use in industrial environments where high mechanical loads and electrical interference may occur.

Compatibility and accessories: The transformer is specifically designed for use with the RN 5883 relay.

Mounting and installation typically take place in switchgear or distributors, where the transformer is slid around the line to be monitored. Mounting does not require special tools, but the line must be positioned so that it fully lies within the inner diameter of the transformer.

Operational advantages include reliable fault detection and easy integration into existing protection systems. Using a transformer with a 210 mm inner diameter enables monitoring of large cable bundles without additional measures. Compatibility with the RN 5883 relay ensures direct signal transmission, minimising response time in the event of a fault.

Technical data
Diameter105 mm, 140 mm, 210 mm
For relay typeRN 5883
TypeND 5018
Variant
Variant210 mm inner diameter


Questions & answers

What is the delivery time of Dold 0059570 ND5018/210 residual current transformer ?

The article Dold 0059570 ND5018/210 residual current transformer is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059570 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0059570 ND5018/210 residual current transformer always at the best possible price. We can give you a discount of 2% on Dold 0059570 ND5018/210 residual current transformer if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0059570 ND5018/210 residual current transformer we can offer you a price of 759,40 EUR per piece. The more you buy, the cheaper the article will be.
