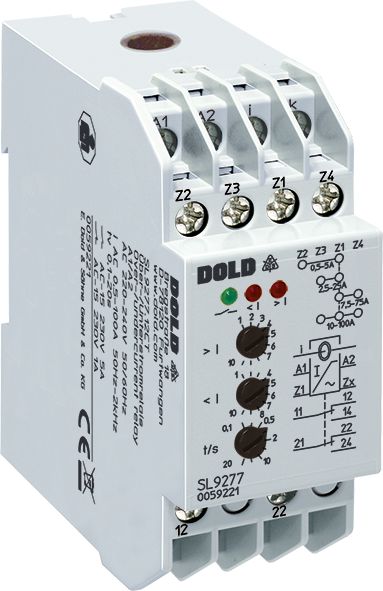

Dold 0059470 SL9277.12CT AC/DC24V 0.5-100A under-overcurrent relay

Your rating:
Average rating
product review for Dold 0059470 SL9277.12CT AC/DC24V 0.5-100A under-overcurrent relay
( 4.8 / 5 ) 12 ratings
Dold 0059470
This image may differ from the desired article.
311,41 EUR
( 370,58 EUR incl. VAT )
≈ £260.65  |  ≈ $342.24
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059470 SL9277.12CT AC/DC24V 0.5-100A under-overcurrent relay
Datasheet:file_download Download
Lieske Part No.:366908
Mfg Part No: 0059470
UPC/EAN: 4030641594701
Weight:0.15 kg
Type:SL9277.12CT AC/DC24V 0,5-100A
Graduated prices net
From piecesPrice per pieces
4309,07 EUR
8306,74 EUR
12304,40 EUR
16302,07 EUR

Product information for Dold 0059470:

The Dold SL9277.12CT AC/DC24V 0,5-100A is a single-phase current relay of the VARIMETER series, specifically designed for monitoring currents in alternating and three-phase networks. It is used for detecting overcurrent and undercurrent and responds with a time-delayed switching function when the set switching point is exceeded or undershot. The device is suitable for use in industrial plants as well as in railway applications and operates on the standby current principle, where the output relay is de-energized in the event of a fault. The auxiliary voltage is AC/DC 24 V, and the measurement range covers 0.5 to 100 A, with the integrated current transformer enabling current measurement.

Applications
This relay is intended for use in enclosures and is particularly suitable for applications requiring precise current monitoring, such as in automation technology, pump control systems, or power distribution. The galvanic isolation between the auxiliary circuit and the measurement circuit ensures high safety and prevents disturbances in the control circuit. The width of 35 mm allows for compact mounting on a DIN rail, minimizing space requirements in enclosures.

Functions and Features in Detail
The device features 2 changeover contacts as output contacts, used for signaling overcurrent and undercurrent conditions. The switching delay is adjustable between 0.1 and 20 seconds, allowing short-term current peaks to be ignored or accounted for. The separate threshold setting for overcurrent and undercurrent enables flexible adaptation to different operating conditions. The hysteresis is fixed at approximately 4 %, ensuring stable switching behavior without oscillations. The operational readiness and the states of overcurrent and undercurrent are indicated by LED displays: a green LED indicates normal operation, a red LED for I max indicates overcurrent, and a red LED for I min indicates undercurrent.

Technology Explained Simply
The relay operates with an integrated current transformer, which does not interrupt the circuit being monitored but passes the current through a hole in the device. The measurement range is set from 0.5 to 100 A, with adjustment made via jumpers on the terminals. The auxiliary voltage of AC/DC 24 V powers the relay and enables control of the output contacts. The standby current principle means that the output relay is active in the normal state and de-energized in the event of a fault (overcurrent or undercurrent), ensuring safe disconnection. The galvanic isolation between the measurement and auxiliary circuits protects the control system from disturbances caused by high currents in the measurement circuit.

Compatibility and Accessories
The device is designed for use in enclosures and can be installed using DIN rail or screw mounting. It is part of the VARIMETER series and can be combined with other devices from this series, particularly models from the IL and SL series, which are also single-phase and have a width of 35 mm. The terminals are arranged at the top, making it suitable for enclosures with mounting plates and cable ducts. Conformity is achieved according to IEC/EN 60255-1, confirming compliance with international standards for electrical measuring instruments and protective devices.

Mounting and Installation
Mounting is done either on a DIN rail or by screw fastening. The terminals are located at the top, enabling easy wiring. The depth is 100 mm, suitable for enclosures with sufficient space for cable ducts and mounting plates. Terminal designations are clearly defined: A1/A2 for auxiliary voltage, i/k for the current measurement circuit, and contacts 11-24 for the output relays. The selection of the measurement range is done via jumpers on terminals Z1/Z2, Z3/Z4.

Operational Advantages
The adjustable switching delay allows adaptation to the specific requirements of the installation, avoiding unwanted disconnections during short-term load peaks. The LED indicators provide visual feedback on the operating status, simplifying maintenance and diagnostics. Galvanic isolation increases safety and prevents disturbances in the control circuit. The standby current principle ensures that the relay is de-energized in the event of a fault, guaranteeing safe disconnection. The compact design with a width of 35 mm enables efficient space utilization in enclosures.

Technical data
1- / 3-phase1
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Width35 mm
TypeSL 9277CT
Operate delayYes
Variant
Auxiliary voltageAC/DC 24 V
Contact equipping2 changeover contacts
Measuring range0,5 - 100 A
Switching delay0,1 - 20 s
VariantSingle phase current relay with built in CT. De-energized on trip


Product data sheet
Datasheet for Dold 0059470, EAN: 4030641594701

Questions & answers

What is the delivery time of Dold 0059470 SL9277.12CT AC/DC24V 0.5-100A under-overcurrent relay ?

The article Dold 0059470 SL9277.12CT AC/DC24V 0.5-100A under-overcurrent relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059470 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0059470 SL9277.12CT AC/DC24V 0.5-100A under-overcurrent relay always at the best possible price. We can give you a discount of 2% on Dold 0059470 SL9277.12CT AC/DC24V 0.5-100A under-overcurrent relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0059470 SL9277.12CT AC/DC24V 0.5-100A under-overcurrent relay we can offer you a price of 309,07 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
