Dold 0059241 SK7817N.81/500 AC/DC12-240V multifunction relay 0.02 s–300 h

Your rating:
Average rating
product review for Dold 0059241 SK7817N.81/500 AC/DC12-240V multifunction relay 0.02 s–300 h
( 4.6 / 5 ) 10 ratings
Dold 0059241
This image may differ from the desired article.

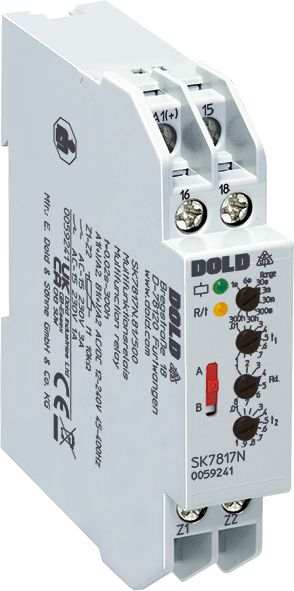

Dold 0059241Dold 0059241
197,84 EUR
( 235,43 EUR incl. VAT )
≈ £165.59  |  ≈ $217.43
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059241 SK7817N.81/500 AC/DC12-240V multifunction relay 0.02 s–300 h
Datasheet:file_download Download
Lieske Part No.:1314108
Mfg Part No: 0059241
UPC/EAN: 4030641592417
Weight:0.073 kg
Type:SK7817N.81/500 AC/DC12-240V
Graduated prices net
From piecesPrice per pieces
5190,42 EUR
10183,00 EUR
15175,58 EUR
20168,16 EUR

Product information for Dold 0059241:

The Dold multifunction relay SK7817N.81/500 AC/DC12-240V is an industrial time relay for applications in automation technology, particularly in enclosures and railway systems. It has a width of 17.5 mm and is designed for mounting on a DIN rail or via screw fastening. The housing design is intended for enclosures, with connection terminals arranged at the top and a depth of 98 mm. The device is specified according to IEC/EN 61812-1 and carries the UKCA mark.

Applications
This relay is suitable for time-controlled processes in industry, for example for controlling drives, lighting systems, pumps, or for synchronizing machine sequences. The functions are versatile, such as for delaying switch-on operations, generating pulses, or implementing flashing and timing functions. Control via two-wire proximity switches enables flexible integration into existing control systems.

Functions and equipment in detail
The device offers eight different time functions, which can be selected via a rotary switch: delay-on (AV), switch-on wipe function (EW), delayed pulse generator (IE), flashing function triggered by pulse (BI), delay-off (RV), pulse shaper (IF), switch-off wipe function (AW), and delay-on and delay-off (AV/RV). The /500 variant extends this range with two additional functions: timing generator triggered by pause (TP) and switch-on/switch-off wipe function (EW/AW). The time ranges are adjustable in eight steps from 0.02 seconds to 300 hours. A second time setting t2 is available for the timing generator (TI/TP) and switch-on/switch-off wipe function (EW/AW), enabling independent adjustment of pulse and pause duration.

Technology explained clearly
The time functions are selected via a mechanical rotary switch, with the duration adjusted using an integrated potentiometer control. The option to connect an external remote potentiometer (10 kΩ) allows precise, remote adjustment of time t1. LED indicators signal the operating status: a green LED indicates the applied operating voltage, while a yellow LED (R/t) visualizes the time progression and the state of the output relay. The display can switch between steady light (no time progression) and flashing light (time progression active), with the flash frequency indicating the relay state (activated or not activated).

Compatibility and accessories
The relay is designed for operating voltages in the range AC/DC 12 to 240 V. Control is via input B1, which operates with a potential relative to A2. For operating voltages above 24 V and when using proximity switches without built-in short-circuit protection, the use of a series resistor is recommended to limit the inrush current. Maximum resistance values are 270 Ω (48 V), 390 Ω (60 V), 680 Ω (110 V), and 1.8 kΩ (230 V), each with a power rating of 1 W. The contact configuration includes a changeover contact (15-16-18), suitable for controlling loads.

Mounting and installation
Mounting is either on a DIN rail (DIN 43880) or via screw fastening. The connection terminals are arranged at the top, facilitating integration into enclosures with mounting plate and cable duct. The depth of 98 mm is designed for enclosure applications. Adjustments are made via the rotary switch and potentiometer control, with an integrated adjustment aid for quick setting of long time intervals.

Advantages in operation
The relay offers high flexibility through the combination of multiple time functions and a wide time range. The LED indicators allow quick visual monitoring of the operating status. Control via two-wire proximity switches and the ability to add or interrupt time intervals expand the range of applications. The enclosure-compatible design and DIN rail mounting simplify integration into existing systems. The option to connect a remote potentiometer provides additional flexibility for adjusting time t1.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)Cyclic timer, Flasher relay, Fleeting on break, Fleeting on make, Fleeting on make and brake, Impulsgeber, Off-delay, with control signal, On- and Off-delay, On-delay, Pulse extender
Width17,5 mm
TypeSK 7817N/200
Connection facility for remote potentiometerYes
Variant
Contact equipping1 changeover contact
Nominal voltageAC/DC 12 - 240 V
Time range0,02 s - 300 h
Approvals and MarkingsUKCA
VariantConnection facility for external potentiometer (t1)


Product data sheet
Datasheet for Dold 0059241, EAN: 4030641592417
