Dold 0059135 RK5942.03 DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0059135 RK5942.03 DC24V emergency stop module
( 4.4 / 5 ) 29 ratings
Dold 0059135

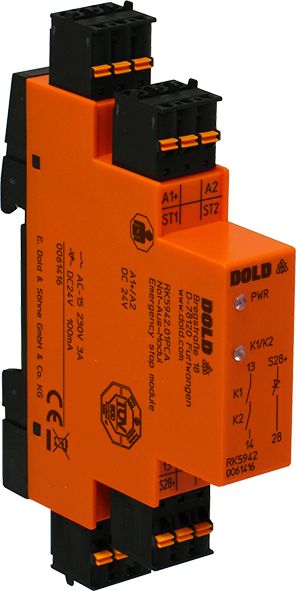

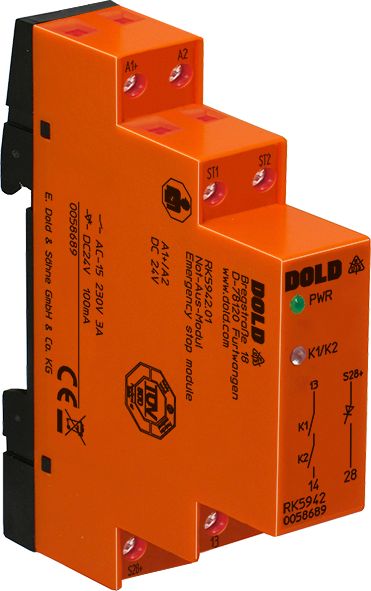

This image may differ from the desired article.
Dold 0059135Dold 0059135Dold 0059135Dold 0059135
142,66 EUR
( 169,77 EUR incl. VAT )
≈ £119.41  |  ≈ $156.78
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059135 RK5942.03 DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:992673
Mfg Part No: 0059135
UPC/EAN: 4030641591359
Weight:0.25 kg
Type:RK5942.03 DC24V
Graduated prices net
From piecesPrice per pieces
5137,31 EUR
10131,96 EUR
15126,61 EUR
20121,26 EUR

Product information for Dold 0059135:

The Dold safety relay RK5942.03 DC24V is an emergency stop module for use in industrial safety systems. It serves the protective function for personnel and machinery, particularly in emergency stop circuits, where reliable and secure disconnection is required. The device is designed as a safety relay and meets the requirements for safety functions in automation technology. It has a width of 17.5 mm and is designed for mounting in standard control panels.

Applications

The RK5942.03 DC24V is used in systems where safe disconnection is necessary in case of faults or emergencies. Typical application fields include machine building, material handling technology, packaging machines, and other production systems, where compliance with safety standards according to EN ISO 13849-1 and IEC/EN 62061 is required. The module is suitable for 1- or 2-channel wiring, increasing flexibility when integrating into existing safety architectures.

Functions and Equipment in Detail

The device features 2 normally closed contacts with a common root, where a maximum of 1 normally closed contact can be used as an output contact. The contact configuration allows for redundant or parallel switching to ensure the safety function. The rated voltage is DC 24 V, making it suitable for applications in industrial control systems with DC power supply. The connection technology includes fixed screw terminals, ensuring a mechanically stable and reliable connection. Additionally, removable spring terminals and angled spring terminals are available as connection technology, facilitating installation in various control panel configurations.

Technology Explained Simply

The safety relay operates on the principle of safe signal processing. In case of a fault or system error, the contact opens to interrupt the power supply. The LED indicators for relay 1 / 2 and the operating voltage enable visual monitoring of the operating status. The thermal current Ith max. is 5 A, indicating the maximum load capacity of the contacts. The Safety Integrity Level (SIL) 3 according to IEC/EN 62061 as well as the Performance Level (PL) e and Category 4 according to EN ISO 13849-1 guarantee high reliability and are prerequisites for use in critical safety applications.

Compatibility and Accessories

The RK5942.03 DC24V is designed for integration into existing safety architectures. It can be used in combination with other safety components such as emergency stop switches, safety light curtains, or emergency stop controls. The connection technology allows for the use of various terminal types, enabling flexible installation in different control panel environments. The TÜV certification confirms compliance with applicable safety standards.

Mounting and Installation

Mounting is carried out in standard control panels with a width of 17.5 mm. The fixed screw terminal ensures a secure and durable connection. The depth is 64 mm, which must be considered during control panel planning. Installation is carried out according to the manufacturer’s technical instructions, with correct wiring and adherence to safety regulations being essential.

Advantages in Operation

The RK5942.03 DC24V offers high safety performance by complying with standards EN ISO 13849-1 and IEC/EN 62061. The LED indicators enable quick diagnosis of the operating status. The combination of 1- and 2-channel wiring, along with flexible connection technology, increases adaptability to various application scenarios. The reliability of the device is confirmed by the TÜV certification and the specified safety levels (SIL 3, PL e).

Technical data
1- / 2-channel1, 2
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable angled cage clamp terminals, Pluggable cage clamp terminals, Screw terminals
Output contacts max.1 NO contact
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width17,5 mm
TypeRK 5942
Variant
Contact equipping2 NO contacts with common root
Nominal voltageDC 24 V
Terminal typescrew terminal fixed
Approvals and MarkingsTÜV


Product data sheet
Datasheet for Dold 0059135, EAN: 4030641591359

Questions & answers

What is the delivery time of Dold 0059135 RK5942.03 DC24V emergency stop module ?

The article Dold 0059135 RK5942.03 DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059135 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0059135 RK5942.03 DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0059135 RK5942.03 DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0059135 RK5942.03 DC24V emergency stop module we can offer you a price of 137,31 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
