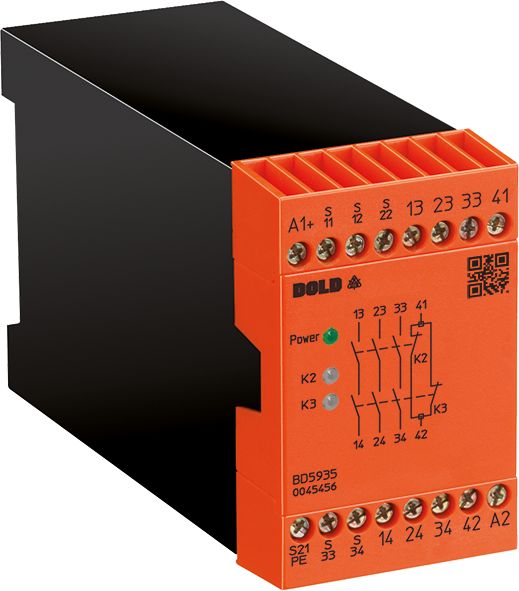

Dold 0058870 BD5935.52/61 DC24V emergency stop module
|
403,44 EUR |
|||||||||||
|
( 480,09 EUR incl. VAT ) ≈ £337.68 | ≈ $443.38 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 539574 | ||||||||||
| Mfg Part No: | 0058870 | ||||||||||
| UPC/EAN: | 4030641588700 | ||||||||||
| Weight: | 0.475 kg | ||||||||||
| Type: | BD5935.52/61 DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0058870:
Safety functions and application areas
This relay is suitable as a safety door monitor and can be used in systems where secure interlocking of access areas is required. It allows for 1- or 2-channel wiring, enabling flexible integration into various safety configurations. The functions include safe circuit interruption and cross-circuit detection in the emergency stop control circuit, preventing malfunctions caused by accidental connections between channels. The operating status is indicated by LED displays for channel 1 and channel 2, which visually signal the status.
Functions and equipment in detail
The device features contact configuration with 2 NO contacts and 2 NC contacts, with a maximum output contact configuration of 1 NC and 3 NO contacts. The contacts are gold-plated, ensuring reliable switching performance even under low loads, such as signal transmission to PLC systems. The connection technology uses removable screw terminals, enabling quick replacement of the device. The wire connections support stranded wires with 2 x 1.5 mm² (with ferrule and plastic sleeve, DIN 46228-1/-2/-3/-4) or 2 x 2.5 mm² (with ferrule DIN 46228-1/-2/-3). The operating voltage is DC 24 V, and the maximum thermal current (Ith) is 10 A.
Technology explained clearly
The safety relay operates according to the principles of safety-oriented control. It monitors the status of safety functions, such as the actuation of an emergency stop button or the opening of a safety door, and interrupts the circuit when a hazardous condition is detected. Cross-circuit detection prevents a fault in one channel from affecting the other channel, enhancing safety. The LED displays indicate the operating status of individual channels, enabling quick diagnosis of faults. The overvoltage and short-circuit protection functions protect the device and connected components from damage.
Compatibility and accessories
The device is designed for use in systems with emergency stop buttons and safety doors. It can be used in combination with other safety components, such as emergency stop switches or door contacts. The connection technology with removable screw terminals allows for easy integration into existing control systems. The certifications include UL-Recognized C/US, TÜV, UKCA, and CCC, enabling use in various markets.
Mounting and installation
The relay is mounted in standard control panels with a width of 45 mm. The removable screw terminals facilitate connection and replacement of the device. Installation is carried out according to the manufacturer’s technical instructions, ensuring correct wiring of safety functions. The operating status indicators assist during commissioning and maintenance by visually displaying the status of the channels.
Advantages in operation
The BD5935.52/61 DC24V offers high safety integrity with a Performance Level (PL) e and Category 4 according to EN ISO 13849-1, as well as a SIL Claimed Level (SIL CL) 3 according to IEC/EN 62061. The SIL 3 classification according to IEC/EN 61508 confirms the high reliability of the device in safety-critical applications. The quick replaceability via removable terminal strips reduces downtime during maintenance. The gold-plated contacts ensure reliable switching performance even under low loads, enabling integration into PLC systems. The integrated cross-circuit detection increases safety by preventing unwanted connections between channels.
Certifications and safety standards
The device complies with the requirements of standards EN ISO 13849-1 (Category 4, PL e) and IEC/EN 62061 (SIL CL 3, SIL 3). The certifications UL-Recognized C/US, TÜV, UKCA, and CCC confirm conformity with respective safety standards in relevant markets. These certifications enable use in industrial plants that must meet high safety requirements.
Safety integrity and reliability
The safety integrity of the relay is ensured by the SIL 3 classification according to IEC/EN 61508 and the PL e classification according to EN ISO 13849-1. These classifications are relevant for applications with high risk, where a malfunction could have serious consequences. The integrated cross-circuit detection and overvoltage and short-circuit protection functions contribute to the reliability of the device. The LED displays enable quick fault diagnosis, increasing the operational uptime of the plant.
Connection and operation
Connection is made via the removable screw terminals, designed for wires with 1.5 mm² and 2.5 mm². The operating voltage is DC 24 V, and the maximum thermal current (Ith) is 10 A. The operating status indicators for channel 1 and channel 2 visually signal the device status. Functions such as automatic start function or activation via start button can be configured according to application requirements.
| Technical data | |
| 1- / 2-channel | 1, 2 |
| Approvals | UL-Recognized |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Pluggable screw terminals |
| Output contacts max. | 1 NC contact, 3 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 10 A |
| Width | 45 mm |
| Type | BD 5935 |
| Cross fault detection | |
| Suited as safety gate monitor | |
| Variant | |
| Contact equipping | 2 NO contacts, 2 NC contacts |
| Nominal voltage | DC 24 V |
| Approvals and Markings | UL-rec. C/US, TÜV, UKCA, CCC |
