Dold 0058727 MK7850N.82PS/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h

Your rating:
Average rating
product review for Dold 0058727 MK7850N.82PS/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h
( 4.6 / 5 ) 10 ratings

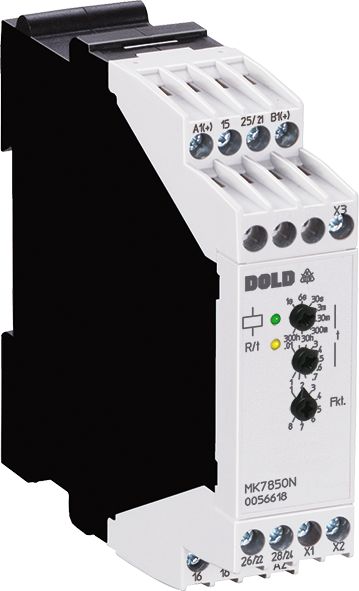

Dold 0058727
This image may differ from the desired article.
166,28 EUR
( 197,87 EUR incl. VAT )
≈ £139.18  |  ≈ $182.74
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0058727 MK7850N.82PS/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h
Datasheet:file_download Download
Lieske Part No.:1323599
Mfg Part No: 0058727
UPC/EAN: 4030641587277
Weight:0.32 kg
Type:MK7850N.82PS/200/61 AC/DC12-240V
Graduated prices net
From piecesPrice per pieces
5165,03 EUR
10163,79 EUR
15162,54 EUR
20161,29 EUR

Product information for Dold 0058727:

The Dold multifunction relay MK7850N.82PS/200/61 AC/DC12-240V is an industrial time relay for applications in automation technology, particularly in industrial and railway technology. It enables the control of time-dependent processes with high flexibility and precision. The device has a width of 22.5 mm and is designed for installation in enclosures. It operates with a nominal voltage in the range AC/DC 12 to 240 V and offers a time range from 0.02 seconds to 300 hours. The functions are adjustable via a rotary switch, allowing up to ten different time functions to be implemented in a single device.

Applications
This relay is suitable for use in industrial control systems, particularly in railway technology applications. It is used for time-delayed switching of loads, implementing flashing and pulsing functions, and impulse control. The ability to influence time sequences via remote potentiometers expands application possibilities in complex control systems. The devices are classified according to IEC/EN 61812-1, confirming compliance with international standards for time relays.

Functions and Equipment in Detail
The device offers eight different time functions, selectable via a rotary switch: delay-on (AV), switch-on wipe function (EW), delayed impulse generator (IE), flashing function starting with impulse (BI), delay-off (RV), impulse converter (IF), switch-off wipe function (AW), and delay-on and delay-off (AV/RV). Additionally, in the MK 7850N/500 variant, two further functions are available: pulsing generator starting with pause (TP) and switch-on and switch-off wipe function (EW/AW). The functions can be operated with time addition and time interruption, enabling flexible control. One contact is programmable as an immediate contact, providing additional application options.

Technology Explained Simply
The time functions are set via a rotary switch and a time range selector. The time sequences can be controlled by external signals, for example from two-wire proximity switches. Connection options include plug-in terminal blocks with screw terminals, enabling quick installation and maintenance. The wire connections are designed for 2 x 1.5 mm² stranded wire with ferrule and plastic collar or 2 x 2.5 mm² solid wire according to DIN 46 228-1/-2/-3/-4. LED indicators signal power supply, contact position, and time sequence, facilitating diagnosis during operation.

Compatibility and Accessories
The relay is equipped with connection options for two remote potentiometers, allowing time sequences to be adjusted externally. It is suitable for operation with two-wire proximity switches, simplifying integration into existing control systems. The certifications UL-listed C/US, UKCA, and CCC confirm suitability for use in various markets, including the USA and the United Kingdom. The devices comply with the requirements of standard IEC/EN 61812-1.

Mounting and Installation
The device is designed for installation in enclosures and is connected via plug-in terminal blocks with screw terminals. The width of 22.5 mm allows compact mounting in standard control panels. Installation requires no additional tools, as the terminal blocks are simply plugged directly into the control panel. The LED indicators facilitate commissioning and maintenance.

Operational Advantages
The combination of multiple time functions in a single device reduces space requirements and simplifies inventory management. The quick and precise adjustment of long time intervals, along with the ability to influence time sequences via remote potentiometers, increases operational flexibility. The LED indicators enable rapid diagnosis of operating conditions. The UL, UKCA, and CCC certifications ensure suitability for use in various regions.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Cyclic timer, Flasher relay, Fleeting on break, Fleeting on make, Fleeting on make and brake, Impulsgeber, Off-delay, with control signal, On- and Off-delay, On-delay
Width22,5 mm
TypeMK 7850N
Connection facility for remote potentiometerYes
Variant
Contact equipping2 changeover contacts, one programmable as instantaneous contact
Nominal voltageAC/DC 12 - 240 V
Terminal typeplug in terminal blocks with screw terminals
Time range0,02 s - 300 h
Approvals and MarkingsUL-listed C/US, UKCA, CCC


Product data sheet
Datasheet for Dold 0058727, EAN: 4030641587277

Questions & answers

What is the delivery time of Dold 0058727 MK7850N.82PS/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h ?

The article Dold 0058727 MK7850N.82PS/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0058727 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0058727 MK7850N.82PS/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h always at the best possible price. We can give you a discount of 2% on Dold 0058727 MK7850N.82PS/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0058727 MK7850N.82PS/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h we can offer you a price of 165,03 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
