Dold 0058700 SK9171.11/030 3/N AC110/63V 0.5–20 s undervoltage relay

Your rating:
Average rating
product review for Dold 0058700 SK9171.11/030 3/N AC110/63V 0.5–20 s undervoltage relay
( 4.8 / 5 ) 5 ratings

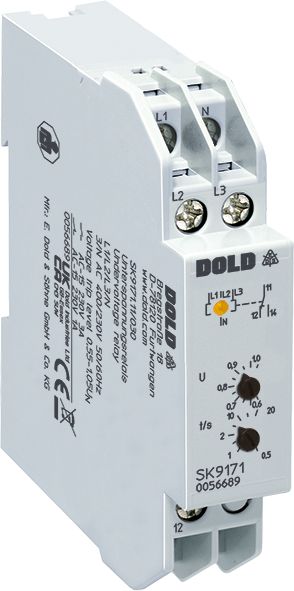

Dold 0058700
This image may differ from the desired article.
118,72 EUR
( 141,28 EUR incl. VAT )
≈ £99.37  |  ≈ $130.47
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0058700 SK9171.11/030 3/N AC110/63V 0.5–20 s undervoltage relay
Datasheet:file_download Download
Lieske Part No.:1314107
Mfg Part No: 0058700
UPC/EAN: 4030641587000
Weight:0.103 kg
Type:SK9171.11/030 3AC110/63V ,55-1,05UN
Graduated prices net
From piecesPrice per pieces
5117,83 EUR
10116,94 EUR
15116,05 EUR
20115,16 EUR

Product information for Dold 0058700:

The Dold undervoltage relay SK9171.11/030 is an industrial device for monitoring three-phase AC networks for undervoltage. It is used for network monitoring and enables switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 or DIN VDE 0108. The device operates on the rest current principle, in which the output relay is not activated in the event of a fault, ensuring safe and reliable fault detection. The width is 17.5 mm, and it is designed for use in enclosures.

Applications
This relay is designed for monitoring three-phase AC networks, but can also be connected single-phase. It is particularly used in installations where automatic switching to an emergency power supply is required in the event of voltage drop or phase loss, for example in safety lighting systems or critical production plants. The variant with time delay t1 is suitable for ensuring delayed fault indication in unstable networks (e.g. local power generation), filtering out short-term voltage fluctuations.

Functions and Equipment in Detail
The device features an adjustable pickup value in the range of 0.55 to 1.05 times nominal voltage (Un). The nominal voltage is 3/N AC 110/63 V, with a maximum nominal voltage up to 3/N AC 500/290 V. The time delay t1 is adjustable between 0.5 and 20 seconds, ensuring that the device only switches to the fault state after the delay time has elapsed if an initial fault (e.g. undervoltage) is present at switch-on. The contact configuration includes one changeover contact (1 C/O contact), which can be used for controlling auxiliary consumers or switching operations. A yellow LED indicates the contact position – illuminated when the output relay is activated (contacts 11-14 closed).

Technology Explained Simply
Measurement is performed via the arithmetic mean of the phase voltages against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). In single-phase operation, terminals L1, L2 and L3 must be connected together. The time delay t1 is only effective if the phase voltage L1-N (IK/SK 9171) or L3-N (IL/SL 9171) is at least 0.5 times nominal voltage. The device is certified according to IEC/EN 60255-1 and meets the requirements for electrical measuring instruments and relays.

Compatibility and Accessories
The relay is suitable for single- and three-phase networks and can operate without auxiliary voltage. It is designed in the S form factor, featuring a depth of 98 mm and top-mounted terminals for enclosures with mounting plate and cable duct. The device variant SK 9171.11/030 is equipped with neutral conductor connection, adjustable pickup value, and adjustable time delay t1. Phase sequence is arbitrary, allowing flexible installation.

Mounting and Installation
The device is intended for installation in enclosures. The terminals are located at the top, enabling easy wiring. Mounting is done on a mounting plate, with the depth of 98 mm to be observed. The devices are designed for frequencies between 45 and 65 Hz and can be continuously overloaded with 1.15 times nominal voltage.

Advantages in Operation
The relay provides reliable network monitoring without auxiliary voltage, simplifying installation and increasing operational safety. The adjustable parameters (pickup value, time delay) allow application-specific adaptation. The LED indicator provides visual status monitoring. The rest current principle prevents unwanted switching operations in the event of a fault and increases system safety. The construction is designed for use in industrial environments, with maximum nominal voltage reaching 500 V (three-phase).

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designSwitch cabinet
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeSK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 110 / 63 V
Response value0,55 - 1,05 Un
Time delay0,5 - 20 s
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Settable time delay t1. Settable response value


Product data sheet
Datasheet for Dold 0058700, EAN: 4030641587000

Questions & answers

What is the delivery time of Dold 0058700 SK9171.11/030 3/N AC110/63V 0.5–20 s undervoltage relay ?

The article Dold 0058700 SK9171.11/030 3/N AC110/63V 0.5–20 s undervoltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0058700 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0058700 SK9171.11/030 3/N AC110/63V 0.5–20 s undervoltage relay always at the best possible price. We can give you a discount of 2% on Dold 0058700 SK9171.11/030 3/N AC110/63V 0.5–20 s undervoltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0058700 SK9171.11/030 3/N AC110/63V 0.5–20 s undervoltage relay we can offer you a price of 117,83 EUR per piece. The more you buy, the cheaper the article will be.
