Dold 0058690 RK5942.02 DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0058690 RK5942.02 DC24V emergency stop module
( 4.6 / 5 ) 18 ratings
Dold 0058690

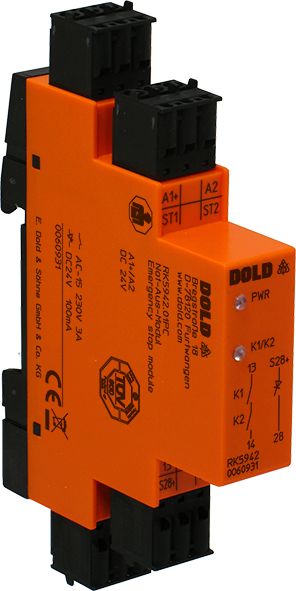

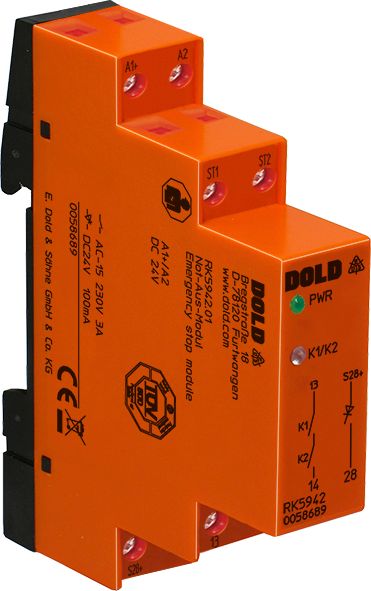

This image may differ from the desired article.
Dold 0058690Dold 0058690Dold 0058690
146,20 EUR
( 173,98 EUR incl. VAT )
≈ £122.37  |  ≈ $160.67
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0058690 RK5942.02 DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:1314109
Mfg Part No: 0058690
UPC/EAN: 4030641586904
Weight:0.25 kg
Type:RK5942.02 DC24V
Graduated prices net
From piecesPrice per pieces
5140,72 EUR
10135,23 EUR
15129,75 EUR
20124,27 EUR

Product information for Dold 0058690:

The safety relay RK5942.02 DC24V from Dold is a modular emergency stop module for use in safety-critical systems. It serves the protective function for personnel and machinery, particularly in emergency stop circuits, where reliable disconnection is required in hazardous situations. The device is designed for use in industrial control systems and meets the requirements for safety functions according to international standards. It has a width of 17.5 mm and is therefore compact and suitable for installation in standard control panels.

Safety functions and approvals
The RK5942.02 is designed for use in safety functions with Performance Level (PL) e and Category 4 according to EN ISO 13849-1. This classification guarantees high reliability in executing protective functions, especially in emergency stop circuits. Additionally, the device meets the requirements for Safety Integrity Level (SIL) 3 according to IEC/EN 62061 as well as according to IEC/EN 61508 and IEC/EN 61511. These approvals are essential for use in systems that must meet high safety requirements, such as in manufacturing industry or machines with moving parts. Certification by TÜV confirms compliance with applicable safety standards.

Functions and equipment in detail
The device features a mechanical close contact (NO contact) and a semiconductor alarm output that operates positively switching. The semiconductor output enables the control of electronic loads, such as LED indicators or signal lamps, without mechanical contacts. The LED indicators for relay 1 / 2 and the operating voltage serve visual monitoring of the operating status and facilitate troubleshooting. The output contacts are rated for a maximum thermal current of 5 A, which is sufficient for controlling typical loads in industrial applications.

Technology explained simply
The safety relay operates with a nominal voltage of DC 24 V, which is a standard value in industrial electrical engineering. The connection technology includes fixed screw terminals as well as removable spring-loaded terminals, with the latter available in angled and straight versions. This variety of connection technologies allows for flexible installation and adaptation to different wiring conditions. The width of 17.5 mm corresponds to the standard for DIN rail mounting, ensuring easy integration into existing control systems.

Compatibility and accessories
The RK5942.02 is designed for 1- or 2-channel wiring, making it suitable for both simple and redundant safety functions. Its use in combination with other safety components, such as emergency stop switches or safety light curtains, is possible, provided the system requirements for safety functions are met. The connection terminals are designed for secure and reliable connections, with spring-loaded terminals enabling quick installation.

Mounting and installation
Mounting is done on a DIN rail, taking into account the width of 17.5 mm and the depth of 64 mm. The connection terminals are designed for secure connections, with screw terminals ensuring a firm connection. The LED indicators allow for quick visual monitoring of the operating status.

Advantages in operation
The RK5942.02 offers high reliability through compliance with safety standards PL e, Cat. 4, and SIL 3. The combination of mechanical close contact and semiconductor alarm output enables flexible use in various application scenarios. The LED indicators facilitate diagnosis and maintenance, while the compact design and flexible connection technology enable easy integration into existing systems. The nominal voltage of DC 24 V is widely used in industry, increasing compatibility with existing control systems.

Technical data
1- / 2-channel1, 2
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable angled cage clamp terminals, Pluggable cage clamp terminals, Screw terminals
Output contacts max.1 NO contact
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width17,5 mm
TypeRK 5942
Variant
Contact equipping1 NO contact, 1 semiconductor signal output (plus switching)
Nominal voltageDC 24 V
Terminal typescrew terminal fixed
Approvals and MarkingsTÜV


Product data sheet
Datasheet for Dold 0058690, EAN: 4030641586904
