Dold 0057517 MK9906N.82/61 AC/DC12-240V, 0.05S-300H time relay delayed operation

Your rating:
Average rating
product review for Dold 0057517 MK9906N.82/61 AC/DC12-240V, 0.05S-300H time relay delayed operation
( 4.7 / 5 ) 3 ratings

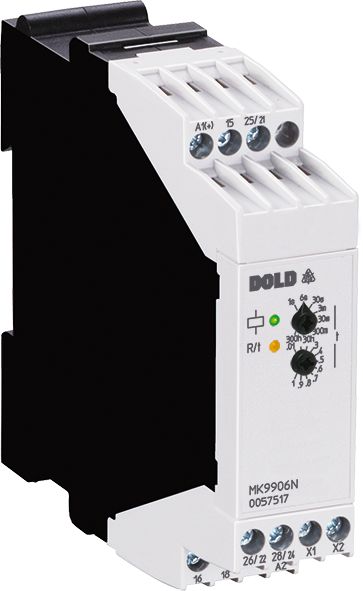

Dold 0057517
This image may differ from the desired article.
121,41 EUR
( 144,48 EUR incl. VAT )
≈ £101.62  |  ≈ $133.43
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0057517 MK9906N.82/61 AC/DC12-240V, 0.05S-300H time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:466650
Mfg Part No: 0057517
UPC/EAN: 4030641575175
Weight:0.16 kg
Type:MK9906N.82/61 AC/DC12-240V,05S-300H
Graduated prices net
From piecesPrice per pieces
5116,86 EUR
10112,30 EUR
15107,75 EUR
20103,20 EUR

Product information for Dold 0057517:

The Dold time relay MK9906N.82/61 AC/DC12-240V,05S-300H is a delayed-action industrial time relay for use in enclosures. It is used for time-delayed control of electrical loads and is employed in automation systems, manufacturing technology, as well as in building and machine control applications. The device has a width of 22.5 mm and is designed for a rated voltage in the range AC/DC 12 to 240 V. It is equipped with fixed screw terminals, enabling secure connections for conductor cross-sections up to 2.5 mm² solid or 1.5 mm² stranded wire with ferrule and plastic collar.

Time relay with delayed-action function switches the output contacts only after a set delay time has elapsed following the relay's activation. The MK9906N.82/61 offers eight different time ranges, which can be adjusted via a rotary switch. The time range extends from 0.05 seconds to 300 hours, making the device suitable for a wide variety of applications with different time constants. The adjustment aid enables quick and accurate setting, especially for longer times. The time function complies with the standard EN 61812-1.

Technology explained clearly: The relay operates with an electronic timing control, programmed via a rotary switch. The time delay is implemented by an internal circuit that waits for the specified time after the relay is activated before switching the contacts. The control is powered by a voltage supply in the range AC/DC 12–240 V. The output contacts consist of two changeover contacts, one of which can be programmed as an immediate-acting contact. This allows for flexible use, where one contact switches immediately while the other responds with a delay.

Compatibility and accessories: The device is designed for use in enclosures and can be connected to a remote potentiometer to adjust the time delay externally. The option to connect a remote potentiometer is available as an optional feature. The contacts are suitable for operation with two-wire proximity switches, facilitating integration into existing control systems. The certifications UL-listed C/US and UKCA confirm compliance with applicable safety and quality standards in the USA and the United Kingdom.

Mounting and installation: The time relay is mounted in standard enclosures and is designed for installation on a 35 mm DIN rail. The fixed screw terminal design ensures a stable and reliable connection. Mounting is done by securing the device to the rail, with the terminals for connection wires directly accessible. The connection terminals are designed for use with solid and stranded conductors, with maximum cross-sections specified according to DIN 46 228-1/-2/-3/-4.

Advantages in operation: The combination of eight time ranges in a single device reduces inventory requirements and simplifies selection. The high accuracy of the timing control ensures reliable and reproducible switching operations. LED indicators for operational readiness, contact position, and timing progress enable visual monitoring of the operating status. Options such as remote potentiometer connection or timing interruption extend functionality for specific applications. The device is designed for use in industrial environments and meets requirements for reliability and long service life.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)On-delay
Width22,5 mm
TypeMK 9906N
Connection facility for remote potentiometerYes
Variant
Contact equipping2 changeover contacts, one programmable as instantaneous contact
Nominal voltageAC/DC 12 - 240 V
Terminal typescrew terminals fixed
Time range0,05 s - 300 h
Approvals and MarkingsUL-listed C/US, UKCA
Variant8 time ranges


Product data sheet
Datasheet for Dold 0057517, EAN: 4030641575175

Questions & answers

What is the delivery time of Dold 0057517 MK9906N.82/61 AC/DC12-240V, 0.05S-300H time relay delayed operation ?

The article Dold 0057517 MK9906N.82/61 AC/DC12-240V, 0.05S-300H time relay delayed operation is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0057517 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0057517 MK9906N.82/61 AC/DC12-240V, 0.05S-300H time relay delayed operation always at the best possible price. We can give you a discount of 2% on Dold 0057517 MK9906N.82/61 AC/DC12-240V, 0.05S-300H time relay delayed operation if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0057517 MK9906N.82/61 AC/DC12-240V, 0.05S-300H time relay delayed operation we can offer you a price of 116,86 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
