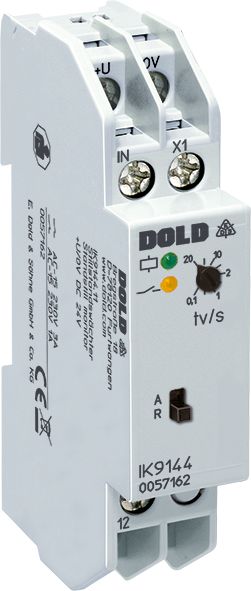

Dold 0057162 IK9144.11 DC24V 0.1-20S standstill monitor
|
160,65 EUR |
|||||||||||
|
( 191,17 EUR incl. VAT ) ≈ £134.46 | ≈ $176.55 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312719 | ||||||||||
| Mfg Part No: | 0057162 | ||||||||||
| UPC/EAN: | 4030641571627 | ||||||||||
| Weight: | 0.073 kg | ||||||||||
| Type: | IK9144.11 DC24V 0,1-20S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0057162:
Stillstand monitoring
The device monitors the pulse sequence at its input IN and reacts when the time between two consecutive pulses exceeds the set monitoring time of 0.1 to 20 seconds. Upon detection of a standstill, the output relay changes its state, triggering an alarm or shutdown function. The monitoring time is logarithmically adjustable, allowing precise adaptation to different requirements.
Functions and equipment in detail
The IK9144.11 features a universal input, configurable for various sensor types, including PNP, NPN, 2-wire, contact, and voltage sensors. This allows compatibility with a wide range of sensors, including SKF sensor bearings. The functions are switchable via a slide switch (S2): in the operating current principle (position A"), the relay energizes upon pulse failure; in the resting current principle (position "R), it de-energizes. The output contacts consist of a changeover contact (1 C/O contact), used for switching operations in control systems.
Technology explained clearly
The input frequency can reach up to 5 kHz (equivalent to 300,000 pulses per minute), suitable for fast drives. The auxiliary voltage is DC 24 V, common in many industrial control systems. The device is specified according to IEC/EN 60255-1, a standard for electrical equipment in measurement and control technology. The LED indicators signal auxiliary voltage (constant light), sensor pulses (alternating green-red blinking), and contact position (yellow light when relay is energized).
Compatibility and accessories
The stillstand monitor is designed for use in installation and industrial distributors according to DIN 43880. The housing type is an installation distributor, with a width of 17.5 mm and a depth of 59 mm. The connection terminals are located at the bottom, facilitating installation in standard distributor boxes. The devices are available in two housing types: I-type (for distributors) and S-type (for enclosures with mounting plate). The IK9144.11 variant is designed for DC 24 V; other variants such as IL 9144 or SL 9144 offer galvanic isolation and higher auxiliary voltages up to AC 400 V.
Mounting and installation
Mounting is performed in standard installation distributors or enclosures. The terminals are designed for connection to sensors and control systems. Terminal designations are clearly defined: U+ and 0V for supply voltage, IN for sensor connection, A1/A2 (for IL/SL) for auxiliary voltage, and 11/12/14 for the changeover contact. The monitoring time is adjusted via a rotary control on the device.
Advantages in operation
The universal input control enables integration of various sensors without additional adapters. The clear LED display facilitates diagnostics during operation. The combination of compact design and flexible configuration makes the device suitable for diverse applications in industrial automation, particularly in areas where drive monitoring reliability is critical.
| Technical data | |
| Classification | Stillstandsüberwachung |
| Enclosure design | Distribution board |
| Measuring range max. | 300000 IPM |
| Output contacts | 1 C/O contact |
| Width | 17,5 mm |
| Type | IK 9144 |
| Variant | |
| Auxiliary voltage | DC 24 V |
| Contact equipping | 1 changeover contact |
| Time range | 0,1 - 20 s |
| Variant | Universal input, for configuration of different sensors (PNP, NPN, 2-wire, contact, voltage). Start up delay adjustable logarithmically |
Questions & answers
What is the delivery time of Dold 0057162 IK9144.11 DC24V 0.1-20S standstill monitor ?
The article Dold 0057162 IK9144.11 DC24V 0.1-20S standstill monitor is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0057162 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0057162 IK9144.11 DC24V 0.1-20S standstill monitor always at the best possible price. We can give you a discount of 2% on Dold 0057162 IK9144.11 DC24V 0.1-20S standstill monitor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0057162 IK9144.11 DC24V 0.1-20S standstill monitor we can offer you a price of 154,63 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
