Dold 0056901 MK9163N.12/110 ATEX AC/DC24V thermistor motor protection relay

Your rating:
Average rating
product review for Dold 0056901 MK9163N.12/110 ATEX AC/DC24V thermistor motor protection relay
( 4.7 / 5 ) 21 ratings
Dold 0056901

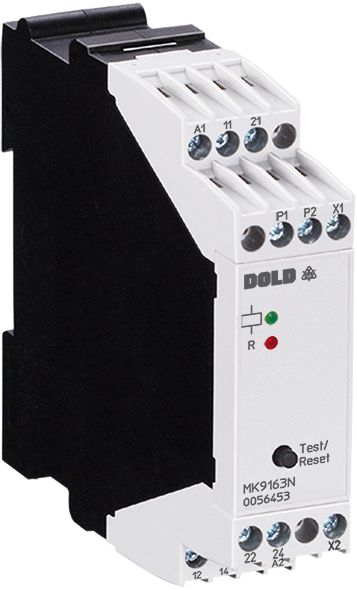

This image may differ from the desired article.
Dold 0056901Dold 0056901
105,06 EUR
( 125,02 EUR incl. VAT )
≈ £87.94  |  ≈ $115.46
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0056901 MK9163N.12/110 ATEX AC/DC24V thermistor motor protection relay
Datasheet:file_download Download
Lieske Part No.:1312754
Mfg Part No: 0056901
UPC/EAN: 4030641569013
Weight:0.185 kg
Type:MK9163N.12/110 ATEX AC/DC24V
Graduated prices net
From piecesPrice per pieces
5101,12 EUR
1097,18 EUR
1593,24 EUR
2089,30 EUR

Product information for Dold 0056901:

The Dold MK9163N.12/110 ATEX AC/DC24V is a thermistor motor protection relay, specifically developed for temperature monitoring of electric motors and other critical components such as bearings, gearboxes, oils, and coolants in industrial applications. The device prevents thermal overloads caused by high switching frequency, heavy start-up, single-phasing, impaired cooling, or high ambient temperatures. It is designed for use in enclosures and provides reliable fault detection as well as rapid localization of disturbances during operation.

Applications
This relay is suitable for use in explosive atmospheres, as it carries ATEX certification. It is employed in installations where continuous temperature monitoring is required to prevent damage to motors and associated components. Applications include monitoring motors in manufacturing industries, process engineering, and systems with high demands on operational safety.

Functions and Equipment in Detail
The device features short-circuit detection and also recognizes wire breaks in the sensor circuit as well as temperature exceedances. It operates on the idle current principle, where the output relay is not activated in the event of a fault, enabling safe and precise fault diagnosis. Indication is provided via LEDs, signaling auxiliary voltage and contact status. The contact configuration includes 2 changeover contacts, which can be used for controlling auxiliary functions or alarms.

Technology Explained Simply
The MK9163N ATEX monitors the resistance of up to three or six thermistors at one input. The measurement range extends beyond 3.8 kΩ, enabling precise detection of temperature changes. The auxiliary voltage is AC/DC 24 V, allowing flexible integration into existing control systems. The width of 22.5 mm enables compact mounting in standard enclosures. The terminal type consists of fixed terminal blocks with screw terminals, ensuring secure and durable connections. Connection options include stranded wires with ferrules and plastic sleeves (2 x 1.5 mm²) as well as solid conductors (2 x 2.5 mm²) in accordance with DIN 46 228-1/-2/-3/-4.

Compatibility and Accessories
The device is designed for use with thermistors and can be connected to up to six sensors at one input. The variant offers a reset and test function, implemented via a button on the device and through terminals X1/X2. This enables quick fault correction and testing of the device during operation. Optional plug-in terminal blocks are available, allowing for rapid device replacement.

Mounting and Installation
The relay is mounted in enclosures and is designed for installation on a 35 mm rail. Installation is carried out using the fixed screw terminals, with the specified cross-sections (1.5 mm² stranded wire or 2.5 mm² solid) must be observed. The terminal assignment is described in the data sheet, with connections for auxiliary voltage, thermistor inputs, and output contacts clearly defined.

Advantages in Operation
The integrated short-circuit and wire break detection ensures high reliability of monitoring. LED indicators allow for quick visual inspection of the operating status. The ability to remotely reset the device via X1/X2 provides additional flexibility in maintenance. ATEX certification ensures safe use in explosive environments, making the device suitable for demanding industrial applications. Compliance with standards EN 60947-5-1, EN 60947-8, EN 60079-14, EN 61508, EN 50495, and EN 13849 guarantees conformity with applicable safety and functional requirements.

Technical data
Auxiliary voltageAC, AC/DC
ClassificationThermistor-Motorschutz
Enclosure designSwitch cabinet
Measuring range max.> 3.8 kΩ
Output contacts2 C/O contacts
Width22,5 mm
TypeMK 9163N ATEX
Variant
Contact equipping2 changeover contacts
Nominal voltageAC/DC 24 V
Terminal typefixed terminal blocks with screw terminals
Approvals and MarkingsATEX
VariantWith short circuit detection. With RESET and test function via built in button and X1/X2


Product data sheet
Datasheet for Dold 0056901, EAN: 4030641569013
