Dold 0056689 SK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.5-20S

Your rating:
Average rating
product review for Dold 0056689 SK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.5-20S
( 4.9 / 5 ) 7 ratings
Dold 0056689
This image may differ from the desired article.
118,72 EUR
( 141,28 EUR incl. VAT )
≈ £99.37  |  ≈ $130.47
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline

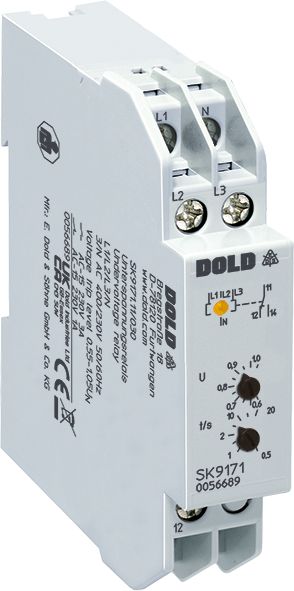

1x Dold 0056689 SK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.5-20S
Datasheet:file_download Download
Lieske Part No.:1312801
Mfg Part No: 0056689
UPC/EAN: 4030641566890
Weight:0.103 kg
Type:SK9171.11/030 3AC400/230V,55-1,05UN
Graduated prices net
From piecesPrice per pieces
5117,83 EUR
10116,94 EUR
15116,05 EUR
20115,16 EUR

Product information for Dold 0056689:

The Dold undervoltage relay SK9171.11/030 is an industrial device for monitoring three-phase power networks for undervoltage. It is used for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 or DIN VDE 0108. The device operates on the residual current principle, whereby the output relay is not activated in the event of a fault, and can operate without auxiliary voltage. It is designed for mounting in enclosures and has a width of 17.5 mm.

Applications
This relay is used in industrial and commercial installations where reliable network monitoring is required. It is suitable for applications where automatic switching to an emergency power supply or safety lighting must occur in the event of undervoltage or phase failure. The installation flexibility allows use in both 3-phase and 1-phase networks; for single-phase connection, terminals L1, L2, and L3 must be bridged.

Functions and Equipment in Detail
The device detects undervoltages in three-phase networks and features an adjustable pickup value in the range of 0.55 to 1.05 times nominal voltage. The nominal voltage is 3/N AC 400/230 V, with a maximum nominal voltage up to 3/N AC 500/290 V. The time delay t1 for fault indication is adjustable between 0.5 and 20 seconds. The LED indicator signals the contact position of the output relay; when the relay is activated, a yellow LED lights up. Phase sequence is arbitrary, as the device operates independently of phase order.

Technology Explained Simply
The relay measures the arithmetic mean of each phase against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). The time delay t1 is only effective if the phase voltage L1-N (IK/SK 9171) or L3-N (IL/SL 9171) is at least 0.5 times nominal voltage. After switching on the operating voltage, the device initially enters the good state, even if a fault exists; the fault state is only activated after the time delay t1 has elapsed. The hysteresis is approximately 4%, ensuring stable switching behavior.

Compatibility and Accessories
The device is suitable for 1- and 3-phase networks and can be operated optionally with or without neutral conductor connection. It is designed in the S form factor, featuring a depth of 98 mm and top-mounted terminals for enclosures with mounting plate and cable duct. The SK9171.11/030 variant is equipped with adjustable time delay t1 and adjustable pickup value. It is compatible with various network voltages and frequencies in the range of 45 to 65 Hz.

Mounting and Installation
Mounting is carried out in enclosures, with the top-mounted terminals enabling easy wiring. The width of 17.5 mm allows for compact installation in standard enclosure modules. The devices are specified according to IEC/EN 60255-1 and bear the UKCA mark. The terminals are designed for use in enclosures with mounting plate and cable duct.

Operational Advantages
The relay provides reliable network monitoring without additional auxiliary voltage. The adjustable parameters such as pickup value and time delay allow application-specific adaptation. The LED indicator facilitates diagnosis of the operating state. The form factor with top-mounted terminals and the compact width of 17.5 mm support efficient installation in industrial enclosures. Use in accordance with DIN VDE 0100-710 and DIN VDE 0108 ensures compliance with applicable standards for safety lighting and emergency power supply.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designSwitch cabinet
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeSK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 400 / 230 V
Response value0,55 - 1,05 Un
Time delay0,5 - 20 s
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Settable time delay t1. Settable response value


Product data sheet
Datasheet for Dold 0056689, EAN: 4030641566890
