Dold 0056650 BD9080.12/61 3AC400V UH AC400V phase monitor Tv=0.1-5s

Your rating:
Average rating
product review for Dold 0056650 BD9080.12/61 3AC400V UH AC400V phase monitor Tv=0.1-5s
( 4.2 / 5 ) 11 ratings

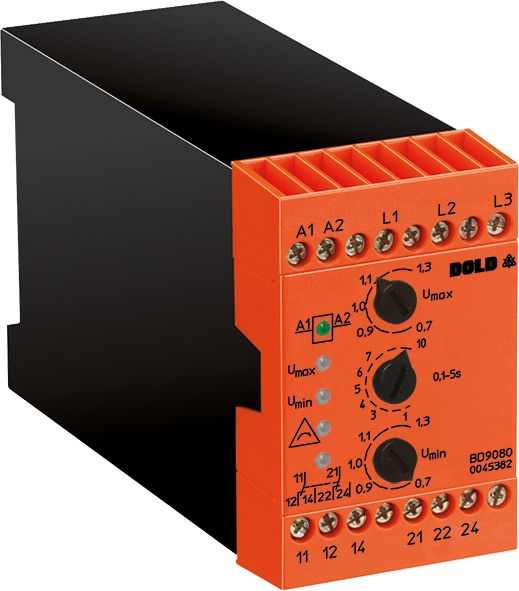

Dold 0056650
This image may differ from the desired article.
427,57 EUR
( 508,81 EUR incl. VAT )
≈ £357.88  |  ≈ $469.90
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0056650 BD9080.12/61 3AC400V UH AC400V phase monitor Tv=0.1-5s
Datasheet:file_download Download
Lieske Part No.:1312943
Mfg Part No: 0056650
UPC/EAN: 4030641566500
Weight:0.35 kg
Type:BD9080.12/61 3AC400V UH AC400V
Graduated prices net
From piecesPrice per pieces
4421,16 EUR
8414,74 EUR
12408,33 EUR
16401,92 EUR

Product information for Dold 0056650:

The phase monitor BD9080.12/61 from Dold is an industrial monitoring switch for three-phase networks, specifically designed for continuous monitoring of voltage characteristics in electrical installations. The device belongs to the VARIMETER PRO series and is used for detecting under-voltage, over-voltage, asymmetry, phase failure, and incorrect phase sequence. It is designed for use in enclosures and operates on the no-current principle, where the output relay is not activated in the event of a fault. The auxiliary voltage is AC 400 V, and the nominal voltage of the network to be monitored is 3AC 400 V. The width is 45 mm, enabling compact installation in standard enclosures.

Applications
The phase monitor BD9080 is used in industrial installations where high operational reliability and availability of the electrical supply are required. It is suitable for applications in manufacturing, energy supply, process engineering, and installations with sensitive electronic control systems. Early detection of voltage anomalies enables preventive maintenance and prevents damage to connected devices. Monitoring is performed regardless of whether the network is operated with or without a neutral conductor.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, which can be used for signaling faults to external systems or warning lights. The pickup delay is adjustable between 0.1 and 5 seconds, allowing adaptation to different requirements for response time. The reset delay is also between 0.1 and 5 seconds. Monitoring is performed using an arithmetic mean of multiple half-waves of the rectified phase voltages L1/L2 and L2/L3, with L3 serving as the reference phase. The adjustable voltage ranges are between 0.7 and 1.3 times the nominal voltage, with the range restricted to 0.8 to 1.1 times when using auxiliary voltage from the monitored network.

Technology Explained Simply
Measurement of phase voltages is performed via inputs L1, L2, and L3. The auxiliary voltage is supplied via terminals A1/A2, supporting voltage ranges of AC 110, 230, 400 V, as well as AC/DC 24–80 V and AC/DC 80–230 V. The current consumption is approximately 0.5 mA per phase L1 and L2, and 0.8 mA for L3 at nominal voltage. The repeatability accuracy is ≤ ±0.5 % of nominal voltage, and the hysteresis is ≤ 5 % of the pickup value. Asymmetry detection occurs at deviations of ±8 to ±20 % of the pickup voltage, with the fault angle at approximately 120° ±15°. The temperature dependence of the measurement is ≤ 0.08 % per Kelvin.

Compatibility and Accessories
The phase monitor is designed for use in three-phase networks with nominal voltages of 3AC 230, 400, 690, and 750 V, with other voltages available upon request. The auxiliary voltage can also be drawn from the monitored network, simplifying installation. The output contacts are rated for switching operations according to AC 15 (make: 2 A / AC 230 V, break: 1 A / AC 230 V) and DC 13 (make: 1 A / DC 24 V, break: 1 A / DC 24 V). The electrical life is 250,000 switching operations at 1 A and AC 230 V, with a mechanical life of at least 50 million switching operations. Maximum short-circuit withstand requires a fuse with 4 A gG/gL.

Mounting and Installation
The device is mounted in enclosures and requires a mounting width of 45 mm. Connections for phase voltages (L1, L2, L3) and auxiliary voltage (A1/A2) are clearly marked. The output contacts (11, 12, 14 and 21, 22, 24) are used to connect to external signaling or control devices. The LED indicators show the operating status: A1/A2 (auxiliary voltage), U max. (over-voltage), U min. (under-voltage), ∆ (asymmetry/phase sequence/network failure), and the relay contact position. The operating temperature range is -20 °C to +60 °C, and the storage temperature range is also -20 °C to +60 °C. The operating altitude is limited to ≤ 2000 m.

Advantages in Operation
Early detection of voltage anomalies enables proactive maintenance and prevents damage to connected devices. The adjustable pickup delay reduces false alarms during short-term voltage fluctuations. The clear LED display facilitates fault localization. The device complies with the standard IEC/EN 60255-1 and is certified with UL-rec. C/US. The high mechanical and electrical life ensures long-term operation with minimal maintenance. The compact design and standard mounting width of 45 mm facilitate integration into existing enclosures.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Measuring range max.750 V
Output contacts2 C/O contacts
Standard measuring range3 AC 400 V
Width45 mm
TypeBD 9080
Operate delayYes
Variant
Auxiliary voltageAC 400 V
Contact equipping2 changeover contacts
Nominal voltage3AC 400 V
Release delay0,1 - 5 s
Approvals and MarkingsUL-rec. C/US
VariantDe-Energized on trip


Product data sheet
Datasheet for Dold 0056650, EAN: 4030641566500

Questions & answers

What is the delivery time of Dold 0056650 BD9080.12/61 3AC400V UH AC400V phase monitor Tv=0.1-5s ?

The article Dold 0056650 BD9080.12/61 3AC400V UH AC400V phase monitor Tv=0.1-5s is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0056650 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0056650 BD9080.12/61 3AC400V UH AC400V phase monitor Tv=0.1-5s always at the best possible price. We can give you a discount of 2% on Dold 0056650 BD9080.12/61 3AC400V UH AC400V phase monitor Tv=0.1-5s if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0056650 BD9080.12/61 3AC400V UH AC400V phase monitor Tv=0.1-5s we can offer you a price of 421,16 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
