Dold 0056618 MK7850N.82/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h

Your rating:
Average rating
product review for Dold 0056618 MK7850N.82/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h
( 4.6 / 5 ) 27 ratings

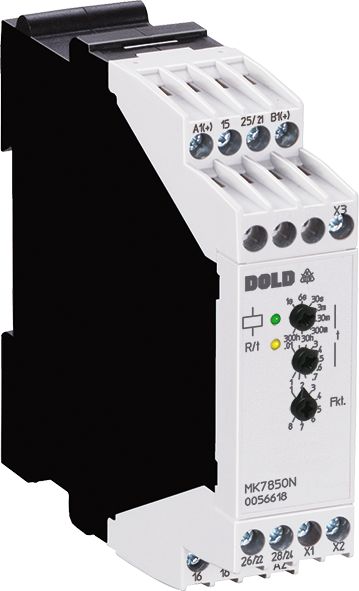

Dold 0056618
This image may differ from the desired article.
167,21 EUR
( 198,98 EUR incl. VAT )
≈ £139.95  |  ≈ $183.76
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0056618 MK7850N.82/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h
Datasheet:file_download Download
Lieske Part No.:440394
Mfg Part No: 0056618
UPC/EAN: 4030641566180
Weight:0.17 kg
Type:MK7850N.82/200/61AC/DC12-240V
Graduated prices net
From piecesPrice per pieces
5160,94 EUR
10154,67 EUR
15148,40 EUR
20142,13 EUR

Product information for Dold 0056618:

The Dold multifunction relay MK7850N.82/200/61AC/DC12-240V is an industrial time relay for applications in automation technology, particularly in industrial and railway technology. It enables the control of time-dependent processes through a variety of adjustable functions in a compact device. The relay is designed for a rated voltage of AC/DC 12 to 240 V and offers a time range from 0.02 seconds to 300 hours. The width is 22.5 mm, making it suitable for installation in standard enclosures. The device features fixed screw terminals for wire connection and is designed for use in enclosures.

Applications

The relay is used in industrial control systems where time-controlled sequences are required, for example in machine control, plant automation, or railway systems. The variety of adjustable functions allows flexible adaptation to different requirements without the need for multiple specialized relays. The ability to control time sequences via remote potentiometers supports remote control and parameterization in complex systems.

Functions and Equipment in Detail

The device offers eight different time functions, which can be selected via a rotary switch: delay-on (AV), switch-on wipe function (EW), delayed impulse generator (IE), blink function with start by impulse (BI), delay-off (RV), impulse converter (IF), switch-off wipe function (AW), and delay-on and delay-off (AV/RV). The functions can be operated with time interruption or time addition, enabling flexible control of processes. Additionally, the relay can be actuated with two-wire proximity switches, facilitating integration into existing sensor networks.

Technology Explained Simply

The time functions are set via a rotary switch and a time regulator, with eight different time ranges available from 0.02 s to 300 h. The output contacts consist of two changeover contacts, one of which can be programmed as an immediate contact. This allows flexible use of the contacts depending on the application. The LED indicators signal power supply, contact position, and time progression, simplifying diagnosis and maintenance. Connection options include stranded wires with ferrules and plastic sleeves (2 x 1.5 mm²) as well as solid conductors (2 x 2.5 mm²) according to DIN 46 228-1/-2/-3/-4.

Compatibility and Accessories

The relay is equipped with connection options for two remote potentiometers, enabling remote control of time values. It is suitable for operation with two-wire proximity switches, facilitating integration into existing sensors and controls. The certifications UL-listed C/US, UKCA, and CCC confirm compliance with international safety and quality standards. The devices comply with the standard IEC/EN 61812-1.

Mounting and Installation

The relay is mounted in enclosures and features fixed screw terminals for wire connection. The width of 22.5 mm allows installation in standard rails (DIN 35 mm). Mounting is done by securing to the rail, with the terminals provided for connecting the wires. The selection of functions and time values is done via the rotary switch and time regulator on the device.

Advantages in Operation

By combining multiple functions in one device, inventory management is simplified and operational flexibility is increased. The precise and quick setting of long time intervals, as well as the ability to remotely control via remote potentiometers, increases efficiency during commissioning and maintenance. The LED indicators facilitate visual monitoring of the operating status. The certifications according to UL, UKCA, and CCC ensure suitability for use in various markets.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Cyclic timer, Flasher relay, Fleeting on break, Fleeting on make, Fleeting on make and brake, Impulsgeber, Off-delay, with control signal, On- and Off-delay, On-delay
Width22,5 mm
TypeMK 7850N
Connection facility for remote potentiometerYes
Variant
Contact equipping2 changeover contacts, one programmable as instantaneous contact
Nominal voltageAC/DC 12 - 240 V
Terminal typescrew terminal fixed
Time range0,02 s - 300 h
Approvals and MarkingsUL-listed C/US, UKCA, CCC


Product data sheet
Datasheet for Dold 0056618, EAN: 4030641566180

Questions & answers

What is the delivery time of Dold 0056618 MK7850N.82/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h ?

The article Dold 0056618 MK7850N.82/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0056618 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0056618 MK7850N.82/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h always at the best possible price. We can give you a discount of 2% on Dold 0056618 MK7850N.82/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0056618 MK7850N.82/200/61 AC/DC12-240V multifunction relay 0.02 s–300 h we can offer you a price of 160,94 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
