Dold 0056561 MK7873N.82/61 AC/DC24-240V 0.05-1S time relay delayed return

Your rating:
Average rating
product review for Dold 0056561 MK7873N.82/61 AC/DC24-240V 0.05-1S time relay delayed return
( 4.3 / 5 ) 6 ratings

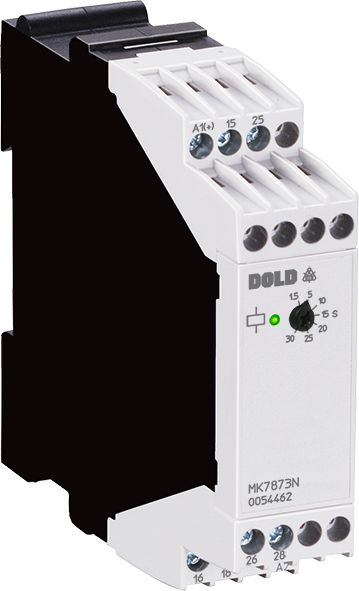

Dold 0056561
This image may differ from the desired article.
164,07 EUR
( 195,24 EUR incl. VAT )
≈ £137.33  |  ≈ $180.31
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0056561 MK7873N.82/61 AC/DC24-240V 0.05-1S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:1583501
Mfg Part No: 0056561
UPC/EAN: 4030641565619
Weight:0.152 kg
Type:MK7873N.82/61 AC/DC24-240V 0,05-1S
Graduated prices net
From piecesPrice per pieces
5162,84 EUR
10161,61 EUR
15160,38 EUR
20159,15 EUR

Product information for Dold 0056561:

The Dold time relay MK7873N.82/61 is an industrial-grade, drop-out delayed relay designed for enclosure mounting. It is used for time-controlled switching in industrial and railway applications, where a delayed de-energization is required after interruption of the control signal. The device features a rated voltage range of AC/DC 24 to 240 V and allows a delay time of 0.05 to 1 second. The time function is implemented as a drop-out delay without control signal, meaning that the contacts return to their rest position with a delay after the supply voltage is switched off. The width is 22.5 mm, enabling compact installation in standard enclosures.

Drop-out delayed time relay is the core function of the device. This function is achieved through a mechanical timing mechanism that maintains a defined delay period after the power supply is interrupted, before the contacts return. This is particularly necessary in applications where immediate de-energization could cause disturbances or damage. The delay time is adjustable between 0.05 and 1 second, with a repeat accuracy of less than ± 0.5 %, ensuring high precision during repeated operations.

2 changeover contacts are integrated as output contacts. These consist of one normally open and one normally closed contact each, capable of controlling individual electrical circuits. The contacts are designed for industrial environments and offer high mechanical and electrical life. The contact operation is delayed, meaning switching occurs not immediately, but after the set delay time has elapsed.

Fixed terminal blocks with screw terminals enable secure and durable connections for wiring. The terminals are designed for stranded wires up to 2 x 1.5 mm² with ferrules and plastic sleeves, as well as solid conductors up to 2 x 2.5 mm² according to DIN 46228-1/-2/-3/-4. Connections are made via screw terminals, ensuring a firm and correct connection. The terminal type is fixed, providing high mechanical stability.

Zero-voltage safety is an important feature of the relay. The device switches off safely when the supply voltage drops below a critical level, preventing unwanted switching operations. This is especially important in systems with critical processes to avoid malfunctions.

LED indicator for power supply shows whether the relay is powered. The indicator serves as a visual check and facilitates troubleshooting in case of operational faults. The LED is integrated directly into the device and lights up when supply voltage is present.

Approvals and markings include UL-listed C/US and UKCA. These approvals confirm that the device meets relevant safety and quality requirements and may be used in the respective markets. The UL approval is internationally recognized and ensures suitability for use in systems with high safety requirements.

Enclosure form for enclosure mounting means the relay is designed for installation in standard enclosures. The form factor is compact and fits into standard enclosure modules. Installation is done using the provided mounting elements, ensuring secure and stable installation.

Applications include industrial controls, particularly in manufacturing automation, as well as railway applications where time-controlled switching is required. The device is suitable for systems requiring high reliability and precision. The zero-voltage safety and high repeat accuracy make it especially suitable for critical processes.

Compatibility and accessories include the option to combine the device with plug-in terminal blocks, available as optional accessories. These allow for quick replacement of the relay without damaging existing wiring.

Mounting and installation are performed by securing the relay in the enclosure. The terminals are designed for connecting stranded and solid conductors. Installation requires no additional tools, with screw terminals tightened using a screwdriver. Positioning within the enclosure follows the specific requirements of the respective system.

Operational advantages include high repeat accuracy, zero-voltage safety, and easy operation. The LED indicator simplifies maintenance and diagnostics. The compact design and robust construction ensure long service life and high reliability in industrial environments. The device requires no re-activation time, increasing operational readiness.

Technology explained simply: The relay uses a mechanical timing mechanism that maintains a defined delay period after the supply voltage is switched off. The contacts only return after this delay time has elapsed, enabling controlled de-energization. The delay time is adjusted via a rotary knob on the device. The LED indicator shows the operational status. Screw terminals ensure secure wiring connections.

Approvals and markings confirm compliance with applicable safety standards. The UL approval is internationally recognized and ensures suitability for use in systems with high safety requirements. The UKCA marking enables use in the United Kingdom.

Device type MK 7873N is the official product designation. The variant MK7873N.82/61 AC/DC24-240V 0.05-1S describes the specific technical parameters of the device. The manufacturer's number 0056561 uniquely identifies the product.

Applications include industrial controls, particularly in manufacturing automation, as well as railway applications. The device is designed for systems requiring high reliability and precision. The zero-voltage safety and high repeat accuracy make it especially suitable for critical processes.

Compatibility and accessories include the option to combine the device with plug-in terminal blocks, available as optional accessories. These allow for quick replacement of the relay without damaging existing wiring.

Mounting and installation are performed by securing the relay in the enclosure. The terminals are designed for connecting stranded and solid conductors. Installation requires no additional tools, with screw terminals tightened using a screwdriver. Positioning within the enclosure follows the specific requirements of the respective system.

Operational advantages include high repeat accuracy, zero-voltage safety, and easy operation. The LED indicator simplifies maintenance and diagnostics. The compact design and robust construction ensure long service life and high reliability in industrial environments. The device requires no re-activation time, increasing operational readiness.

Technology explained simply: The relay uses a mechanical timing mechanism that maintains a defined delay period after the supply voltage is switched off. The contacts only return after this delay time has elapsed, enabling controlled de-energization. The delay time is adjusted via a rotary knob on the device. The LED indicator shows the operational status. Screw terminals ensure secure wiring connections.

Approvals and markings confirm compliance with applicable safety standards. The UL approval is internationally recognized and ensures suitability for use in systems with high safety requirements. The UKCA marking enables use in the United Kingdom.

Device type MK 7873N is the official product designation. The variant MK7873N.82/61 AC/DC24-240V 0.05-1S describes the specific technical parameters of the device. The manufacturer's number 0056561 uniquely identifies the product.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, without control signal
Width22,5 mm
TypeMK 7873N
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC/DC 24 - 240 V
Terminal typefixed terminal blocks with screw terminals
Time range0,05 - 1 s
Approvals and MarkingsUL-listed C/US, UKCA
VariantRelease delay, without control signal


Product data sheet
Datasheet for Dold 0056561, EAN: 4030641565619

Questions & answers

What is the delivery time of Dold 0056561 MK7873N.82/61 AC/DC24-240V 0.05-1S time relay delayed return ?

The article Dold 0056561 MK7873N.82/61 AC/DC24-240V 0.05-1S time relay delayed return is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0056561 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0056561 MK7873N.82/61 AC/DC24-240V 0.05-1S time relay delayed return always at the best possible price. We can give you a discount of 2% on Dold 0056561 MK7873N.82/61 AC/DC24-240V 0.05-1S time relay delayed return if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0056561 MK7873N.82/61 AC/DC24-240V 0.05-1S time relay delayed return we can offer you a price of 162,84 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
