Dold 0056559 IR9112/710 AC230V IT network monitor

Your rating:
Average rating
product review for Dold 0056559 IR9112/710 AC230V IT network monitor
( 4.6 / 5 ) 9 ratings
Dold 0056559

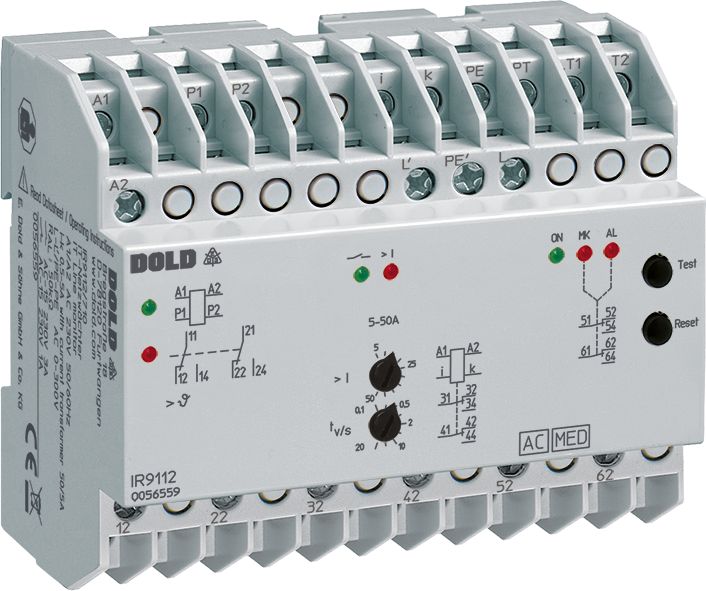

This image may differ from the desired article.
1.102,57 EUR
( 1.312,06 EUR incl. VAT )
≈ £922.85  |  ≈ $1,211.72
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0056559 IR9112/710 AC230V IT network monitor
Datasheet:file_download Download
Lieske Part No.:1312823
Mfg Part No: 0056559
UPC/EAN: 4030641565596
Weight:0.49 kg
Type:IR9112/710 AC230V
Graduated prices net
From piecesPrice per pieces
21.086,03 EUR
41.069,49 EUR
61.052,95 EUR
81.036,42 EUR

Product information for Dold 0056559:

The Dold IR9112/710 AC230V is an IT network monitor, specifically designed for monitoring IT systems in medical rooms. It provides continuous monitoring of current, temperature, and insulation resistance in IT networks to ensure electrical safety in critical applications. The device is certified according to standards IEC/EN 60255-1 and IEC/EN 61557-8, as well as regulations for medical rooms as per IEC 60364-7-710 and DIN VDE 0100-710. It is designed for pure alternating and rotating current networks with a rated voltage of AC 0 to 300 V and a frequency of 10 to 1000 Hz.

Applications
This IT network monitor is primarily intended for medical facilities where high electrical safety and reliability are required. It monitors IT isolation transformers used in medical IT networks, providing early alarm in case of faults or malfunctions. The device is installed in installation distributors, with a width of 105 mm enabling integration into standard switchboards.

Functions and Equipment in Detail
The device features three integrated monitoring systems: current monitoring, temperature monitoring, and insulation monitoring. The current monitoring detects currents in the range of 5 to 50 A, using an external current transformer (50/5 A) to adapt to various isolation transformers (3.15 to 8 kVA). The pickup value is adjustable from 0.1 to 1 IN, the hysteresis is fixed at 4 %, and the switching delay is variable. When the pickup value is exceeded, a red LED („> I“) lights up, and the associated changeover contacts switch to the rest position.

The temperature monitoring detects overtemperatures and wire breaks in the sensor circuit. Up to six thermistors (according to DIN 44081/44082) can be connected to inputs P1/P2. When the pickup value is reached or the sensor circuit is interrupted, the changeover contacts (11-12-14, 21-22-24) switch to the rest position, and a red LED indicates the fault.

The insulation monitoring measures the insulation resistance of the IT network against earth between terminals L/L’ and PE/PE’. The pickup value for earth fault is fixed at 50 kΩ. When this value is undershot or the measurement circuit is interrupted, the changeover contacts (51-52-54, 61-62-64) switch to the rest position, and the red LEDs „AL“ (insulation fault) or „MK“ (measurement circuit interruption) light up.

Technology Explained Simply
The device operates with an auxiliary voltage of AC 230 V and is designed for use in installation distributors. Monitoring is performed via three independent channels, each equipped with LED indicators and 2 changeover contacts. The LED chain enables visual indication of the current insulation status. The functions are designed to respond quickly and reliably to faults, ensuring safety in medical operations. Programming is done via a reset and test button, with additional external buttons optionally connectable. Fault memory storage is optionally programmable.

Compatibility and Accessories
The device is designed for use with IT isolation transformers in the power range of 3.15 to 8 kVA. It can be combined with external current transformers (50/5 A) and thermistors (according to DIN 44081/44082). The test and alarm combination UP 5862 can be optionally connected, requiring a width of 140 mm. Terminals L/L’ and PE/PE’ are intended for connecting the IT network cables, with connections made at different points to reliably detect interruptions in the measurement circuit.

Mounting and Installation
Mounting is done in an installation distributor. Terminals L/L’ and PE/PE’ are intended for connection to the IT network. When connecting to a star point or center tap of the transformer, terminals L/L’ should preferably be connected to this point. Terminals L’ and PE’ should be connected with separate cables at different points in the IT network to reliably detect interruptions in the measurement circuit.

Operational Advantages
The device offers comprehensive monitoring of current, temperature, and insulation resistance in a single unit, reducing the number of required components. The clear LED display enables quick fault detection. The adjustable switching delay and hysteresis ensure reliable and disturbance-free operation. Compatibility with medical IT networks and certification according to relevant standards guarantee compliance with safety requirements in critical applications. The integrated reset and test button, along with the option to connect external buttons, facilitate maintenance and testing of the system.

Technical data
ClassificationFor medically used rooms
Enclosure designDistribution board
IMD typeAC
Nominal voltage IT systemAC 0 - 300 V
Response value50 kΩ
Response value typeFixed
Width105 mm
TypeIR 9112/710
Earth fault indicatorYes
Variant
Auxiliary voltageAC 230 V
Contact equipping2 changeover contacts
VariantFor rooms used for medical purposes


Product data sheet
Datasheet for Dold 0056559, EAN: 4030641565596
